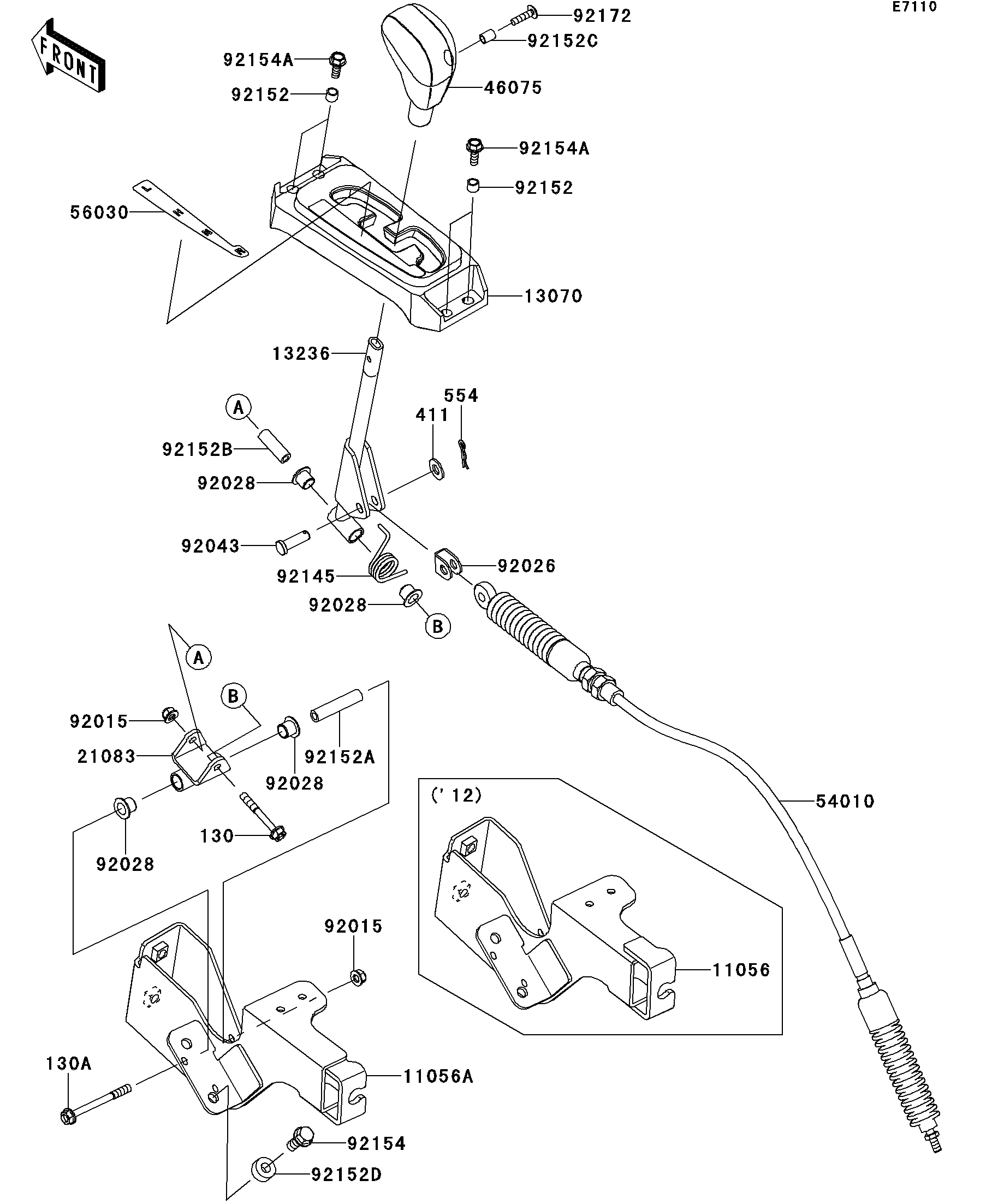

2013 TERYX4™ 750 4x4 (Canadian) - Control

DOWNLOAD PDF
SELECT A NEW PART
11056A
130
13070
130A
13236
21083
411
46075
54010
554
56030
92015
92015
92026
92028
92028
92028
92028
92043
92145
92152
92152
92152A
92152B
92152C
92152D
92154
92154A
92154A
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056A 11056-2203 1
BOLT-FLANGED,6X45 130 130CA0645 1
GUIDE,SHIFT GATE 13070 13070-0711 1
BOLT-FLANGED,6X65 130A 130CA0665 1
LEVER-COMP,SHIFT 13236 13236-0710 1
ARM 21083 21083-0710 1
WASHER-PLAIN 411 411AA0800 1
GRIP 46075 46075-0569 1
CABLE,SHIFT 54010 54010-0583 1
PIN-SNAP 554 554DA0800 1
LABEL,SHIFT POSITION 56030 56030-0727 1
NUT,LOCK,FLANGED,6MM 92015 92015-1675 2
SPACER 92026 92026-0074 1
BUSHING 92028 92028-1507 4
PIN 92043 92043-0053 1
SPRING 92145 92145-0832 1
COLLAR 92152 92152-1332 4
COLLAR,6.2X10X47 92152A 92152-1517 1
COLLAR,6.2X10X30 92152B 92152-1518 1
COLLAR,5.6X8X10.5 92152C 92152-1545 1
COLLAR,8.2X18X8 92152D 92152-1553 2
BOLT,FLANGED,8X20 92154 92154-0100 2
BOLT,FLANGED,6X16 92154A 92154-0887 4
SCREW,5X20 92172 92172-2081 1
