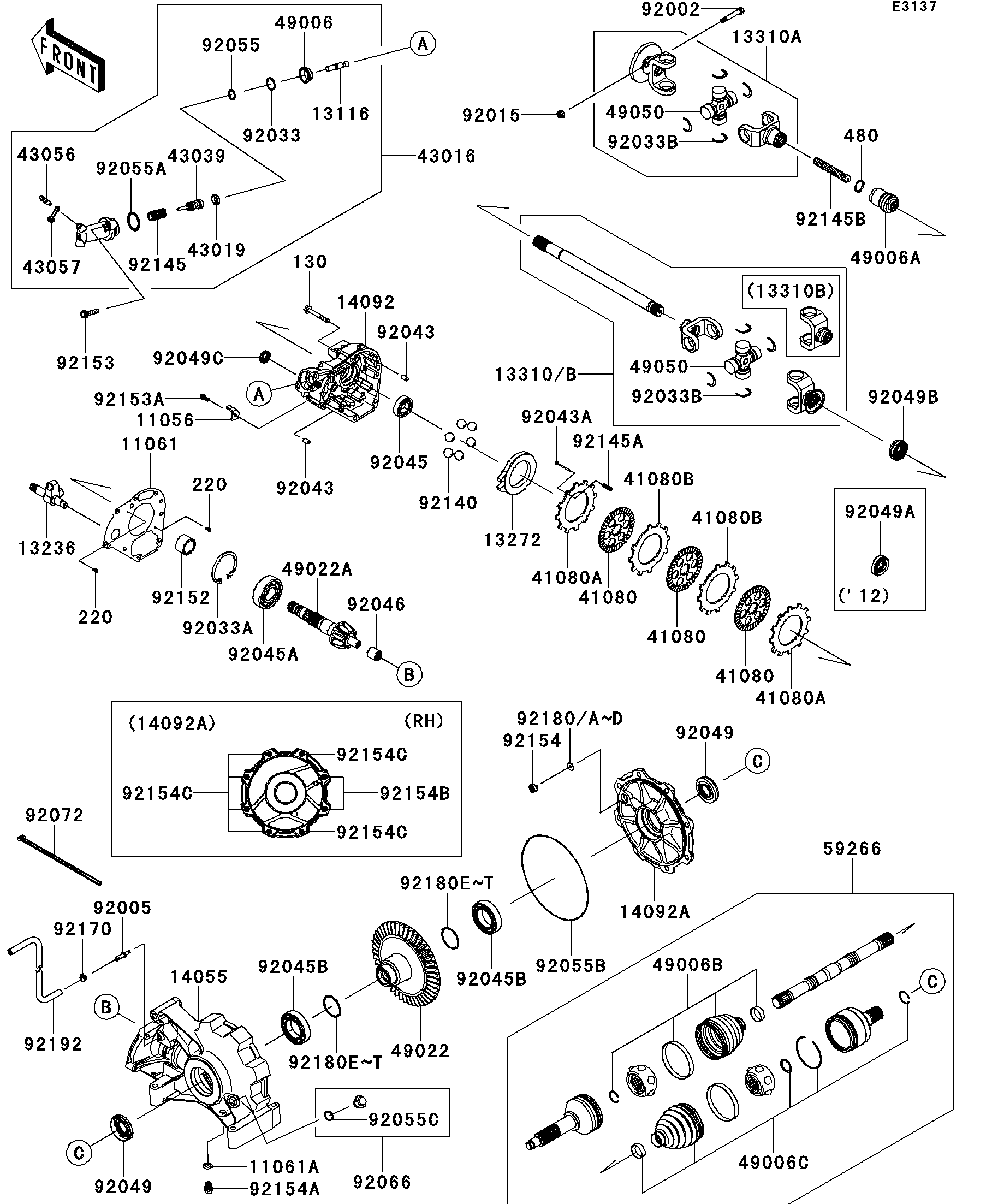

2013 TERYX4™ 750 4x4 (Canadian) - Drive Shaft-Rear

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11056
11061
11061
11061
11061A
11061A
11061A
13116
13116
13116
13236
13236
13236
13272
13272
13272
13310
13310
13310
13310A
13310A
13310A
14055
14055
14055
14092
14092
14092
14092A
14092A
14092A
41080
41080
41080
41080
41080
41080
41080
41080
41080
41080A
41080A
41080A
41080A
41080A
41080A
41080B
41080B
41080B
41080B
41080B
41080B
43016
43016
43016
43019
43019
43019
43039
43039
43039
43056
43056
43056
43057
43057
43057
49006
49006
49006
49006A
49006A
49006A
49006B
49006B
49006B
49006C
49006C
49006C
49022
49022
49022
49022A
49022A
49022A
49050
49050
49050
49050
49050
49050
59266
59266
59266
92002
92002
92002
92005
92005
92005
92015
92015
92015
92033
92033
92033
92033A
92033A
92033A
92033B
92033B
92033B
92033B
92033B
92033B
92043
92043
92043
92043
92043
92043
92043A
92043A
92043A
92045
92045
92045
92045A
92045A
92045A
92045B
92045B
92045B
92045B
92045B
92045B
92046
92046
92046
92049
92049
92049
92049
92049
92049
92049B
92049B
92049B
92049C
92049C
92049C
92055
92055
92055
92055A
92055A
92055A
92055B
92055B
92055B
92055C
92055C
92055C
92066
92066
92066
92072
92072
92072
92140
92140
92140
92145
92145
92145
92145A
92145A
92145A
92145B
92145B
92145B
92152
92152
92152
92153
92153
92153
92153A
92153A
92153A
92154
92154
92154
92154A
92154A
92154A
92154B
92154B
92154B
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92170
92170
92170
92180
92180
92180
92180A
92180A
92180A
92180B
92180B
92180B
92180C
92180C
92180C
92180D
92180D
92180D
92180E
92180E
92180E
92180E
92180E
92180E
92180F
92180F
92180F
92180F
92180F
92180F
92180G
92180G
92180G
92180G
92180G
92180G
92180H
92180H
92180H
92180H
92180H
92180H
92180I
92180I
92180I
92180I
92180I
92180I
92180J
92180J
92180J
92180J
92180J
92180J
92180K
92180K
92180K
92180K
92180K
92180K
92180L
92180L
92180L
92180L
92180L
92180L
92180M
92180M
92180M
92180M
92180M
92180M
92180N
92180N
92180N
92180N
92180N
92180N
92180O
92180O
92180O
92180O
92180O
92180O
92180P
92180P
92180P
92180P
92180P
92180P
92180Q
92180Q
92180Q
92180Q
92180Q
92180Q
130
130
130
220
220
220
220
220
220
480
480
480
92180R
92180R
92180R
92180R
92180R
92180R
92180S
92180S
92180S
92180S
92180S
92180S
92180T
92180T
92180T
92180T
92180T
92180T
92192
92192
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-1447 1
GASKET,FR COVER 11061 11061-0270 1
GASKET,DRAIN 11061A 11061-0759 1
ROD-PUSH 13116 13116-0026 1
LEVER-COMP,BRAKE 13236 13236-0706 1
PLATE,CAM 13272 13272-1203 1
SHAFT-ASSY,GEAR ASSY SIDE 13310 13310-0029 1
SHAFT-ASSY,ENGINE SIDE 13310A 13310-0555 1
CASE-GEAR 14055 14055-0599 1
COVER,FR 14092 14092-0128 1
COVER 14092A 14092-0846 1
DISC,FRICTION 41080 41080-1482 3
DISC,PRESSURE 41080A 41080-1483 2
DISC,SEPARATER 41080B 41080-1484 2
CYLINDER-MASTER 43016 43016-0556 1
CUP-BRAKE 43019 43019-0002 1
PISTON-BRAKE 43039 43039-0006 1
BREATHER-BRAKE 43056 43056-1056 1
CAP-BREATHER 43057 43057-1001 1
BOOT 49006 49006-0072 1
BOOT 49006A 49006-0089 1
BOOT,OUTSIDE 49006B 49006-0556 2
BOOT,INSIDE 49006C 49006-0557 2
GEAR-BEVEL,44T 49022 49022-0567 1
GEAR-BEVEL,10T 49022A 49022-0568 1
SPIDER 49050 49050-0027 2
JOINT-BALL,REAR 59266 59266-0703 2
BOLT 92002 92002-1221 1
FITTING,BREATHER 92005 92005-0729 1
NUT,8MM 92015 92015-1432 1
RING-SNAP 92033 92033-0055 1
RING-SNAP 92033A 92033-0713 1
RING-SNAP 92033B 92033-0718 8
PIN,8X14 92043 92043-1567 2
PIN,3X35 92043A 92043-1617 2
BEARING-BALL,#6005 92045 92045-0077 1
BEARING-BALL,6306 92045A 92045-0721 1
BEARING-BALL,TMB009 92045B 92045-0728 2
BEARING-NEEDLE,16NQ2322A 92046 92046-0606 1
SEAL-OIL,33X60X11 92049 92049-0721 2
SEAL-OIL,25X45X9.5 92049B 92049-0739 1
SEAL-OIL,TC17X28X6 92049C 92049-1537 1
RING-O 92055 92055-0146 1
RING-O 92055A 92055-0147 1
RING-O 92055B 92055-0722 1
RING-O,20X2.5 92055C 92055-0754 1
PLUG 92066 92066-0728 1
BAND,L=250 92072 92072-1237 1
BALL,D/O#12 92140 92140-1064 6
SPRING 92145 92145-0882 1
SPRING,RR BRAKE 92145A 92145-1301 2
SPRING,PROPELLER SHAFT 92145B 92145-1304 1
COLLAR 92152 92152-1525 1
BOLT,FLANGED,8X40 92153 92153-1727 2
BOLT,FLANGED-SMALL,6X16 92153A 92153-1729 1
BOLT,BUTTON 92154 92154-0831 1
BOLT,DRAIN 92154A 92154-0832 1
BOLT,FLANGED,10X40 92154B 92154-0833 2
BOLT,FLANGED,10X40 92154C 92154-0834 6
CLAMP 92170 92170-2043 1
SHIM,T=1.3 92180 92180-0721 AR
SHIM,T=1.4 92180A 92180-0722 AR
SHIM,T=1.5 92180B 92180-0723 1
SHIM,T=1.6 92180C 92180-0724 AR
SHIM,T=1.7 92180D 92180-0725 AR
SHIM,T=0.965 92180E 92180-0738 AR
SHIM,T=0.991 92180F 92180-0739 AR
SHIM,T=1.016 92180G 92180-0740 AR
SHIM,T=1.041 92180H 92180-0741 AR
SHIM,T=1.067 92180I 92180-0742 AR
SHIM,T=1.092 92180J 92180-0743 2
SHIM,T=1.118 92180K 92180-0744 AR
SHIM,T=1.143 92180L 92180-0745 AR
SHIM,T=1.168 92180M 92180-0746 AR
SHIM,T=1.194 92180N 92180-0747 AR
SHIM,T=1.219 92180O 92180-0748 AR
SHIM,T=1.245 92180P 92180-0749 AR
SHIM,T=1.270 92180Q 92180-0750 AR
BOLT-FLANGED,8X60 130 130CA0860 8
SCREW-PAN-CROS,4X8 220 220AA0408 2
CIRCLIP-TYPE-C,25MM 480 480J2500 1
SHIM,T=1.295 92180R 92180-0751 AR
SHIM,T=1.321 92180S 92180-0752 AR
SHIM,T=1.346 92180T 92180-0753 AR
TUBE,BREATHER 92192 92192-1041 1
