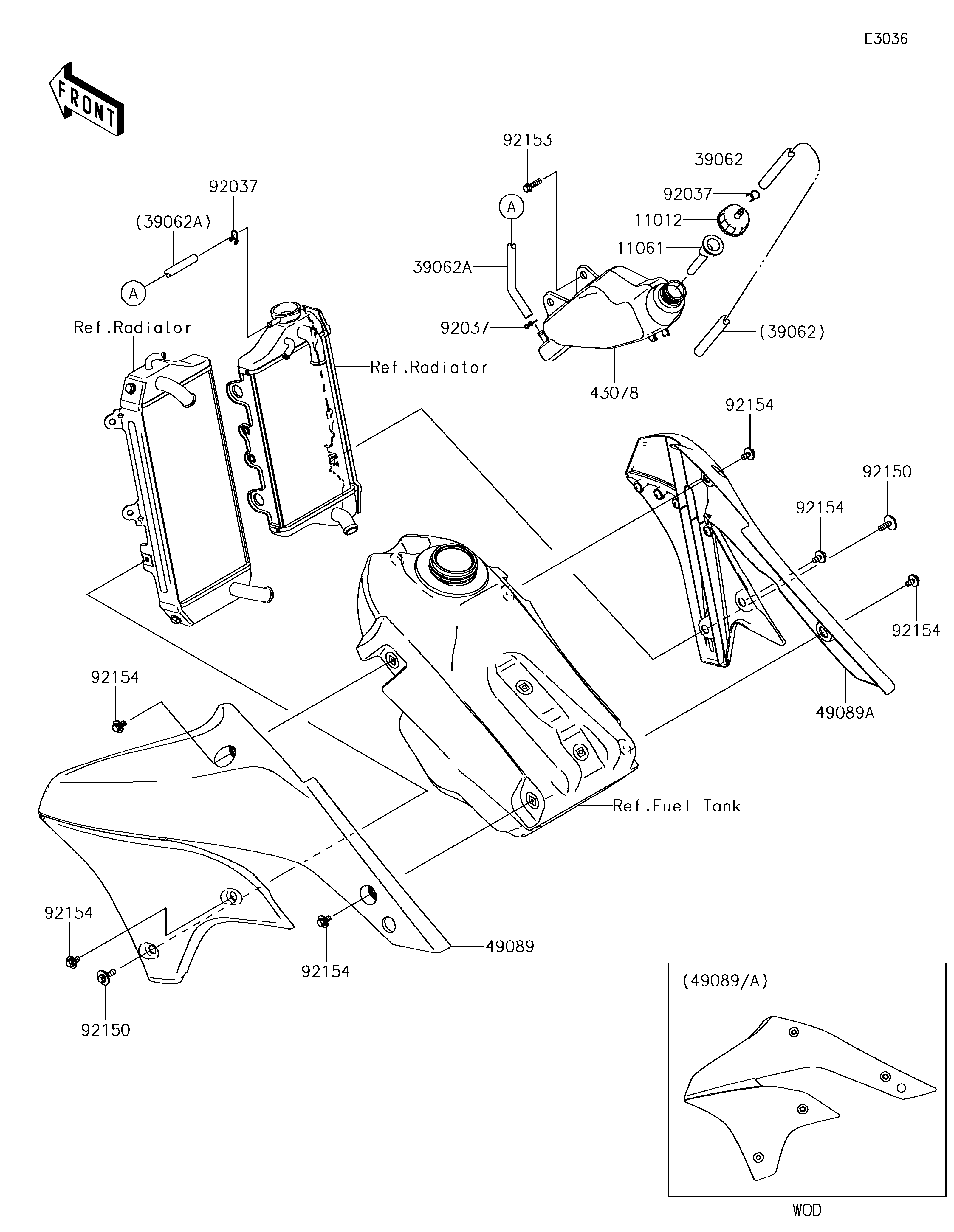

Parts Diagrams |
11012
11061
39062
39062A
43078
49089
49089A
92037
92037
92037
92150
92150
92153
92154
92154
92154
92154
92154
92154
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-1854 | 1 | ||
| GASKET | 11061 | 11061-0043 | 1 | ||
| HOSE-COOLING,OVERFLOW | 39062 | 39062-0187 | 1 | ||
| HOSE-COOLING,RESERVOIR-RAD | 39062A | 39062-0235 | 1 | ||
| RESERVOIR | 43078 | 43078-0039 | 1 | ||
| SHROUD-ENGINE,LH,UP GRN+LO EBO | 49089 | 49089-0042-25M | 1 | ||
| SHROUD-ENGINE,RH,UP GRN+LO EBO | 49089A | 49089-0055-25M | 1 | ||
| CLAMP,TUBE | 92037 | 92037-147 | 3 | ||
| BOLT,6X20 | 92150 | 92150-1801 | 2 | ||
| BOLT,6X20 | 92153 | 92153-0502 | 2 | ||
| BOLT,FLANGED,6X12 | 92154 | 92154-1931 | 6 |
| CAP | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,OVERFLOW | |
| REF # | 39062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,RESERVOIR-RAD | |
| REF # | 39062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RESERVOIR | |
| REF # | 43078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHROUD-ENGINE,LH,UP GRN+LO EBO | |
| REF # | 49089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHROUD-ENGINE,RH,UP GRN+LO EBO | |
| REF # | 49089A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X12 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
