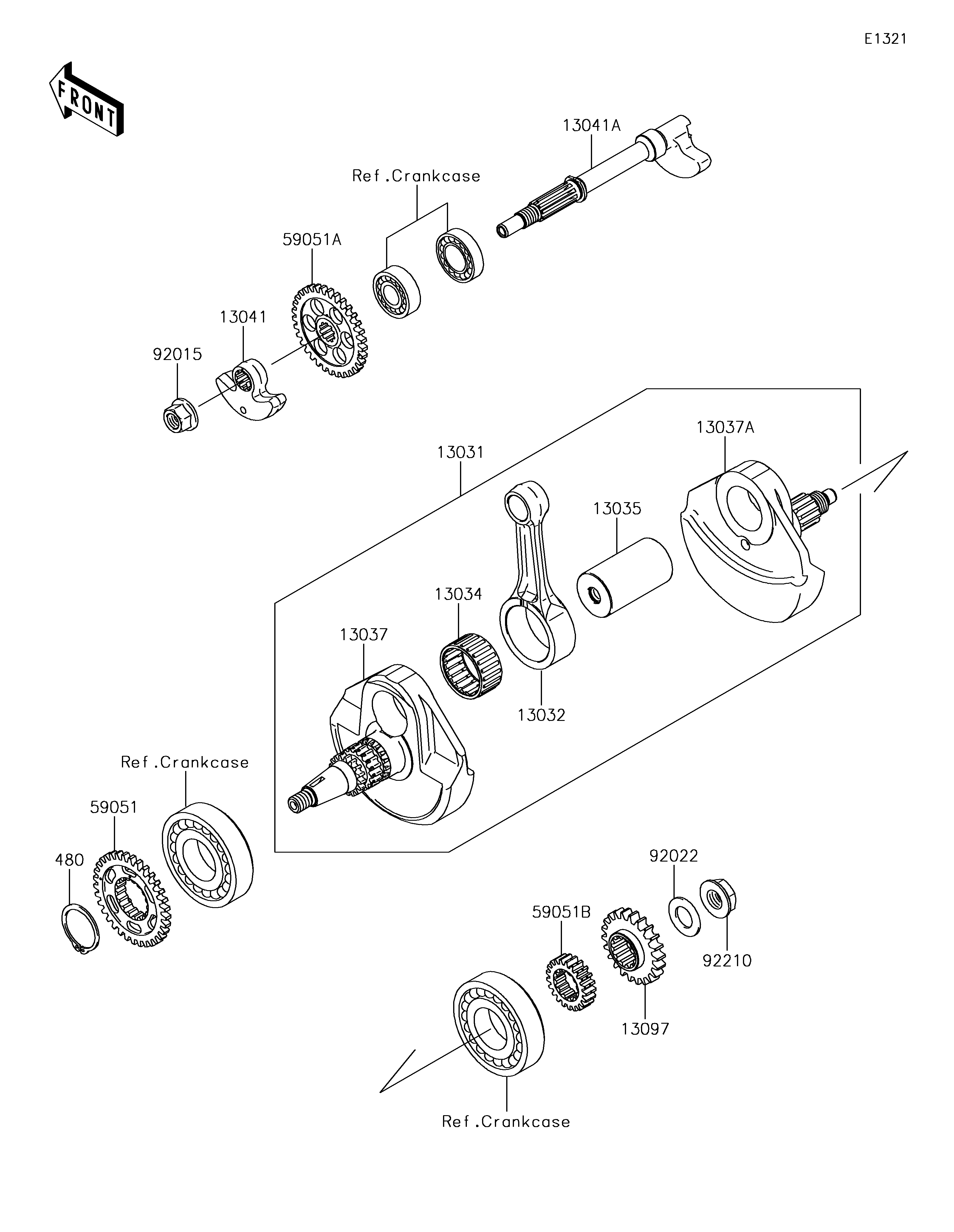

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CRANKSHAFT-COMP | 13031 | 13031-0105 | 1 | ||
| ROD-CONNECTING,RED | 13032 | 13032-0064 | 1 | ||
| BEARING-BIG END,B4 | 13034 | 13034-0006 | 1 | ||
| PIN-CRANK | 13035 | 13035-0013 | 1 | ||
| CRANKSHAFT,LH | 13037 | 13037-0110 | 1 | ||
| CRANKSHAFT,RH | 13037A | 13037-0111 | 1 | ||
| BALANCER,WEIGHT | 13041 | 13041-0023 | 1 | ||
| BALANCER,SHAFT | 13041A | 13041-0024 | 1 | ||
| GEAR-PRIMARY SPUR,22T | 13097 | 13097-0013 | 1 | ||
| CIRCLIP-TYPE-C,32MM | 480 | 480J3200 | 1 | ||
| GEAR-SPUR,BALANCER DRIVE,33T | 59051 | 59051-0070 | 1 | ||
| GEAR-SPUR,BALANCER DRIVEN,33T | 59051A | 59051-0071 | 1 | ||
| GEAR-SPUR,OIL PUMP DRIVE,21T | 59051B | 59051-0075 | 1 | ||
| NUT,12MM | 92015 | 92015-1426 | 1 | ||
| WASHER,16.3X29X1.75 | 92022 | 92022-1356 | 1 | ||
| NUT,LEFT HANDED,16MM | 92210 | 92210-0350 | 1 |
