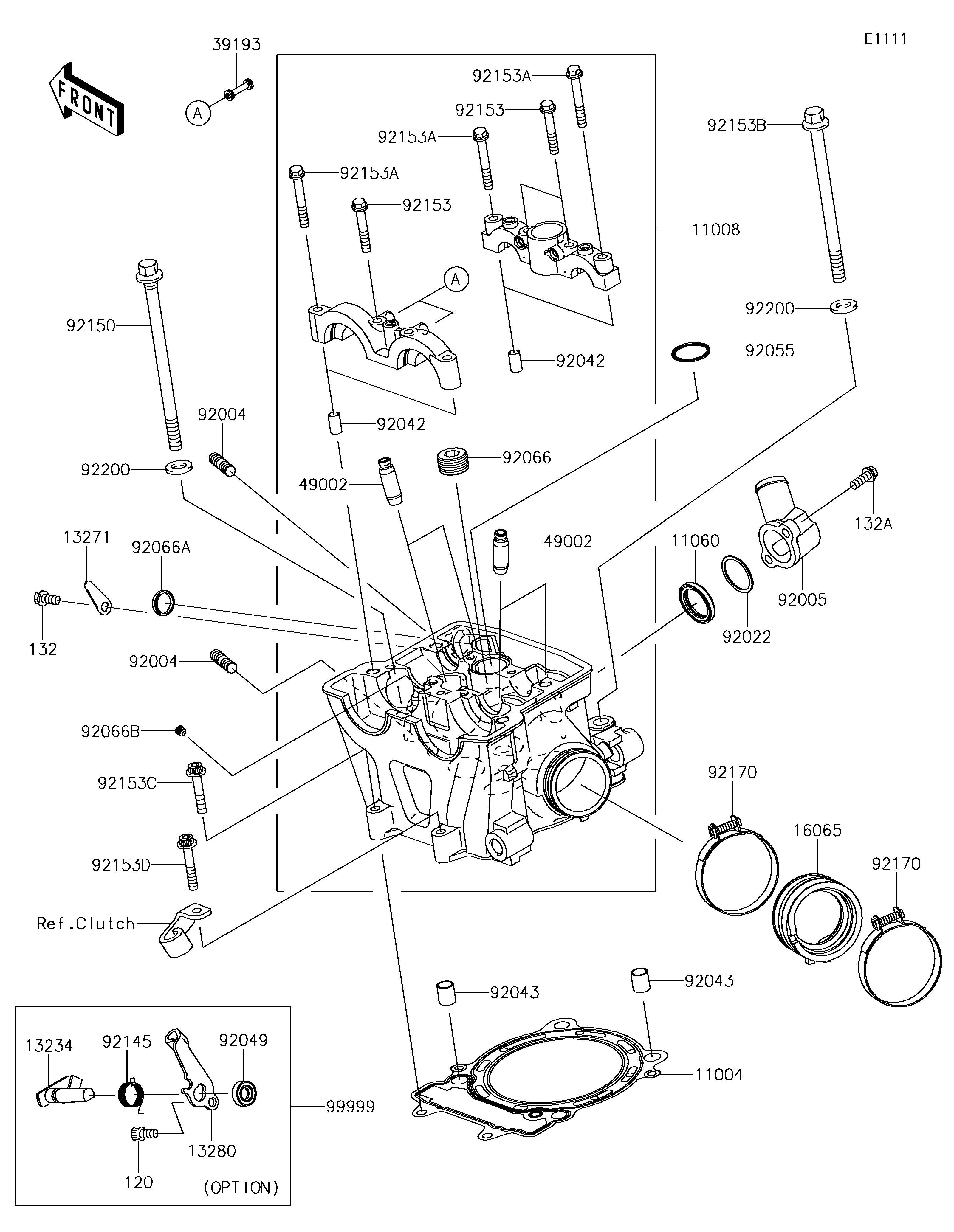

2018 KLX450R - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
11060
120
132
13234
13271
13280
132A
16065
39193
49002
49002
92004
92004
92005
92022
92042
92042
92043
92043
92049
92055
92066
92066A
92066B
92145
92150
92153
92153
92153A
92153A
92153A
92153B
92153C
92153D
92170
92170
92200
92200
99999
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-0088 1
HEAD-COMP-CYLINDER 11008 11008-0140 1
GASKET,THERMOSTAT 11060 11060-1300 1
BOLT-SOCKET,6X12 120 120CA0612 1 (OPTION)
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1
SHAFT-COMP,DECOMP 13234 13234-0009 1 (OPTION)
PLATE 13271 13271-0675 1
HOLDER,DECOMP 13280 13280-0038 1 (OPTION)
BOLT-FLANGED-SMALL,6X16 132A 132BA0616 2
HOLDER-CARBURETOR 16065 16065-0050 1
PIPE-OIL 39193 39193-0027 2
GUIDE-VALVE 49002 49002-0007 4
STUD,8X22 92004 92004-0025 2
FITTING 92005 92005-0821 1
WASHER,25.3X30X1 92022 92022-161 1
PIN,DOWEL,6.3X8X14 92042 92042-007 4
PIN,10.1X12X14 92043 92043-4009 2
SEAL-OIL 92049 92049-1196 1 (OPTION)
RING-O,23.5X2.0 92055 92055-0046 1
PLUG,PT1/2X12.5 92066 92066-0002 1
PLUG,4X18 92066A 92066-0024 1
PLUG,6X6 92066B 92066-0068 1
SPRING 92145 92145-0048 1 (OPTION)
BOLT,L=140 92150 92150-1935 2
BOLT,6X38 92153 92153-0338 4
BOLT,6X45 92153A 92153-0339 4
BOLT,FLANGED-SMALL,10X127 92153B 92153-1001 2
BOLT,SOCKET,6X35 92153C 92153-1556 1
BOLT,SOCKET,6X40 92153D 92153-1725 1
CLAMP 92170 92170-1448 2
WASHER,10.5X19X2.3 92200 92200-0114 4
KIT.,MANUAL DECOMP 99999 99999-0023 1 (OPTION)
