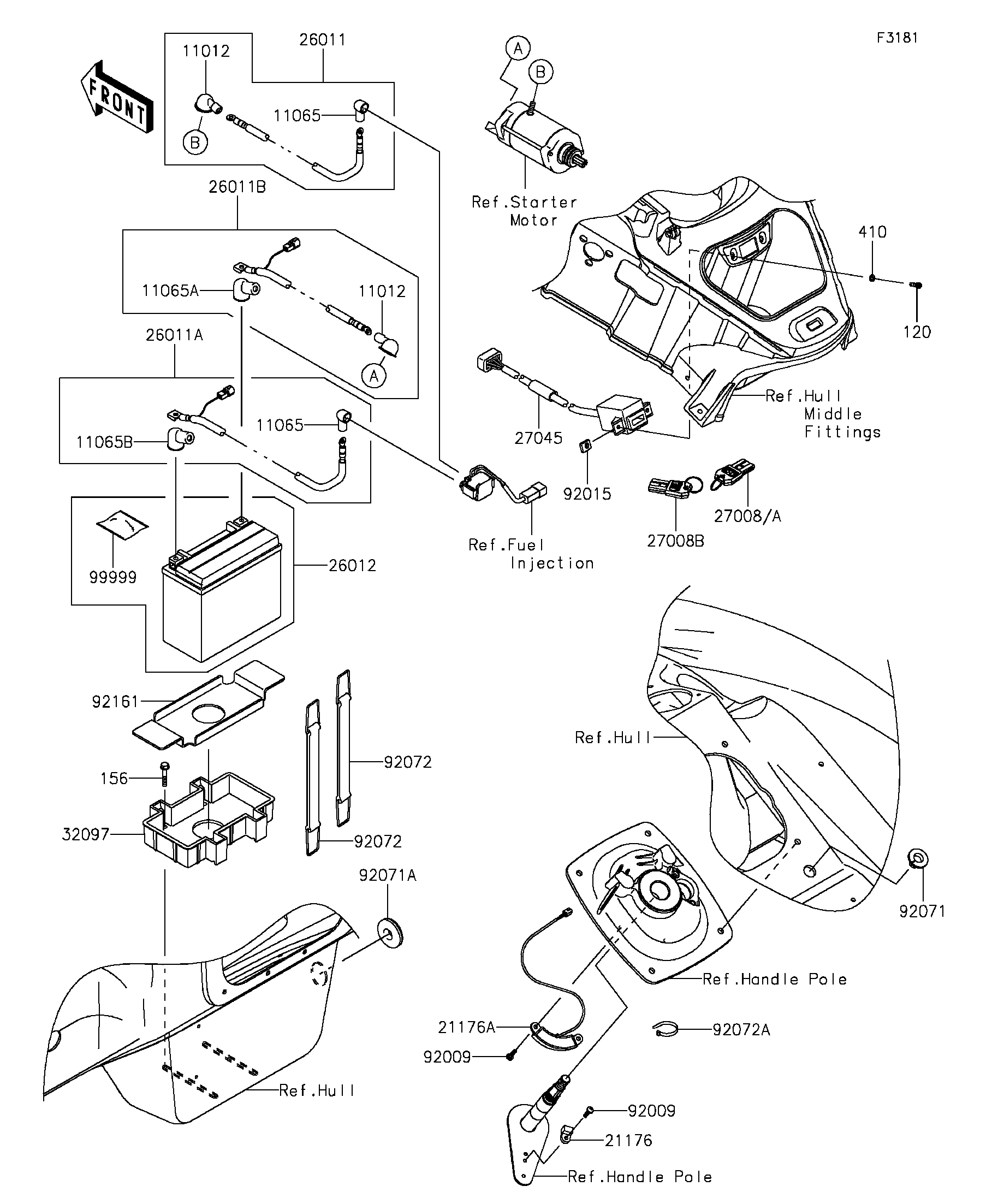

2012 JET SKI® ULTRA® LX - Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11065
11065
11065A
11065B
120
156
21176
21176A
26011
26011A
26011B
26012
27008A
27008B
27045
32097
410
92009
92009
92015
92071
92071A
92072
92072
92072A
92161
99999
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-3004 2
CAP 11065 11065-3716 2
CAP,TERMINAL 11065A 11065-3729 1
CAP,TERMINAL 11065B 11065-3732 1
BOLT-SOCKET,5X16 120 120R0516 2
BOLT-WP,6X35 156 156R0635 4
SENSOR,MAGNET 21176 21176-3746 1
SENSOR,HOLE IC 21176A 21176-3748 1
WIRE-LEAD,RELAY-STARTER 26011 26011-0723 1
WIRE-LEAD,RELAY-BATTERY(+) 26011A 26011-0749 1
WIRE-LEAD,BATTERY(-)-STARTER 26011B 26011-3915 1
BATTERY,YTX20L-BS,12V 18AH 26012 26012-3730 1
FPO MODE KEY 27008A 27008-3767 1
SLO MODE KEY 27008B 27008-3768 1
SWITCH-ASSY 27045 27045-0560 1
CASE-BATTERY 32097 32097-3709 1
W-PLAIN-S,5MM 410 410S0500 2
SCREW,5X16 92009 92009-3868 3
NUT,CLIP,5MM 92015 92015-3830 2
GROMMET 92071 92071-3826 1
GROMMET 92071A 92071-3840 1
BAND,340X22 92072 92072-3805 2
BAND,L=100.08 92072A 92072-3882 1
DAMPER,BATTERY CASE 92161 92161-1388 1
BOLT NUT KIT 99999 99999-0311 1
