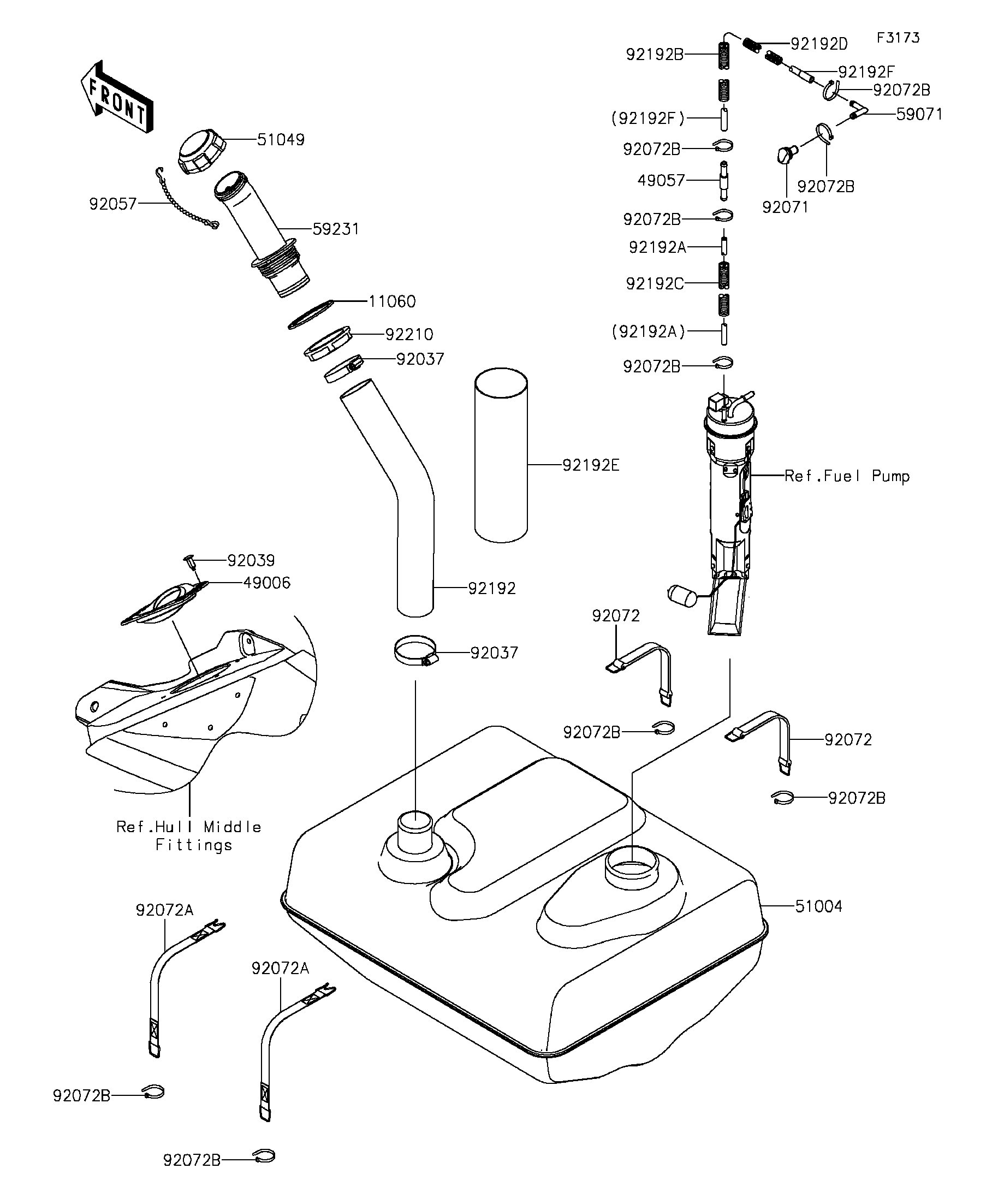

2012 JET SKI® ULTRA® LX - Fuel Tank(KCF/KDF)

DOWNLOAD PDF
SELECT A NEW PART
11060
49006
49057
51004
51049
59071
59231
92037
92037
92039
92057
92071
92072
92072
92072A
92072A
92072B
92072B
92072B
92072B
92072B
92072B
92072B
92072B
92072B
92192
92192A
92192B
92192C
92192D
92192E
92192F
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL-FILLER 11060 11060-3780 1
BOOT 49006 49006-3719 1
VALVE-RELIEF 49057 49057-3707 1
TANK-FUEL 51004 51004-3749 1
CAP-TANK,FUEL 51049 51049-0713 1
JOINT 59071 59071-3736 1
FILLER,FUEL TANK 59231 59231-3727 1
CLAMP 92037 92037-3738 2
RIVET 92039 92039-3788 4
CHAIN,COVER,L=100 92057 92057-3704 1
GROMMET 92071 92071-3841 1
BAND 92072 92072-3845 2
BAND 92072A 92072-3847 2
BAND,L=100.08 92072B 92072-3882 9
TUBE,FUEL TANK-FILLER 92192 92192-1044 1
TUBE,5.8X11X100 92192A 92192-1103 1
TUBE,CORRUGATED,15.3X20.6X650 92192B 92192-3748 1
TUBE,CORRUGATED,L=120 92192C 92192-3749 1
TUBE,CORRUGATED,L=350 92192D 92192-3788 1
TUBE,86X89X300 92192E 92192-3822 1
TUBE,5.8X10.8X1000 92192F 92192-3849 1
NUT,FUEL FILLER 92210 92210-3802 1
