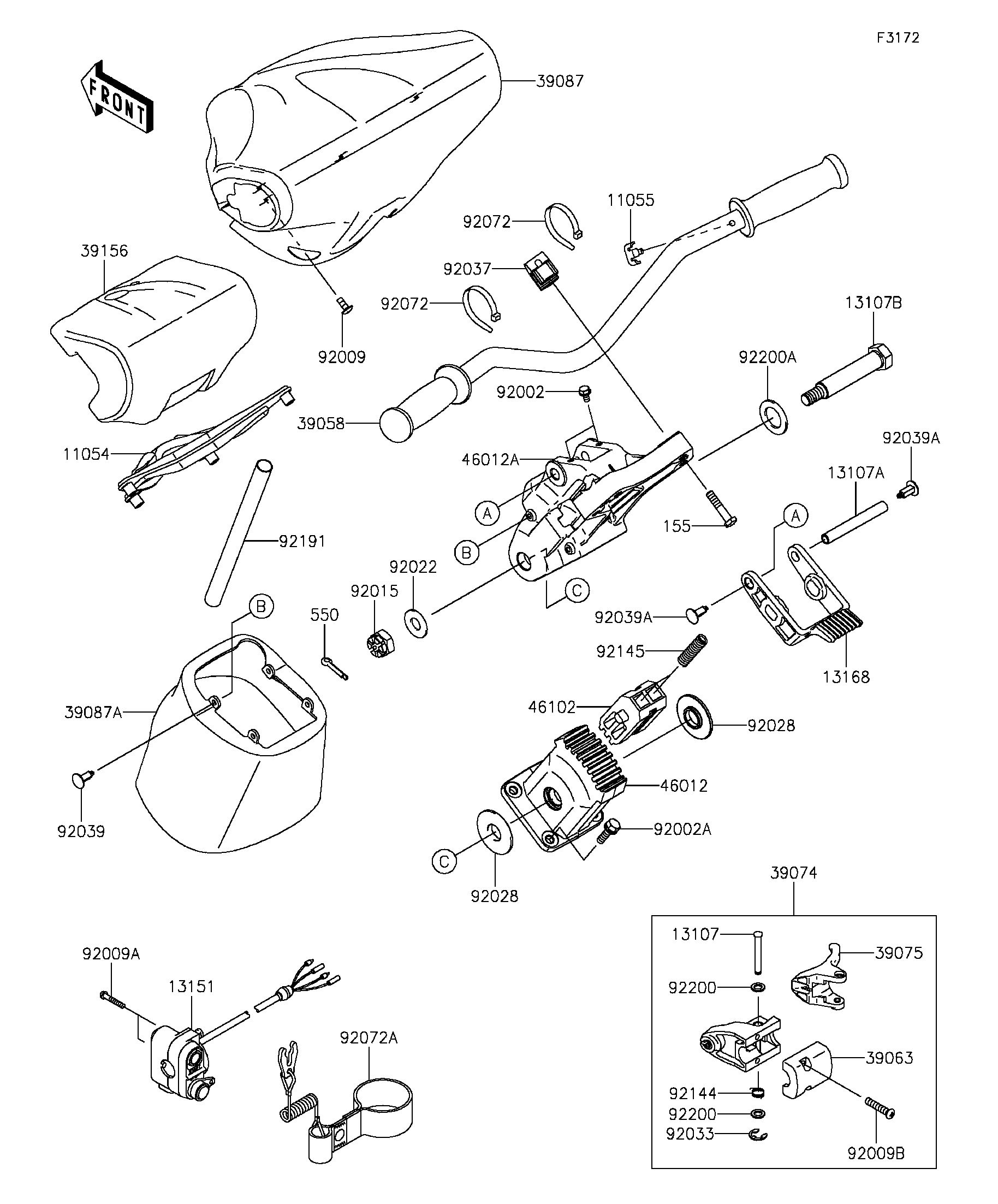

2012 JET SKI® ULTRA® LX - Handlebar(KCF-KEF)

DOWNLOAD PDF
SELECT A NEW PART
11054
11055
13107
13107A
13107B
13151
13168
155
39058
39063
39074
39075
39087
39087A
39156
46012
46012A
46102
550
92002
92002A
92009
92009A
92009B
92015
92022
92028
92028
92033
92037
92039
92039A
92039A
92072
92072
92072A
92144
92145
92191
92200
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HANDLE PAD 11054 11054-3710 1
BRACKET,THROTTLE LEVER 11055 11055-3709 1
SHAFT 13107 13107-3740 1
SHAFT 13107A 13107-3795 1
SHAFT,HANDLE HOLDER PIVOT 13107B 13107-3803 1
SWITCH-COMP,STOP&START 13151 13151-3722 1
LEVER 13168 13168-3754 1
BOLT-WSP-SMALL,8X50 155 155R0850 4
HANDLE-COMP,F.BLACK 39058 39058-3744-6Z 1
HOUSING-CONTROL 39063 39063-3727 1
LEVER-ASSY-THROTTLE 39074 39074-3726 1
LEVER-THROTTLE 39075 39075-3714 1
PAD-HANDLE,F.BLACK 39087 39087-3735-6Z 1
PAD-HANDLE,F.BLACK 39087A 39087-3737-6Z 1
PAD,HANDLE 39156 39156-3851 1
HOLDER-HANDLE,LWR 46012 46012-3730 1
HOLDER-HANDLE,UPP 46012A 46012-3733 1
ROD,HANDLE POSITION 46102 46102-3733 1
PIN-COTTER,3X35 550 550S3035 1
BOLT,6X12 92002 92002-3763 2
BOLT,8X25 92002A 92002-3774 4
SCREW,6X20 92009 92009-3781 4
SCREW,5X30 92009A 92009-3836 2
SCREW,6X30 92009B 92009-3837 2
NUT,CASTLE,14MM 92015 92015-3805 1
WASHER,15X34X2.0 92022 92022-3738 1
BUSHING 92028 92028-3743 2
RING-SNAP 92033 92033-3723 1
CLAMP,HANDLEBAR 92037 92037-503 2
RIVET 92039 92039-3787 4
RIVET 92039A 92039-3788 2
BAND,L=188.85 92072 92072-0105 2
BAND,TETHER SWITCH 92072A 92072-3809 1
SPRING 92144 92144-3749 1
SPRING 92145 92145-3723 2
TUBE,22X24X200 92191 92191-3792 1
WASHER 92200 92200-3738 2
WASHER,21X34X2 92200A 92200-3802 1
