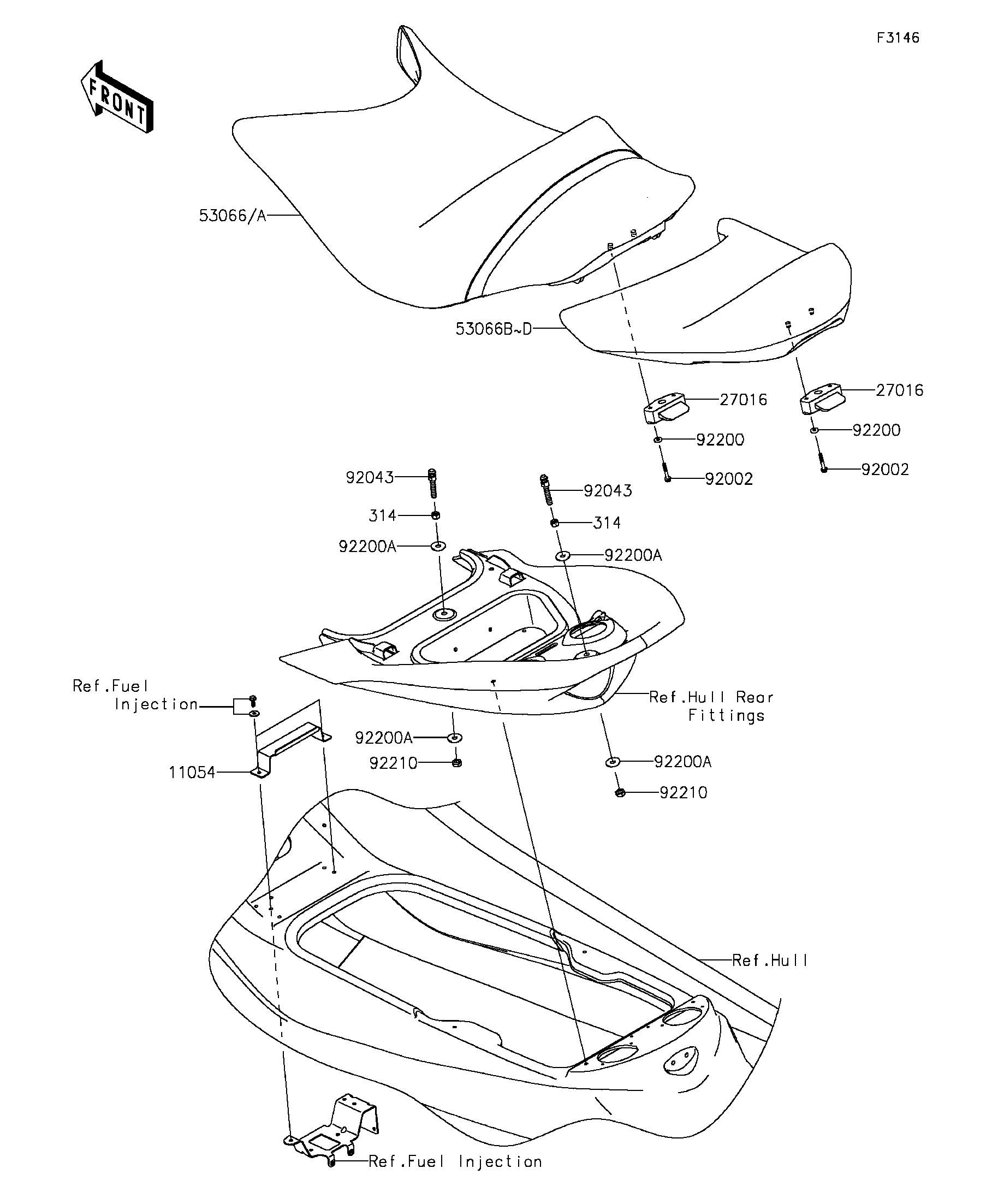

2012 JET SKI® ULTRA® LX - Seat

DOWNLOAD PDF
SELECT A NEW PART
11054
27016
27016
314
314
53066A
53066D
92002
92002
92043
92043
92200
92200
92200A
92200A
92200A
92200A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FRONT SEAT 11054 11054-3702 1
LOCK-ASSY,SEAT,FR&RR 27016 27016-3758 2
NUT-HEX-FINE,10MM 314 314R1000 2
SEAT,FR,LEATHER BLK+BAND BLK 53066A 53066-0380-12Y 1
SEAT-ASSY,RR,P.SILVER 53066D 53066-3720-12N 1
BOLT,6X40 92002 92002-3716 4
PIN 92043 92043-3763 2
WASHER,6.5X16X2.0 92200 92200-1543 4
WASHER 92200A 92200-3762 4
NUT,LOCK,10MM 92210 92210-3792 2
