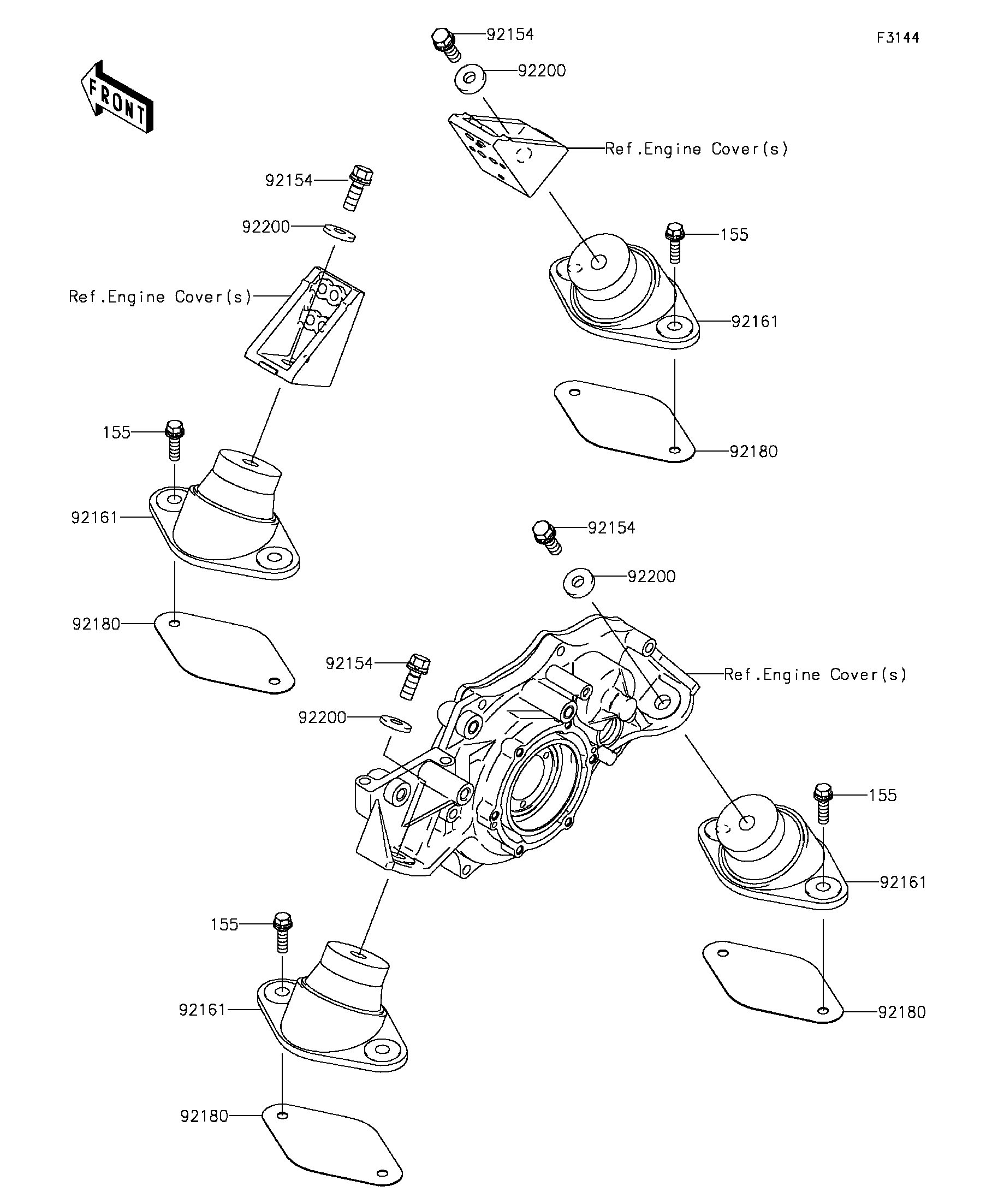

2012 JET SKI® ULTRA® LX - Engine Mount
155
155
155
155
92154
92154
92154
92154
92161
92161
92161
92161
92180
92180
92180
92180
92200
92200
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-WSP-SMALL,8X30 | 155 | 155R0830 | 8 | ||
| BOLT,WSP,10X30 | 92154 | 92154-3715 | 4 | ||
| DAMPER,ENGINE MOUNT | 92161 | 92161-3789 | 4 | ||
| SHIM,T=1.0 | 92180 | 92180-3716 | AR | ||
| WASHER,10.5X26X4 | 92200 | 92200-3798 | 4 |
| BOLT-WSP-SMALL,8X30 | |
| REF # | 155 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT,WSP,10X30 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,ENGINE MOUNT | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SHIM,T=1.0 | |
| REF # | 92180 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X26X4 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
