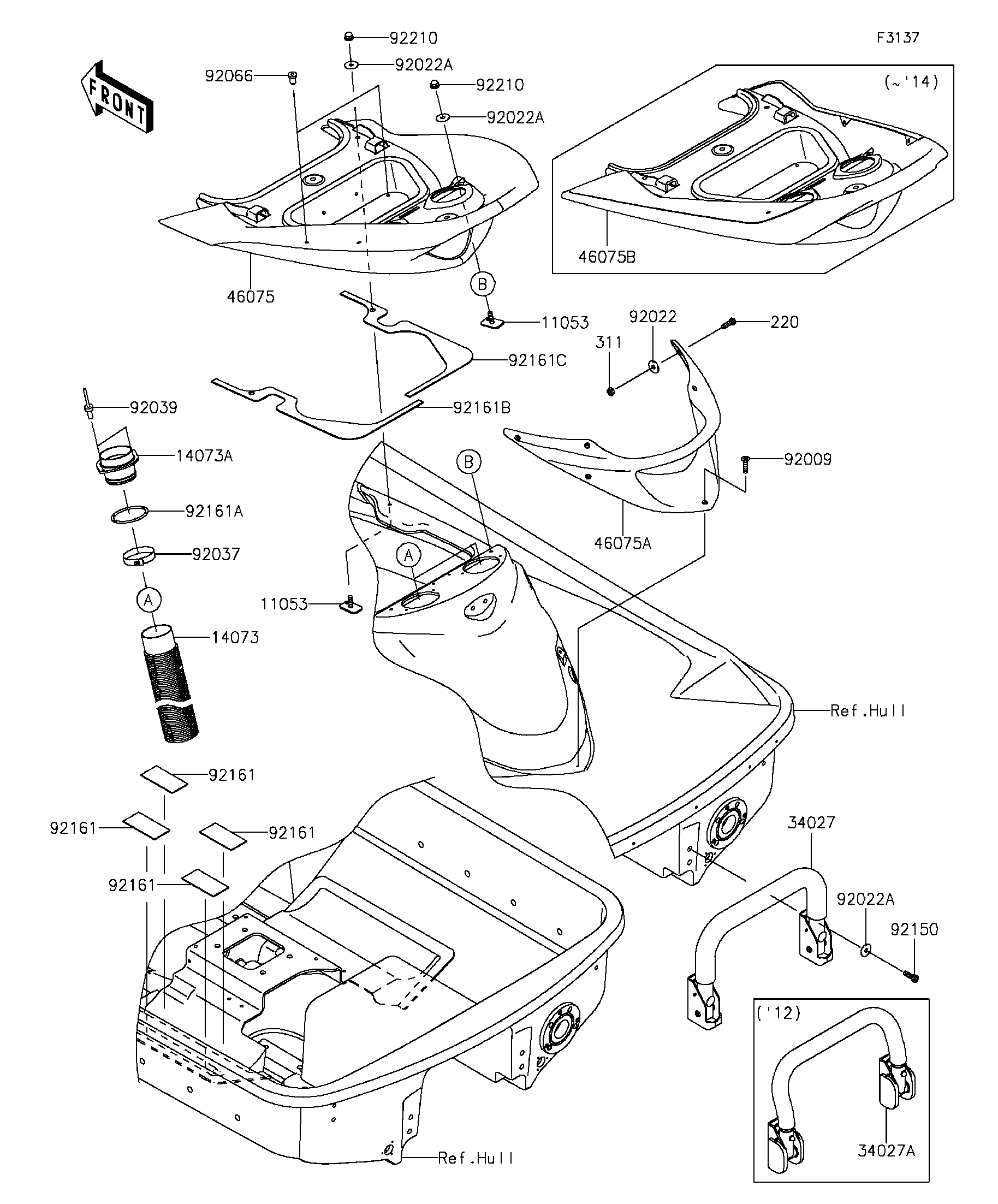

2012 JET SKI® ULTRA® LX - Hull Rear Fittings

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
14073
14073A
220
311
34027A
46075A
46075B
92009
92022
92022A
92022A
92022A
92037
92039
92066
92150
92161
92161
92161
92161
92161A
92161B
92161C
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11053 11053-3776 4
DUCT,L=800 14073 14073-3804 2
DUCT 14073A 14073-3805 2
SCREW-PAN-CROS,6X20 220 220R0620 6
NUT-HEX,6MM 311 311AA0600 6
STEP-ASSY 34027A 34027-3710 1
GRIP,HANDLE 46075A 46075-3765 1
GRIP,RR,UPP,EBONY 46075B 46075-3766-H8 1
SCREW,TAPPING,6X20 92009 92009-3842 1
WASHER,6.5X20X1.6 92022 92022-1557 6
WASHER,6.5X20X1.5 92022A 92022-3710 8
CLAMP 92037 92037-3738 2
RIVET 92039 92039-3775 4
PLUG 92066 92066-3773 2
BOLT,SOCKET,6X18 92150 92150-3775 4
DAMPER 92161 92161-3728 4
DAMPER 92161A 92161-3769 2
DAMPER 92161B 92161-3781 1
DAMPER 92161C 92161-3782 1
NUT,CAP,6MM 92210 92210-3785 4
