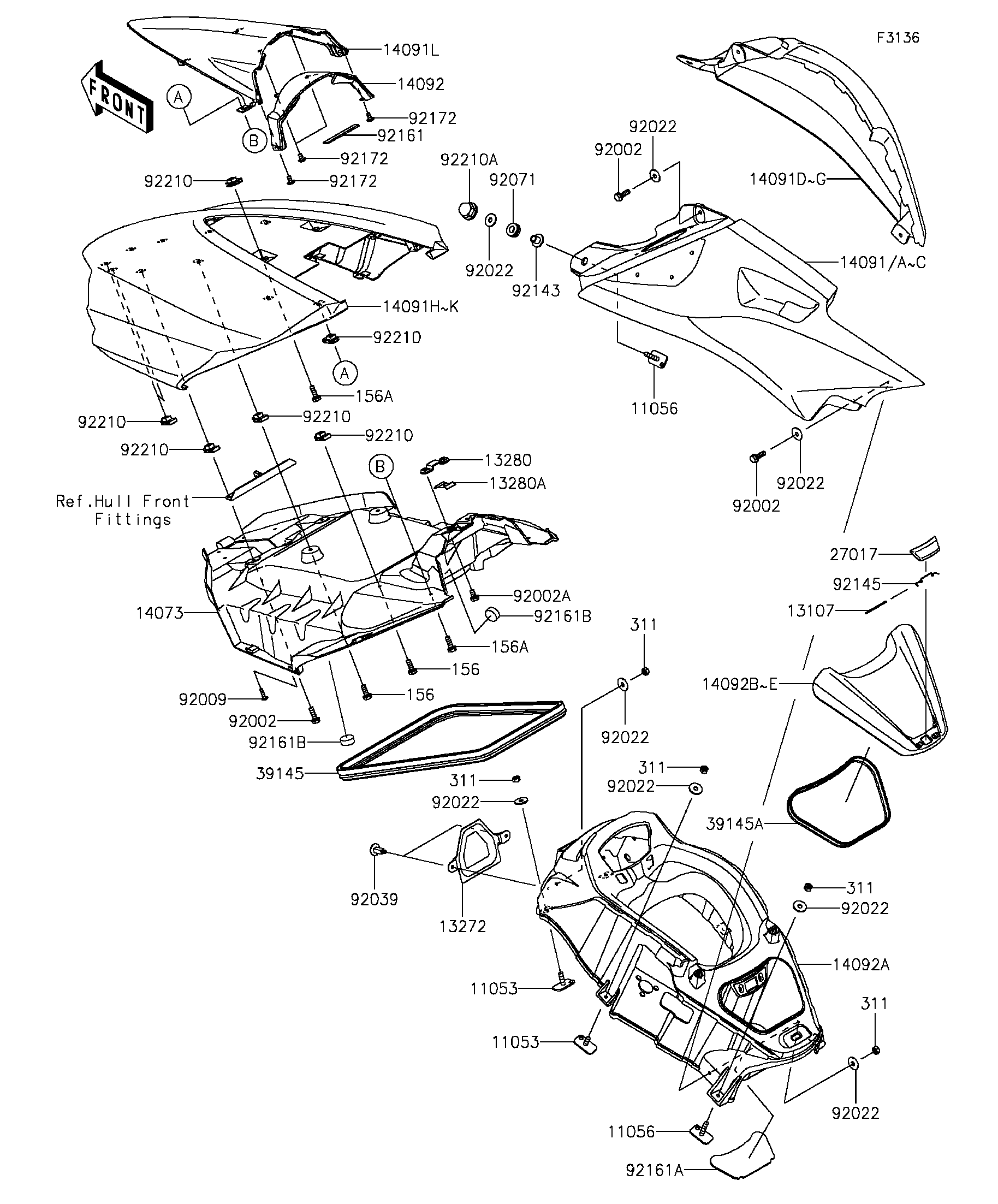

2012 JET SKI® ULTRA® LX - Hull Middle Fittings
11053
11053
11053
11053
11056
11056
11056
11056
13107
13107
13272
13272
13280
13280
13280A
13280A
14073
14073
14091
14091
14091D
14091D
14091I
14091I
14091L
14091L
14092
14092
14092A
14092A
14092B
14092B
27017
27017
39145
39145
39145A
39145A
92002
92002
92002
92002
92002
92002
92002A
92002A
92009
92009
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92039
92039
92071
92071
92143
92143
92145
92145
92161
92161
92161A
92161A
92161B
92161B
92161B
92161B
156
156
156
156
156A
156A
156A
156A
311
311
311
311
311
311
311
311
311
311
92172
92172
92172
92172
92172
92172
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11053 | 11053-3776 | 4 | ||
| BRACKET | 11056 | 11056-3724 | 4 | ||
| SHAFT | 13107 | 13107-3790 | 1 | ||
| PLATE,INTAKE COVER | 13272 | 13272-1221 | 1 | ||
| HOLDER,ROD | 13280 | 13280-3749 | 1 | ||
| HOLDER,ROD | 13280A | 13280-3751 | 1 | ||
| DUCT,HATCH,INNER | 14073 | 14073-3837 | 1 | ||
| COVER,SIDE,LH,S.RED | 14091 | 14091-3780-H1 | 1 | ||
| COVER,SIDE,RH,S.RED | 14091D | 14091-3781-H1 | 1 | ||
| COVER,FR HATCH,S.RED | 14091I | 14091-3824-H1 | 1 | ||
| COVER,METER,FR | 14091L | 14091-3825 | 1 | ||
| COVER,METER,RR,EBONY | 14092 | 14092-0776-H8 | 1 | ||
| COVER,CENTER,F.BLACK | 14092A | 14092-0980-6Z | 1 | ||
| COVER,CENTER STORAGE,S.RED | 14092B | 14092-3701-H1 | 1 | ||
| LOCK,CENTER STORAGE | 27017 | 27017-3726 | 1 | ||
| TRIM-SEAL | 39145 | 39145-3793 | 1 | ||
| TRIM-SEAL,L=720 | 39145A | 39145-3802 | 1 | ||
| BOLT,6X20 | 92002 | 92002-3755 | 6 | ||
| BOLT,6X12 | 92002A | 92002-3763 | 2 | ||
| SCREW,TAPPING,4X16 | 92009 | 92009-3849 | 2 | ||
| WASHER,6.5X20X1.5 | 92022 | 92022-3710 | 16 | ||
| RIVET | 92039 | 92039-3788 | 2 | ||
| GROMMET | 92071 | 92071-3716 | 2 | ||
| COLLAR | 92143 | 92143-3750 | 2 | ||
| SPRING | 92145 | 92145-3729 | 1 | ||
| DAMPER,16X100X3.18 | 92161 | 92161-0968 | 1 | ||
| DAMPER,CENTER STORAGE | 92161A | 92161-3773 | 1 | ||
| DAMPER | 92161B | 92161-3790 | 4 | ||
| BOLT-WP,6X18 | 156 | 156R0618 | 4 | ||
| BOLT-WP,6X20 | 156A | 156R0620 | 4 | ||
| NUT-HEX,6MM | 311 | 311R0600 | 10 | ||
| SCREW,5X12 | 92172 | 92172-3714 | 4 | ||
| NUT,6MM | 92210 | 92210-3768 | 14 | ||
| NUT,CAP,6MM | 92210A | 92210-3785 | 2 |
