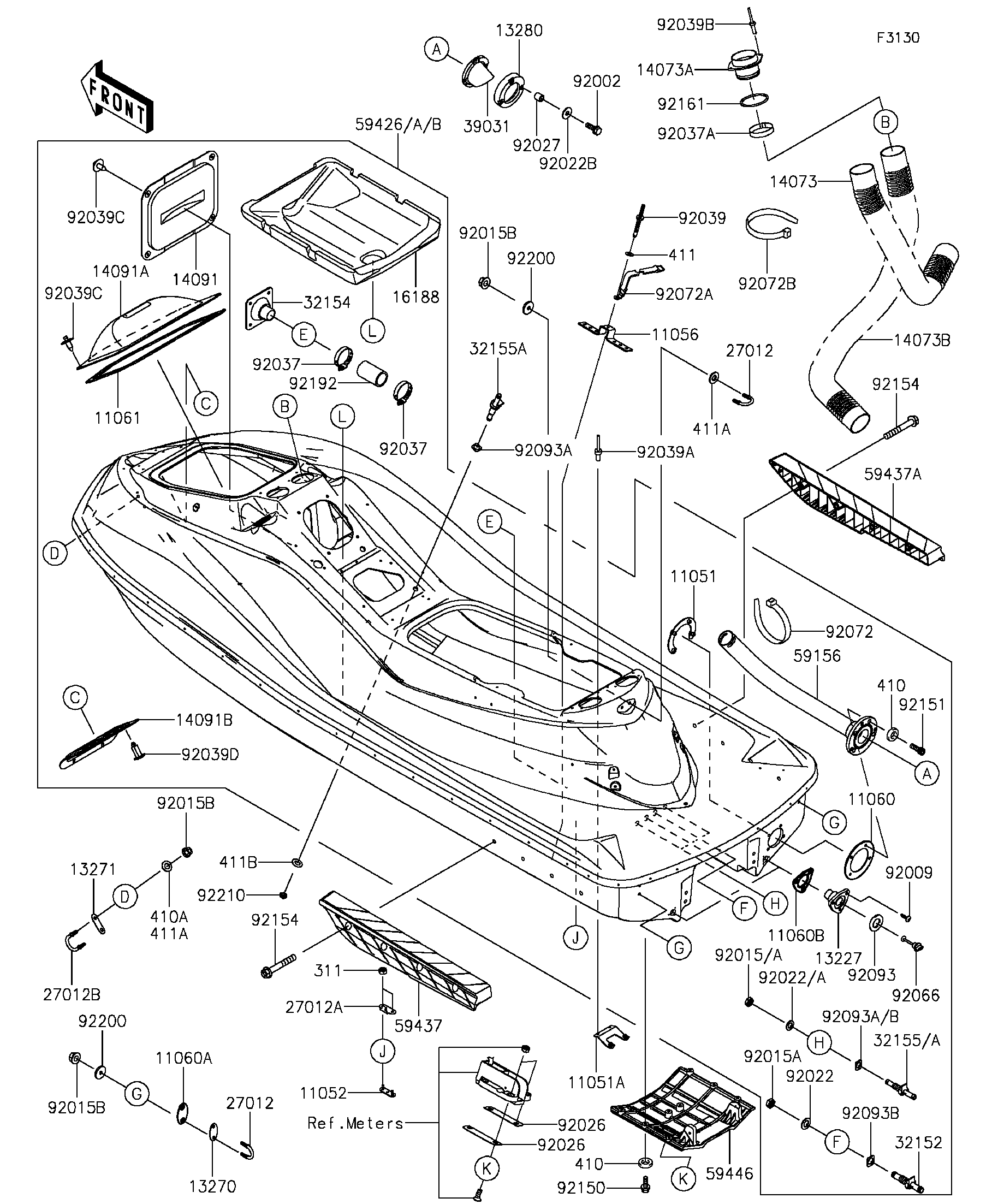

2012 JET SKI® ULTRA® LX - Hull

DOWNLOAD PDF
SELECT A NEW PART
11051
11051
11051A
11051A
11052
11052
11056
11056
11060
11060
11060A
11060A
11060B
11060B
11061
11061
13227
13227
13270
13270
13271
13271
13280
13280
14073
14073
14073A
14073A
14073B
14073B
14091
14091
14091A
14091A
14091B
14091B
16188
16188
27012
27012
27012
27012
27012A
27012A
27012B
27012B
32152
32152
32154
32154
32155A
32155A
32155A
32155A
39031
39031
59156
59156
59426B
59426B
59437
59437
59437A
59437A
59446
59446
92002
92002
92009
92009
92015
92015
92015A
92015A
92015A
92015A
92015B
92015B
92015B
92015B
92015B
92015B
92022
92022
92022
92022
311
311
410
410
410
410
410A
410A
411
411
411A
411A
411A
411A
411B
411B
92022A
92022A
92022B
92022B
92026
92026
92026
92026
92027
92027
92037
92037
92037
92037
92037A
92037A
92039
92039
92039A
92039A
92039B
92039B
92039C
92039C
92039C
92039C
92039D
92039D
92066
92066
92072
92072
92072A
92072A
92072B
92072B
92093
92093
92093A
92093A
92093A
92093A
92093B
92093B
92093B
92093B
92150
92150
92151
92151
92154
92154
92154
92154
92161
92161
92192
92192
92200
92200
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11051 11051-3731 1
BRACKET,BREATHER-BILGE 11051A 11051-3802 1
BRACKET,RR DUCT 11052 11052-3712 1
BRACKET,WATER MUFFLER 11056 11056-3722 1
GASKET 11060 11060-3781 1
GASKET,U HOOK,RR 11060A 11060-3800 2
GASKET,DRAIN PLUG 11060B 11060-3801 2
GASKET,BATTERY COVER 11061 11061-3754 1
HOUSING,DRAIN PLUG,F.BLACK 13227 13227-3721-6Z 2
PLATE 13270 13270-3860 2
PLATE 13271 13271-3724 1
HOLDER,EXHAUST VALVE 13280 13280-3718 1
DUCT,L=800 14073 14073-3804 1
DUCT 14073A 14073-3805 2
DUCT,L=1000 14073B 14073-3836 1
COVER,ECU 14091 14091-3786 1
COVER,BATTERY 14091A 14091-3809 1
COVER,STORAGE CASE 14091B 14091-3819 1
FLOAT 16188 16188-0032 1
HOOK 27012 27012-3797 3
HOOK 27012A 27012-3816 1
HOOK 27012B 27012-3821 1
PIPE 32152 32152-3749 2
PIPE,DRIVE SHAFT 32154 32154-3714 1
PIPE,COOLING 32155A 32155-3702 3
CAP-END 39031 39031-3704 1
PIPE-TAIL 59156 59156-3740 1
HULL-COMP,BLACK/WHITE 59426B 59426-0064-43B 1
STABILIZER,LH,F.BLACK 59437 59437-3749-6Z 1
STABILIZER,RH,F.BLACK 59437A 59437-3750-6Z 1
COVER-JET PUMP 59446 59446-3760 1
BOLT,6X20 92002 92002-3755 3
SCREW,TAPPING,4X16 92009 92009-3849 6
NUT,16MM 92015 92015-1477 2
NUT,20MM 92015A 92015-1589 2
NUT,FLANGED,8MM 92015B 92015-1933 8
WASHER,20.3X36X2.3 92022 92022-1116 2
NUT-HEX,6MM 311 311R0600 2
WASHER-PLAIN-SMALL,6MM 410 410S0600 12
WASHER-PLAIN-SMALL,8MM 410A 410S0800 2
WASHER-PLAIN,5MM 411 411S0500 1
WASHER-PLAIN,8MM 411A 411S0800 2
WASHER-PLAIN 411B 411S1600 1
WASHER,17.3X30X2.3 92022A 92022-1903 2
WASHER 92022B 92022-567 3
SPACER 92026 92026-0780 2
COLLAR,6.2X10X10 92027 92027-3705 3
CLAMP 92037 92037-3009 2
CLAMP 92037A 92037-3738 2
RIVET 92039 92039-3741 1
RIVET 92039A 92039-3755 2
RIVET 92039B 92039-3775 4
RIVET 92039C 92039-3785 10
RIVET 92039D 92039-3788 4
PLUG,RR,DRAIN,F.BLACK 92066 92066-3783-6Z 2
BAND,L=188.85 92072 92072-0105 5
BAND,314X18 92072A 92072-3814 1
BAND,L=608.22 92072B 92072-3884 1
SEAL 92093 92093-3720 2
SEAL 92093A 92093-3783 3
SEAL 92093B 92093-3784 2
BOLT,SOCKET,6X18 92150 92150-3775 8
BOLT,SOCKET,6X20 92151 92151-3774 4
BOLT,FLANGED,8X55 92154 92154-0920 8
DAMPER 92161 92161-3769 2
TUBE,39X51X78 92192 92192-3756 1
WASHER 92200 92200-3779 6
NUT 92210 92210-3707 1
