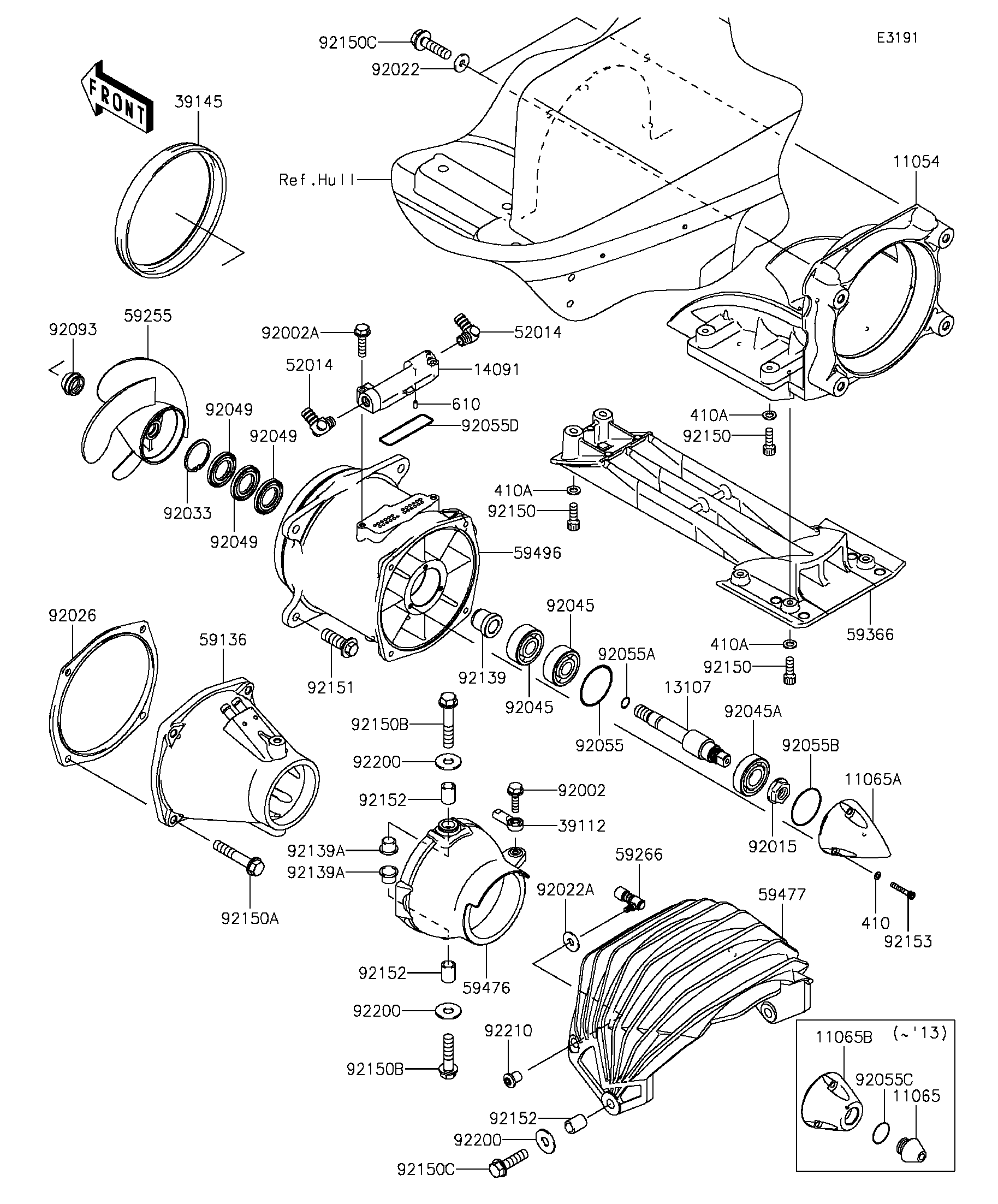

2012 JET SKI® ULTRA® LX - Jet Pump

DOWNLOAD PDF
SELECT A NEW PART
11054
11054
11065
11065
11065B
11065B
13107
13107
14091
14091
39112
39112
39145
39145
52014
52014
52014
52014
59136
59136
59255
59255
59266
59266
59366
59366
59476
59476
59477
59477
59496
59496
92002
92002
92002A
92002A
92015
92015
92022
92022
92022A
92022A
92026
92026
92033
92033
92045
92045
92045
92045
92045A
92045A
92049
92049
92049
92049
92049
92049
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92055D
92055D
92093
92093
92139
92139
92139A
92139A
92139A
92139A
92150
92150
92150
92150
92150
92150
92150A
92150A
92150B
92150B
92150B
92150B
92150C
92150C
92150C
92150C
92151
92151
410
410
410A
410A
410A
410A
410A
410A
610
610
92152
92152
92152
92152
92152
92152
92153
92153
92200
92200
92200
92200
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,JET PUMP 11054 11054-3709 1
CAP 11065 11065-0826 1
CAP 11065B 11065-3733 1
SHAFT 13107 13107-0764 1
COVER,VANE GUIDE 14091 14091-3817 1
RODEND-TIE 39112 39112-3707 1
TRIM-SEAL,VANE GUIDE 39145 39145-3799 1
ELBOW 52014 52014-3711 2
NOZZLE-PUMP 59136 59136-3764 1
IMPELLER-COMP 59255 59255-3734 1
JOINT-BALL 59266 59266-3710 1
GRATE 59366 59366-3723 1
NOZZLE-STRG 59476 59476-0063 1
BUCKET-REVERSE 59477 59477-0001 1
VANE-GUIDE 59496 59496-0002 1
BOLT,6X25 92002 92002-3714 1
BOLT,6X30 92002A 92002-3726 2
NUT,18MM 92015 92015-1512 1
WASHER,8.4X23X2.5 92022 92022-3744 2
WASHER 92022A 92022-567 1
SPACER,NOZZLE PUMP 92026 92026-3748 1
RING-SNAP 92033 92033-3730 1
BEARING-BALL,6303R-6 92045 92045-3744 2
BEARING-BALL,62/22 2RS 92045A 92045-3745 1
SEAL-OIL 92049 92049-3739 3
RING-O,49.7X2.4 92055 92055-0183 1
RING-O,12X1.5 92055A 92055-025 1
RING-O 92055B 92055-3741 1
RING-O 92055C 92055-3744 1
RING-O,66.5X2.0 92055D 92055-3784 1
SEAL 92093 92093-3749 1
BUSHING 92139 92139-0767 1
BUSHING 92139A 92139-3720 2
BOLT,SOCKET,6X18 92150 92150-3775 10
BOLT,8X45 92150A 92150-3785 4
BOLT,8X35 92150B 92150-3792 2
BOLT,FLANGED,8X30 92150C 92150-3803 4
BOLT,10X30 92151 92151-3706 4
W-PLAIN-S,5MM 410 410S0500 3
WASHER-PLAIN-SMALL,6MM 410A 410S0600 10
ROLLER,4X8 610 610A0408 1
COLLAR,8.2X11.8X15 92152 92152-3703 4
BOLT,SOCKET,5X30 92153 92153-3742 3
WASHER,8.0X22.0X1.5 92200 92200-0174 4
NUT,6MM 92210 92210-3789 1
