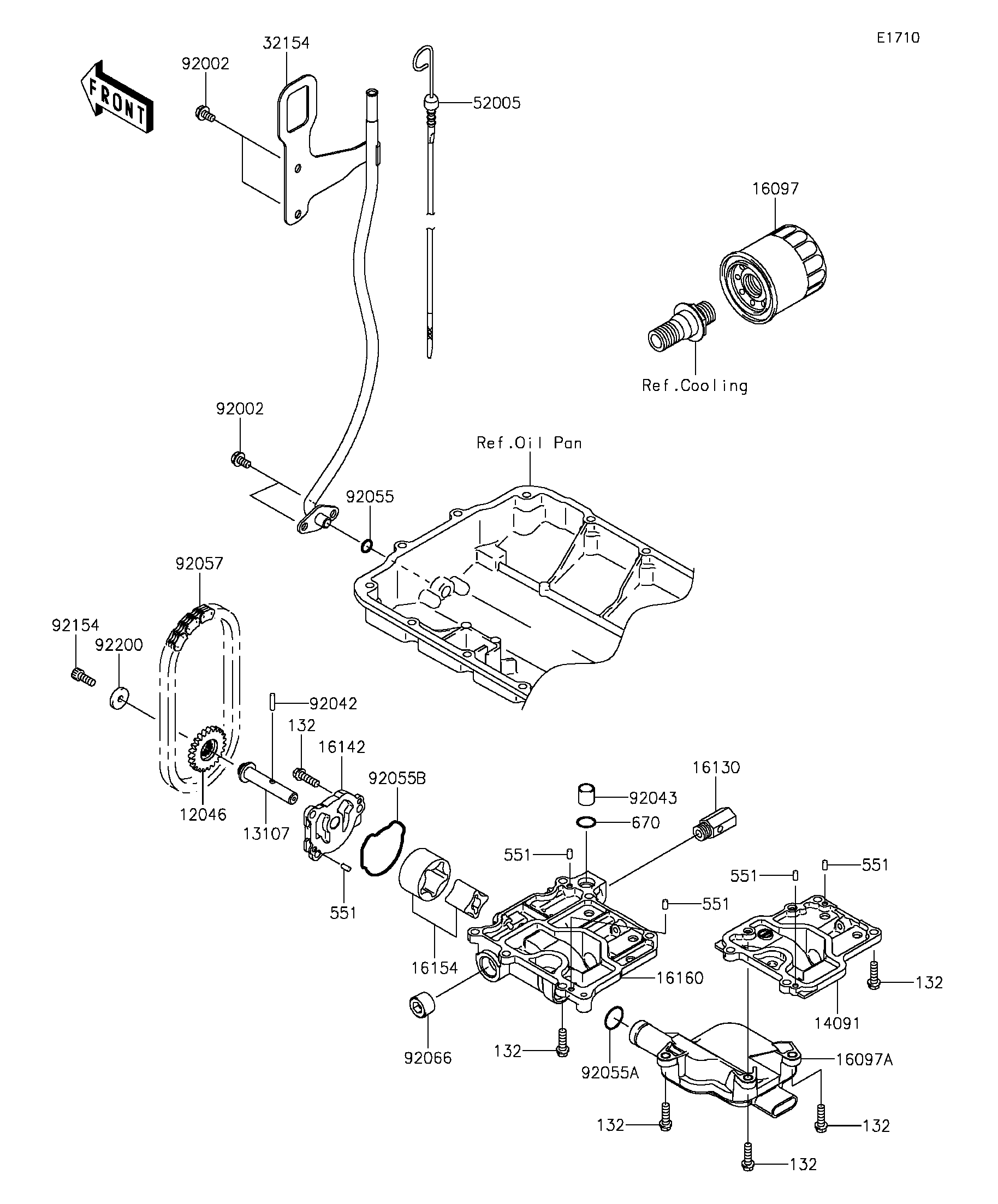

2012 JET SKI® ULTRA® LX - Oil Pump

DOWNLOAD PDF
SELECT A NEW PART
12046
13107
132
132
132
132
132
132
14091
16097
16097A
16130
16142
16154
16160
32154
52005
551
551
551
551
551
670
92002
92002
92042
92043
92055
92055A
92055B
92057
92066
92154
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,23T 12046 12046-3708 1
SHAFT 13107 13107-0730 1
BOLT-FLANGED-SMALL,6X20 132 132BD0620 16
COVER 14091 14091-3767 1
FILTER-ASSY-OIL 16097 16097-0007 1
FILTER-ASSY-OIL 16097A 16097-3702 1
VALVE-ASSY-RELIEF 16130 16130-3701 1
COVER-PUMP 16142 16142-3703 1
ROTOR-PUMP 16154 16154-1124 1
BODY,OIL PUMP 16160 16160-0705 1
PIPE,OIL LEVEL 32154 32154-3707 1
GAUGE,OIL LEVEL 52005 52005-3710 1
PIN-DOWEL 551 551R0408 5
O RING,14MM 670 670D2014 1
BOLT,6X12 92002 92002-3763 4
PIN,DOWEL,4X15.8 92042 92042-014 1
PIN,11.5X14X14 92043 92043-1279 1
RING-O,9.8X2.4 92055 92055-1150 1
RING-O,19.8X1.9 92055A 92055-1332 1
RING-O 92055B 92055-3764 1
CHAIN,OIL PUMP,98XRH2010-52L 92057 92057-3713 1
PLUG,PT1/2X12.5 92066 92066-0002 1
BOLT,SOCKET,6X16 92154 92154-3709 1
WASHER,6X20X3.2 92200 92200-0120 1
