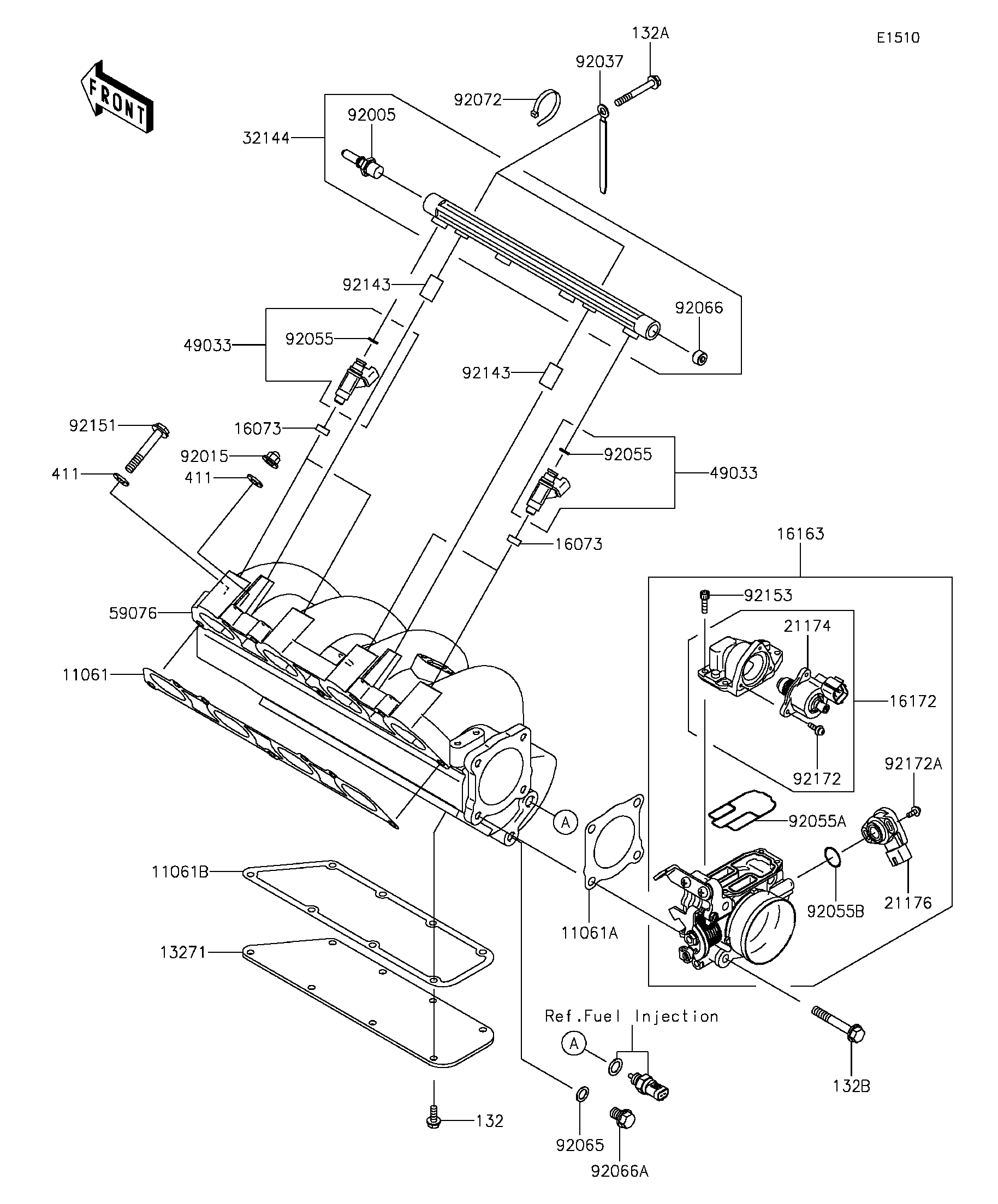

2012 JET SKI® ULTRA® LX - Throttle

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
11061B
132
13271
132A
132B
16073
16073
16163
16172
21174
21176
32144
411
411
49033
49033
59076
92005
92015
92037
92055
92055
92055A
92055B
92065
92066
92066A
92072
92143
92143
92151
92153
92172
92172A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MANIFOLD 11061 11061-0813 1
GASKET,THROTTLE 11061A 11061-0815 1
GASKET,PLATE 11061B 11061-3737 1
BOLT-FLANGED-SMALL,6X16 132 132BD0616 8
PLATE,MANIFOLD 13271 13271-3899 1
BOLT-FLANGED-SMALL,6X50 132A 132BD0650 2
BOLT-FLANGED-SMALL,8X55 132B 132BD0855 4
INSULATOR 16073 16073-3707 4
THROTTLE-ASSY 16163 16163-0757 1
ACTUATOR 16172 16172-0561 1
MOTOR-ELECTRIC,STM 21174 21174-0555 1
SENSOR,TPS 21176 21176-3762 1
PIPE-ASSY 32144 32144-3706 1
WASHER-PLAIN,8MM 411 411S0800 7
NOZZLE-INJECTION 49033 49033-3707 4
MANIFOLD-INTAKE 59076 59076-3729 1
FITTING 92005 92005-3754 1
NUT,CAP,8MM 92015 92015-1371 4
CLAMP,L=100 92037 92037-3736 2
RING-O,INJECTION NOZZLE 92055 92055-1622 4
RING-O 92055A 92055-3773 1
RING-O 92055B 92055-3774 1
GASKET,10.5X16X1 92065 92065-058 1
PLUG 92066 92066-3778 1
PLUG 92066A 92066-3781 1
BAND,L=188.85 92072 92072-0105 1
COLLAR 92143 92143-3731 2
BOLT,8X60 92151 92151-3730 3
BOLT 92153 92153-3723 4
SCREW 92172 92172-3710 3
SCREW 92172A 92172-3711 2
