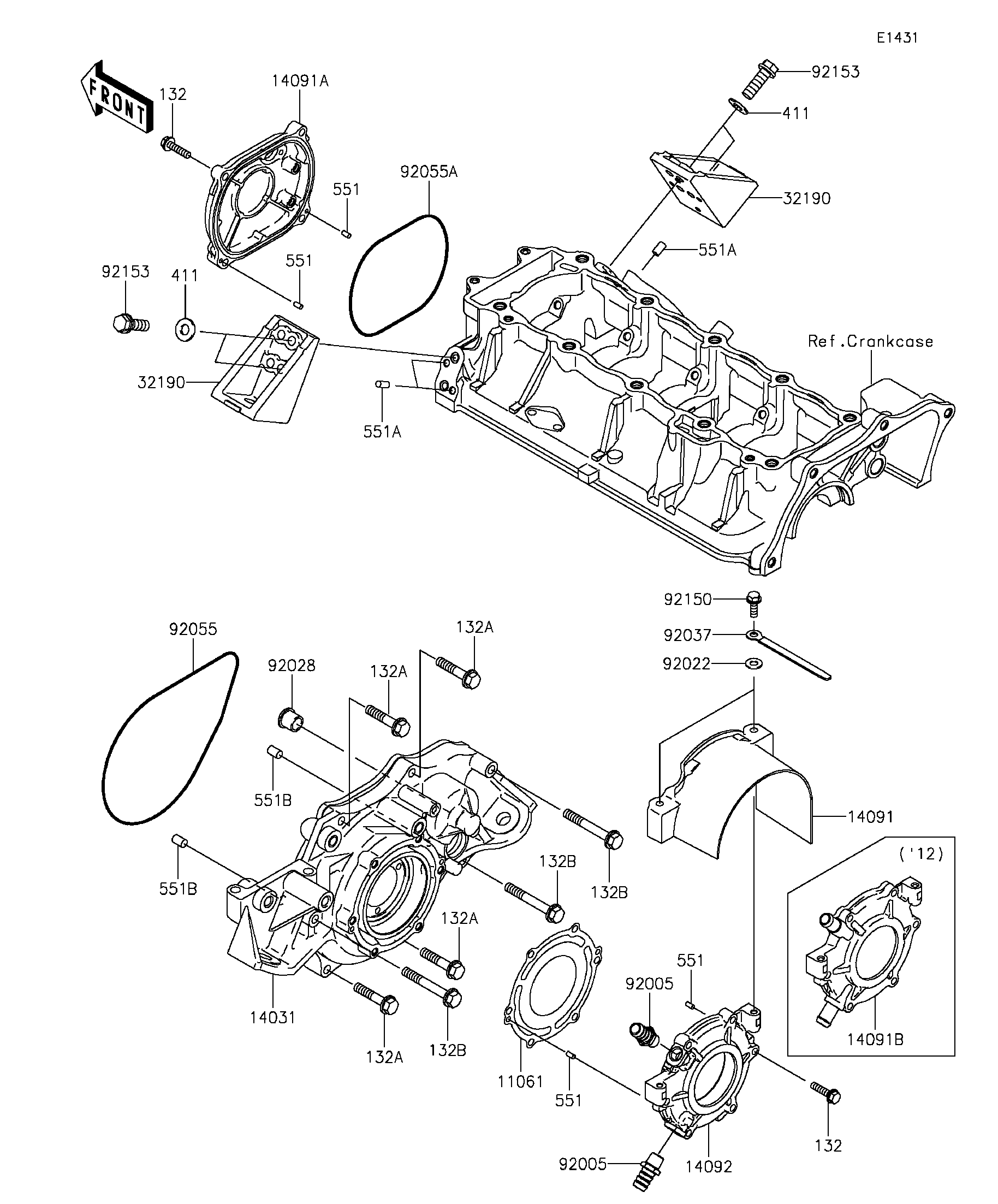

2012 JET SKI® ULTRA® LX - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
132
132
132A
132A
132A
132A
132B
132B
132B
14031
14091
14091A
14091B
32190
32190
411
411
551
551
551
551
551A
551A
551B
551B
92022
92028
92037
92055
92055A
92150
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OUTPUT COVER 11061 11061-0812 1
BOLT-FLANGED-SMALL,6X25 132 132BD0625 10
BOLT-FLANGED-SMALL,8X40 132A 132BD0840 4
BOLT-FLANGED-SMALL,8X60 132B 132BD0860 3
COVER-GENERATOR 14031 14031-3737 1
COVER,COUPLING 14091 14091-3749 1
COVER,PULS 14091A 14091-3763 1
COVER,OUTPUT 14091B 14091-3776 1
BRACKET-ENGINE 32190 32190-3703 2
WASHER-PLAIN,8MM 411 411S0800 4
PIN-DOWEL 551 551R0408 4
PIN-DOWEL 551A 551R0612 4
PIN-DOWEL 551B 551R0812 2
WASHER,6.5X20X1.5 92022 92022-3710 2
BUSHING 92028 92028-3718 1
CLAMP,L=100 92037 92037-3736 2
RING-O,196X3 92055 92055-3761 1
RING-O,120X3 92055A 92055-3762 1
BOLT,6X18 92150 92150-3729 2
BOLT,FLANGED,8X30 92153 92153-3722 4
