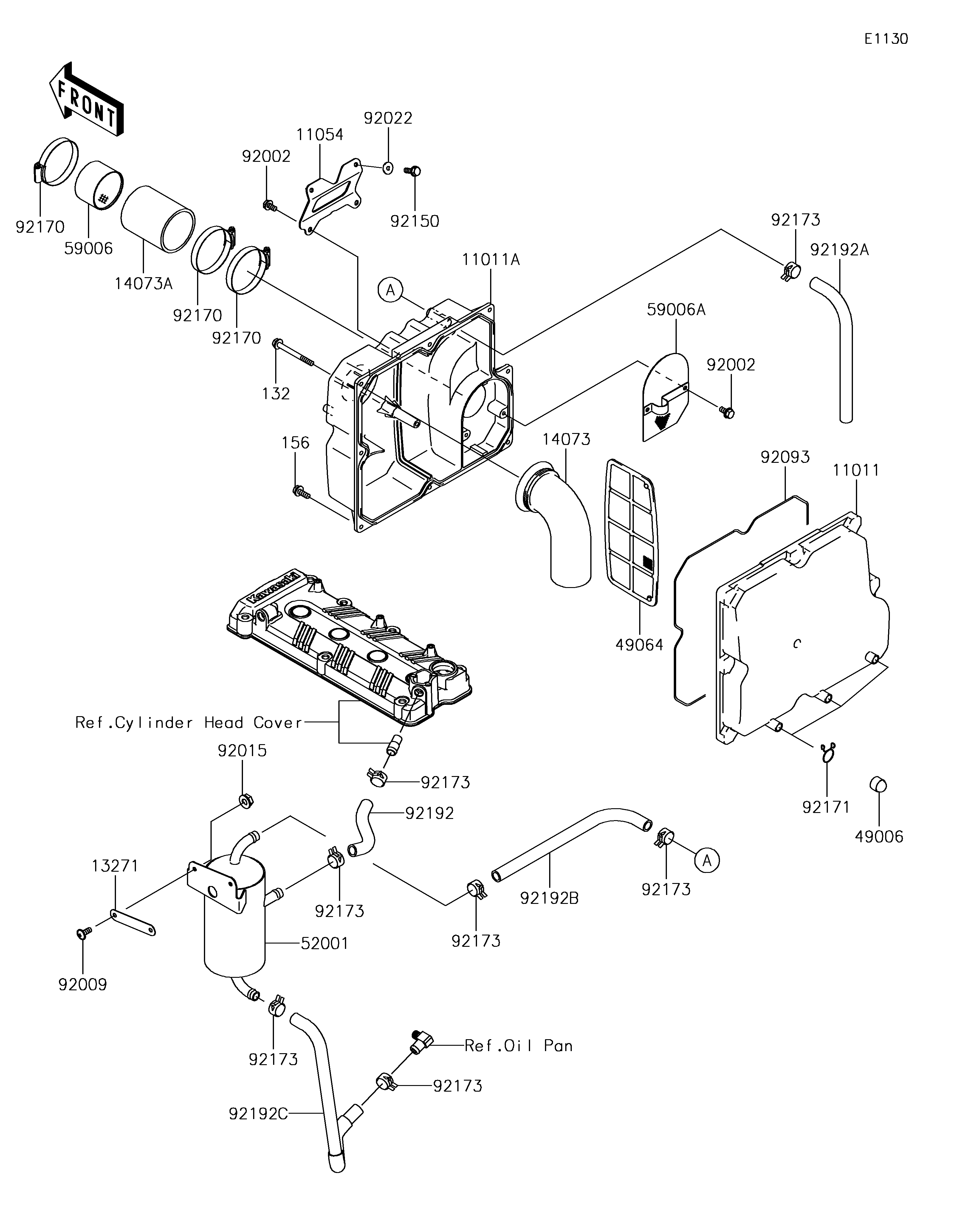

2012 JET SKI® ULTRA® LX - Intake Silencer

DOWNLOAD PDF
SELECT A NEW PART
11011
11011A
11054
132
13271
14073
14073A
156
49006
49064
52001
59006
59006A
92002
92002
92009
92015
92022
92093
92150
92170
92170
92170
92171
92173
92173
92173
92173
92173
92173
92173
92192
92192A
92192B
92192C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER,RR 11011 11011-3704 1
CASE-AIR FILTER,FR 11011A 11011-3706 1
BRACKET,AIR BOX 11054 11054-3744 1
BOLT-FLANGED-SMALL,6X60 132 132BD0660 1
PLATE 13271 13271-3880 1
DUCT,AIR INLET 14073 14073-3794 1
DUCT,AIR FILTER-THOROTTLE 14073A 14073-3795 1
BOLT-WP,6X16 156 156R0616 8
BOOT,DRAIN 49006 49006-3718 3
FILTER-AIR 49064 49064-3702 1
TANK-OIL 52001 52001-3738 1
ARRESTER-FLAME 59006 59006-0019 1
ARRESTER-FLAME 59006A 59006-3720 1
BOLT,6X12 92002 92002-3763 4
SCREW,6X20 92009 92009-3870 2
NUT,6MM 92015 92015-3767 2
WASHER,6.5X20X1.5 92022 92022-3710 2
SEAL 92093 92093-3766 1
BOLT,6X18 92150 92150-3729 2
CLAMP 92170 92170-3764 3
CLAMP,BOOT 92171 92171-3711 3
CLAMP 92173 92173-1039 7
TUBE,HEAD-SEPARATOR 92192 92192-1081 1
TUBE,BLOWBY 92192A 92192-3725 1
TUBE,OIL TANK-A/C 92192B 92192-3795 1
TUBE,OIL TANK-OIL PAN 92192C 92192-3808 1
