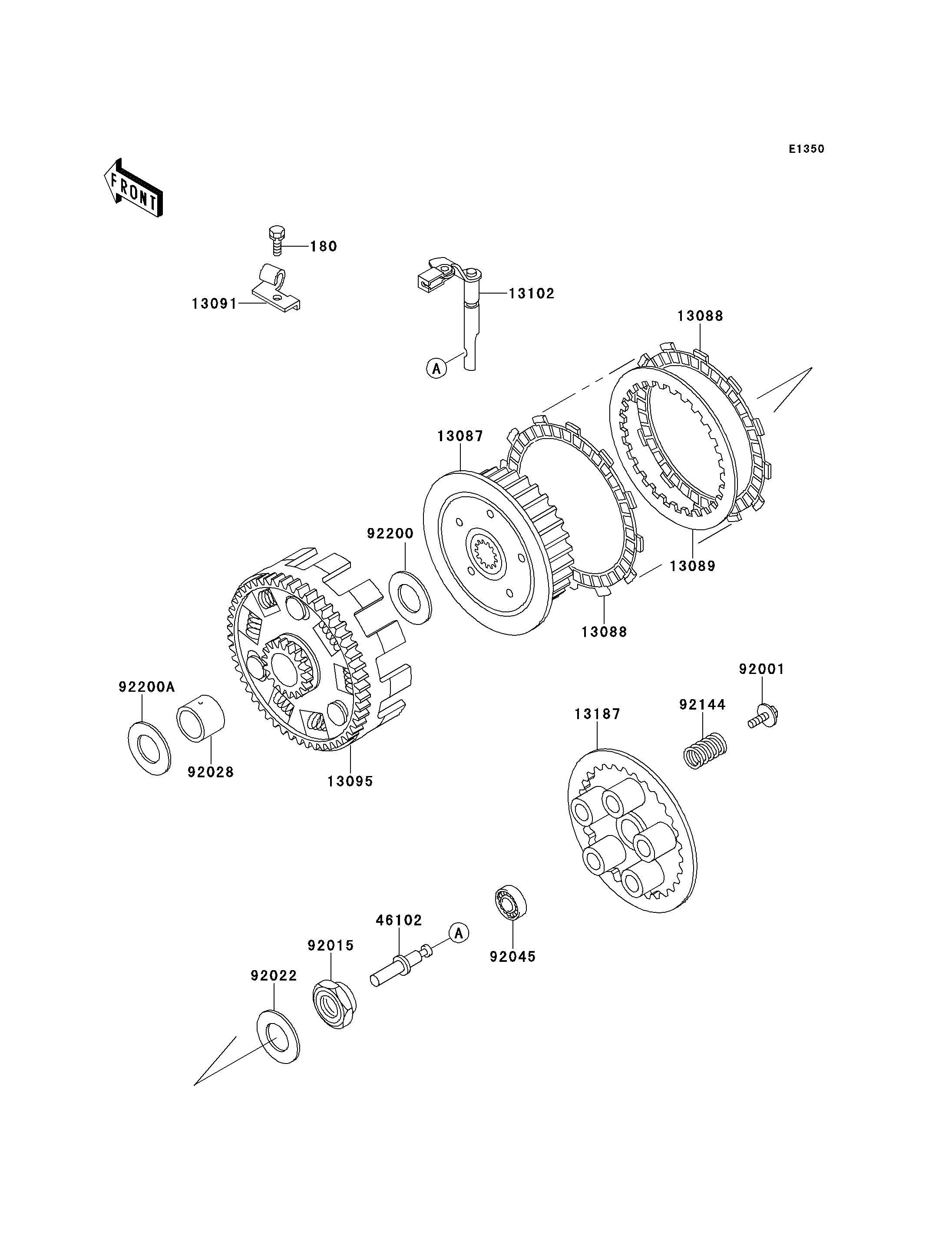

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
180
13087
13088
13088
13089
13091
13095
13102
13187
46102
92001
92015
92022
92028
92045
92144
92200
92200A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET-WS | 180 | 180J0612 | 1 | ||
| HUB-CLUTCH | 13087 | 13087-1146 | 1 | ||
| PLATE-FRICTION | 13088 | 13088-040 | 7 | ||
| PLATE-CLUTCH,T=2.0 | 13089 | 13089-1068 | 6 | ||
| HOLDER,CLUTCH CABLE | 13091 | 13091-1932 | 1 | ||
| HOUSING-COMP-CLUTCH | 13095 | 13095-1256 | 1 | ||
| RELEASE-COMP-CLUTCH | 13102 | 13102-1131 | 1 | ||
| PLATE-CLUTCH OPERATING | 13187 | 13187-1012 | 1 | ||
| ROD,CLUTCH | 46102 | 46102-1030 | 1 | ||
| BOLT,FLANGED,6X18 | 92001 | 92001-1066 | 5 | ||
| NUT,20MM | 92015 | 92015-1555 | 1 | ||
| WASHER | 92022 | 92022-1868 | 1 | ||
| BUSHING,CLUTCH | 92028 | 92028-1668 | 1 | ||
| BEARING-BALL,6001C3ML01 | 92045 | 92045-1235 | 1 | ||
| SPRING,CLUTCH | 92144 | 92144-1579 | 5 | ||
| WASHER,22.5X47X2 | 92200 | 92200-1143 | 1 | ||
| WASHER,22.1X36X4 | 92200A | 92200-1144 | 1 |
