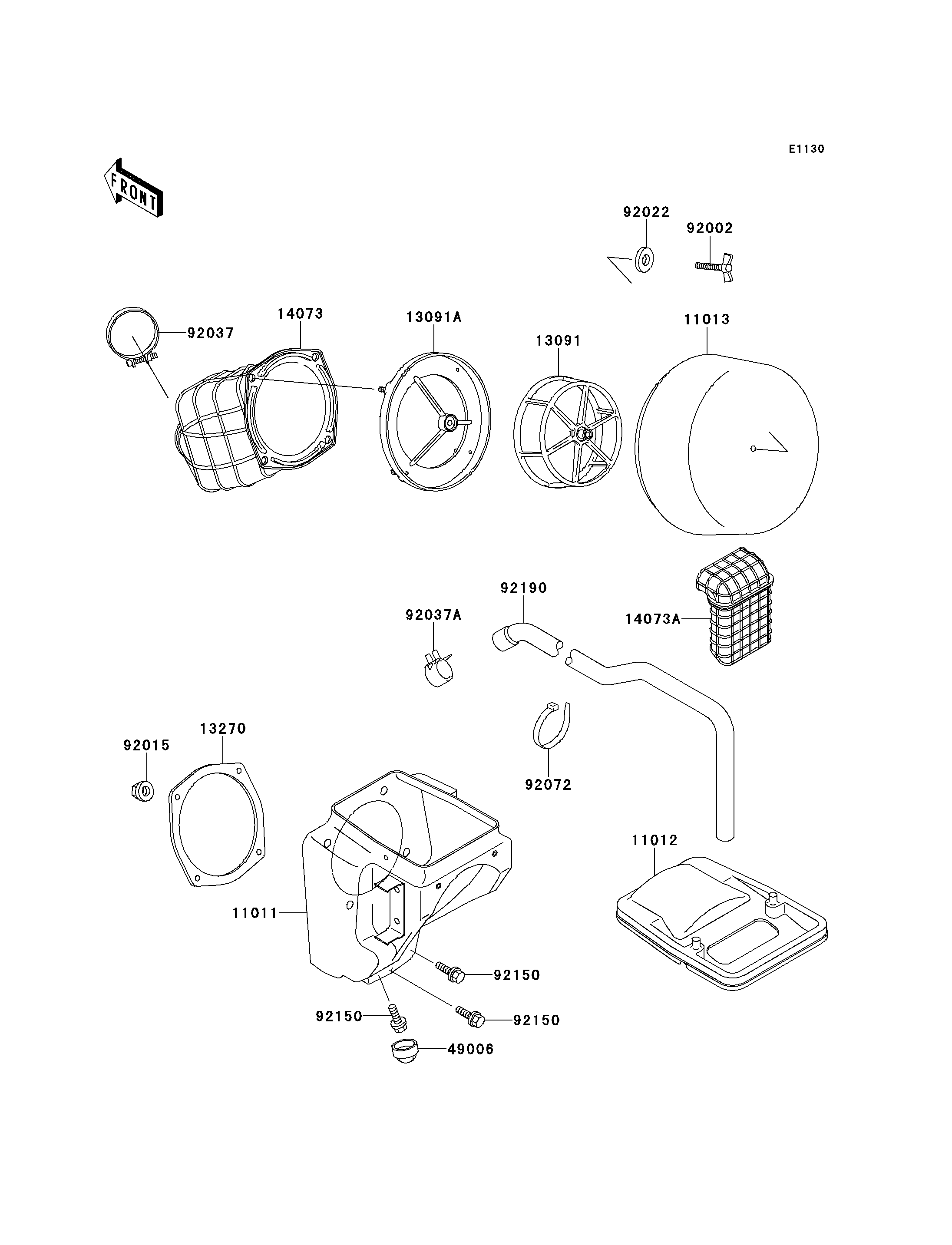

Parts Diagrams |
11011
11012
11013
13091
13091A
13270
14073
49006
92002
92015
92022
92037
92037A
92072
92150
92150
92150
92190
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-AIR FILTER | 11011 | 11011-1421 | 1 | ||
| CAP,AIR FILTER | 11012 | 11012-1856 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-1196 | 1 | ||
| HOLDER,ELEMENT | 13091 | 13091-1454 | 1 | ||
| HOLDER,ELEMENT | 13091A | 13091-1835 | 1 | ||
| PLATE,DUCT FITTING | 13270 | 13270-1284 | 1 | ||
| DUCT,AIR FILTER | 14073 | 14073-1527 | 1 | ||
| BOOT | 49006 | 49006-1248 | 1 | ||
| BOLT,WING | 92002 | 92002-1719 | 1 | ||
| NUT,FLANGED,5MM | 92015 | 92015-1656 | 4 | ||
| WASHER,6.5X20X1.6 | 92022 | 92022-125 | 1 | ||
| CLAMP | 92037 | 92037-1859 | 1 | ||
| CLAMP | 92037A | 92037-1860 | 1 | ||
| BAND,L=365 | 92072 | 92072-1197 | 1 | ||
| BOLT,FLANGED,6X16 | 92150 | 92150-1506 | 3 | ||
| TUBE,BREATHER | 92190 | 92190-1386 | 1 | ||
| DUCT,AIR INTAKE | 14073A | 14073-1576 | 1 | US |
