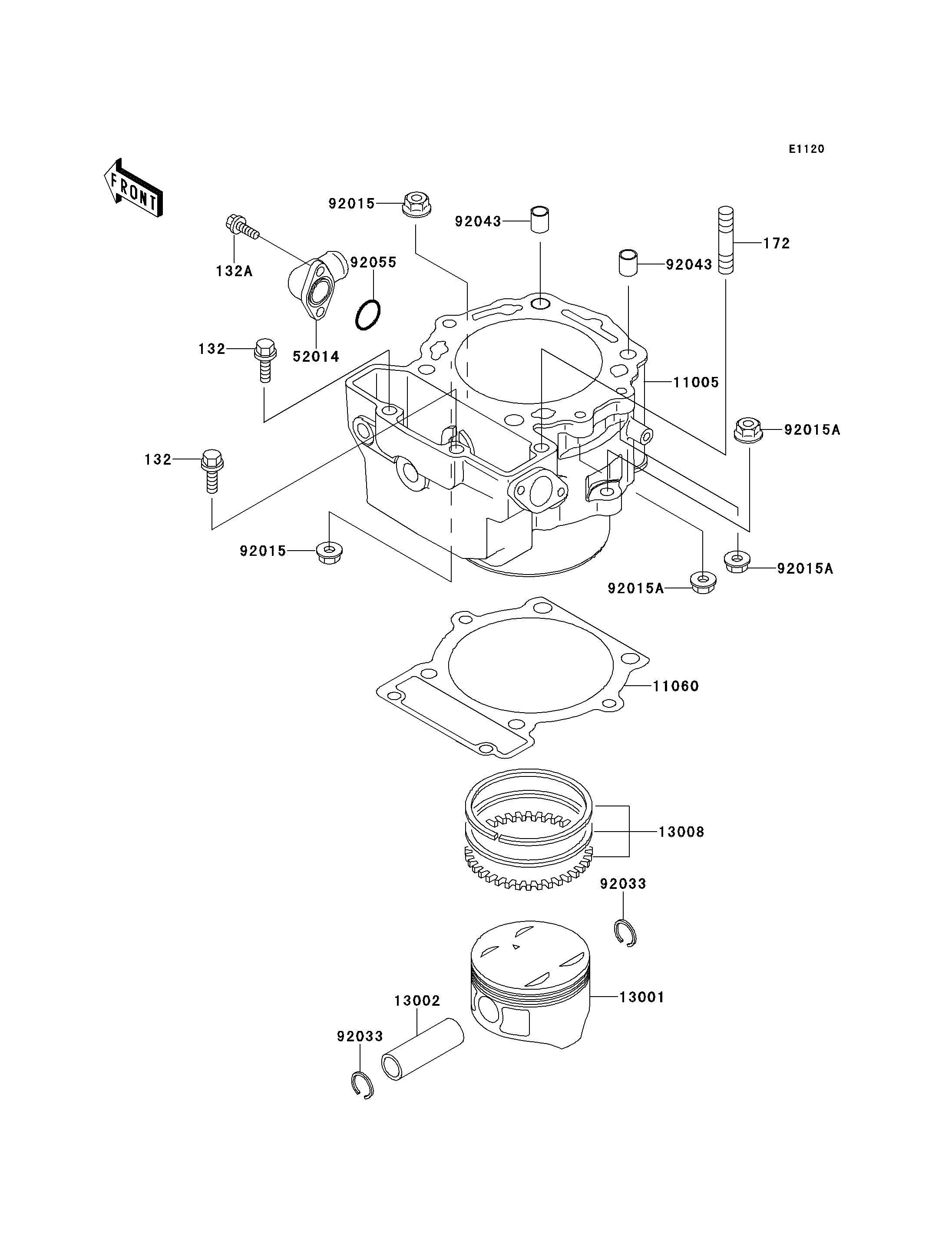

1996 KLX650R - Cylinder/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
172
11005
11060
13001
13002
13008
52014
92015
92015
92015A
92015A
92015A
92033
92033
92043
92043
92055
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0825 2
BOLT-FLANGED-SMALL 132A 132Y0614 2
BOLT-STUD,8X20 172 172G0820 1
CYLINDER-ENGINE 11005 11005-1719 1
GASKET,CYLINDER BASE 11060 11060-1292 1
PISTON-ENGINE 13001 13001-1438 1
PIN-PISTON 13002 13002-1101 1
RING-SET-PISTON 13008 13008-1156 1
ELBOW 52014 52014-1084 1
NUT,6MM 92015 92015-1365 2
NUT,8MM 92015A 92015-1402 3
RING-SNAP 92033 92033-1226 2
PIN,10.1X12X14 92043 92043-4009 2
RING-O,19.5X1.5 92055 92055-055 1
