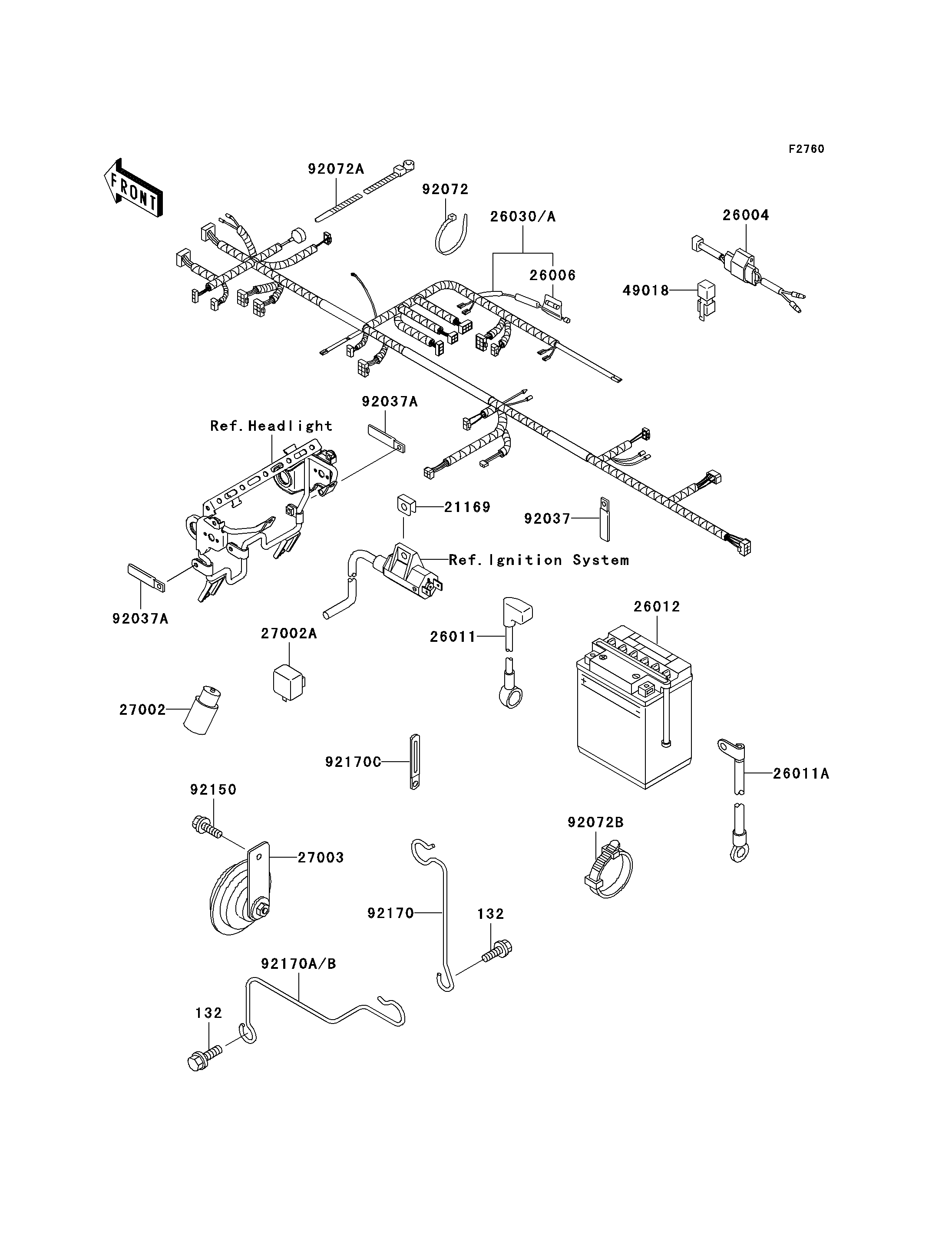

1994 KLX650 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
132
132
21169
26004
26006
26011
26011A
26012
26030A
27002
27002A
27003
49018
92037
92037A
92037A
92072
92072A
92072B
92150
92170
92170B
92170C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0612 2
TERMINAL 21169 21169-1066 1
FUSE-ASSY 26004 26004-1089 1
FUSE,10A,L=30 26006 26006-1002 3
WIRE-LEAD,BATTERY(+) 26011 26011-1546 1
WIRE-LEAD,BATTERY(-) 26011A 26011-1548 1
BATTERY,YTX9-BS,12V 8AH 26012 26012-1282 1
HARNESS,MAIN 26030A 26030-1221 1
RELAY-ASSY 27002 27002-1051 2
RELAY-ASSY,TURN SIGNAL 27002A 27002-1053 1
HORN 27003 27003-1288 1
DIODE 49018 49018-1058 1
CLAMP 92037 92037-1679 1
CLAMP 92037A 92037-1993 2
BAND,L=250 92072 92072-1237 4
BAND,L=215 92072A 92072-1288 1
BAND,L=140 92072B 92072-1293 4
BOLT,6X14 92150 92150-1340 1
CLAMP,HARNESS 92170 92170-1359 1
CLAMP,HARNESS 92170B 92170-1428 1
CLAMP,CARBURETOR HOSE 92170C 92170-1514 1
