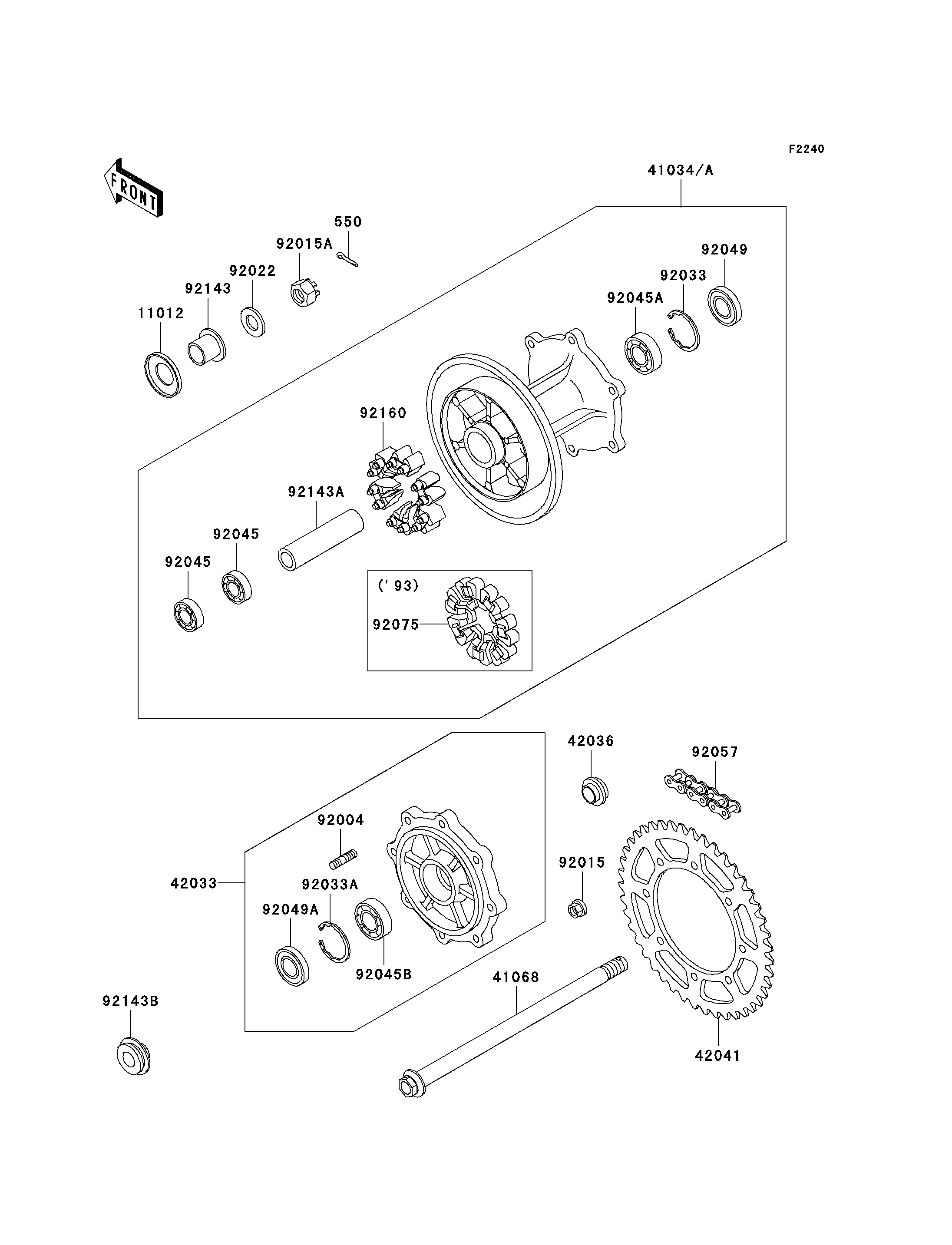

1994 KLX650 - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
550
11012
41034A
41068
42033
42036
42041
92004
92015
92015A
92022
92033
92033A
92045
92045
92045A
92045B
92049
92049A
92057
92143
92143A
92143B
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,3.0X25 550 550D3025 1
CAP,AXLE 11012 11012-1581 1
DRUM-ASSY,REAR BRAKE 41034A 41034-1234 1
AXLE,RR 41068 41068-1349 1
COUPLING-ASSY,RR HUB 42033 42033-1159 1
SLEEVE,RR AXLE,L=20 42036 42036-1301 1
SPROCKET-HUB,43T 42041 42041-1419 1
STUD,8X16 92004 92004-1150 8
NUT,8MM 92015 92015-1432 8
NUT,LOCK,20MM 92015A 92015-1770 1
WASHER,20.1X34X2.0 92022 92022-1994 1
RING-SNAP,42MM 92033 92033-1041 1
RING-SNAP,47MM 92033A 92033-1042 1
BEARING-BALL,6904LU/2A 92045 92045-1136 2
BEARING-BALL,6004X8JRLLX2/3A 92045A 92045-1239 1
BEARING-BALL,TMB005 92045B 92045-1303 1
SEAL-OIL,BJNC2 25425 92049 92049-1203 1
SEAL-OIL,BJN 32 47 5 92049A 92049-1377 1
CHAIN,DRIVE,EK520SR-O2X112L 92057 92057-1366 1
COLLAR,RR AXLE,L=22 92143 92143-1259 1
COLLAR,RR BRAKE DRUM,L=81 92143A 92143-1608 1
COLLAR,RR AXLE,LH,L=23 92143B 92143-1609 1
DAMPER,SHOCK,RR HUB 92160 92160-1482 6
