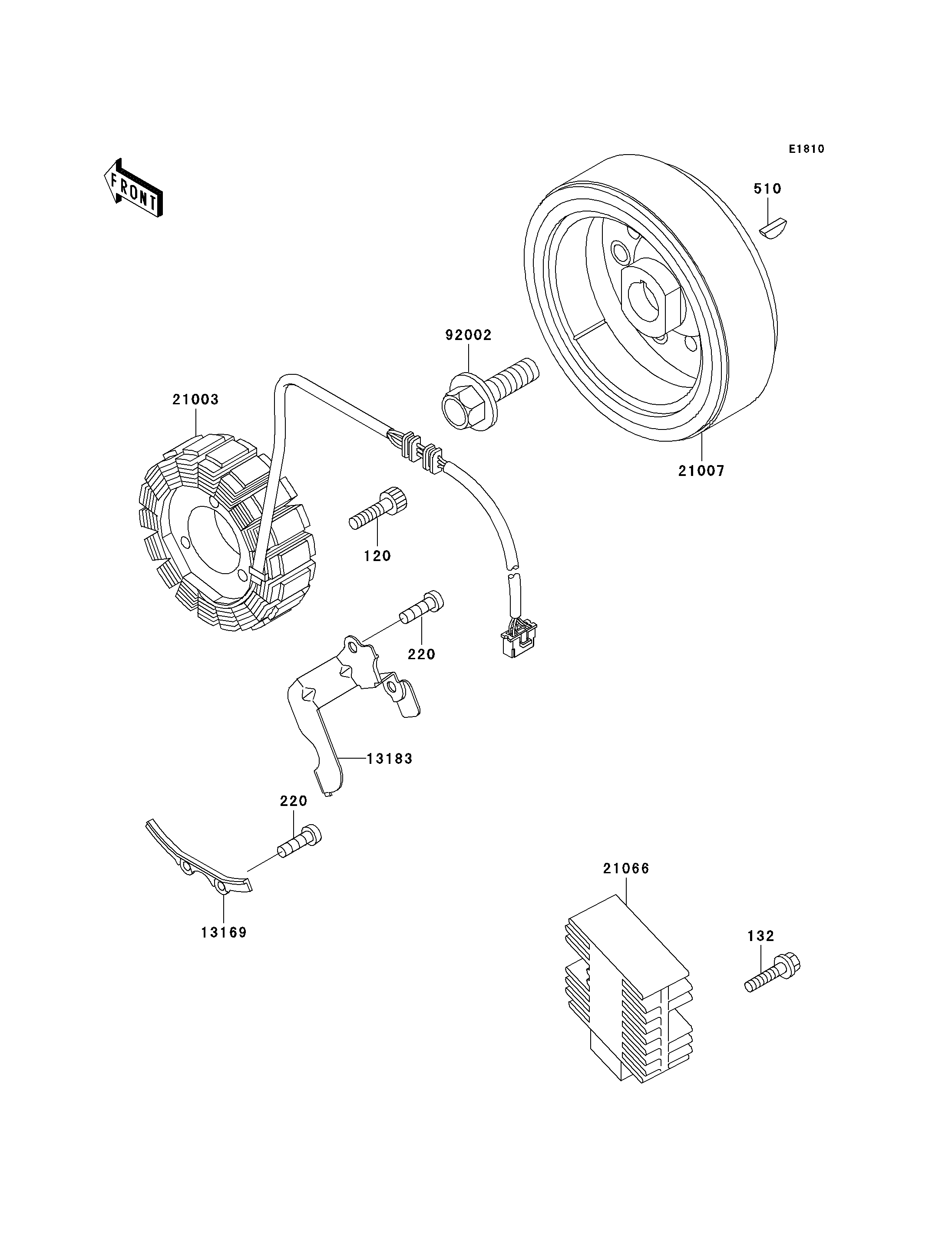

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X30 | 120 | 120P0630 | 3 | ||
| BOLT-FLANGED-SMALL | 132 | 132J0625 | 2 | ||
| SCREW-PAN-CROS,5X8 | 220 | 220B0508 | 4 | ||
| KEY-WOODRUFF | 510 | 510A4200 | 1 | ||
| PLATE,PULSING COIL LEAD | 13169 | 13169-1882 | 1 | ||
| PLATE,LEAD WIRE | 13183 | 13183-1989 | 1 | ||
| STATOR | 21003 | 21003-1255 | 1 | ||
| ROTOR,MAGNETO | 21007 | 21007-1255 | 1 | ||
| REGULATOR-VOLTAGE | 21066 | 21066-1091 | 1 | ||
| BOLT,FLANGED,12X40 | 92002 | 92002-1693 | 1 |
| BOLT-SOCKET,6X30 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,5X8 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| KEY-WOODRUFF | |
| REF # | 510 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,PULSING COIL LEAD | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,LEAD WIRE | |
| REF # | 13183 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STATOR | |
| REF # | 21003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROTOR,MAGNETO | |
| REF # | 21007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REGULATOR-VOLTAGE | |
| REF # | 21066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,12X40 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
