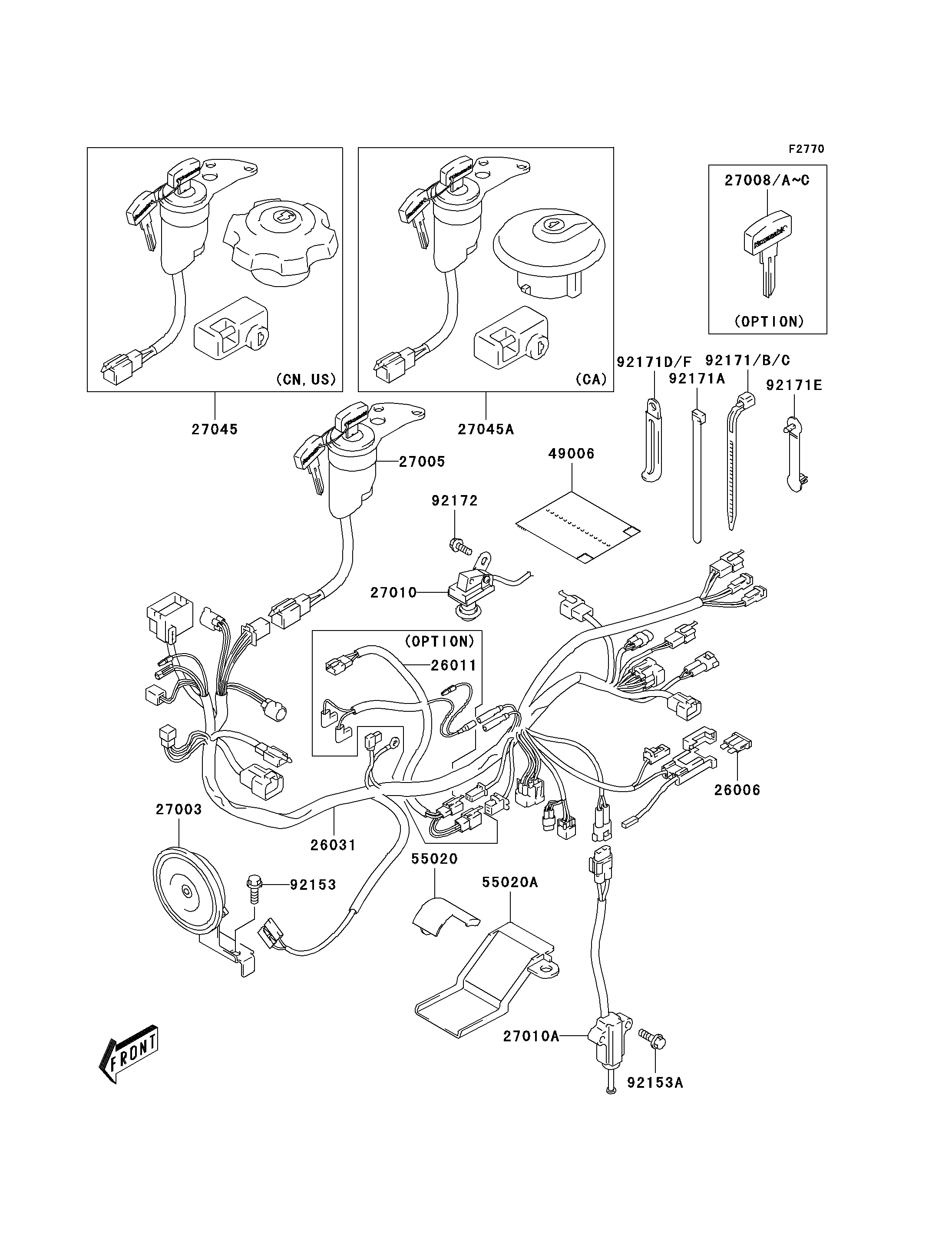

2003 KLX400SR - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
26006
26011
26031
27003
27005
27008
27008A
27008B
27008C
27010
27010A
49006
55020
55020A
92153
92153A
92171
92171A
92171B
92171C
92171D
92171E
92171F
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FUSE,20A 26006 26006-S006 2
WIRE-LEAD,HEATER 26011 26011-S020 1 (OPTION)
HARNESS 26031 26031-S004 1
HORN 27003 27003-S003 1
SWITCH-ASSY-IGNITION 27005 27005-S006 1
KEY-LOCK,BLANK (TYPE:C) 27008 27008-S008 1 (OPTION)
KEY-LOCK,BLANK (TYPE:D) 27008A 27008-S009 1 (OPTION)
KEY-LOCK,BLANK (TYPE:E) 27008B 27008-S010 1 (OPTION)
KEY-LOCK,BLANK (TYPE:F) 27008C 27008-S011 1 (OPTION)
SWITCH,STOP LAMP 27010 27010-S032 1
SWITCH,SIDE STAND 27010A 27010-S033 1
BOOT,WIRING HARNESS 49006 49006-S029 1
GUARD,WIRING HARNESS 55020 55020-S022 1
GUARD,WIRING HARNESS 55020A 55020-S023 1
BOLT 92153 92153-S011 1
BOLT 92153A 92153-S012 2
CLAMP,L=125 92171 92171-S014 6
CLAMP,L=145 92171A 92171-S015 4
CLAMP,L=165 92171B 92171-S016 4
CLAMP,L=235 92171C 92171-S018 5
CLAMP,L=65 92171D 92171-S033 1
CLAMP 92171E 92171-S108 1
CLAMP,OIL HOSE NO.2 92171F 92171-S132 1
SCREW,STOP LAMP SWITCH 92172 92172-S202 1
SWITCH-ASSY 27045 27045-S003 1 US
SWITCH-ASSY 27045A 27045-S004 1 CA
