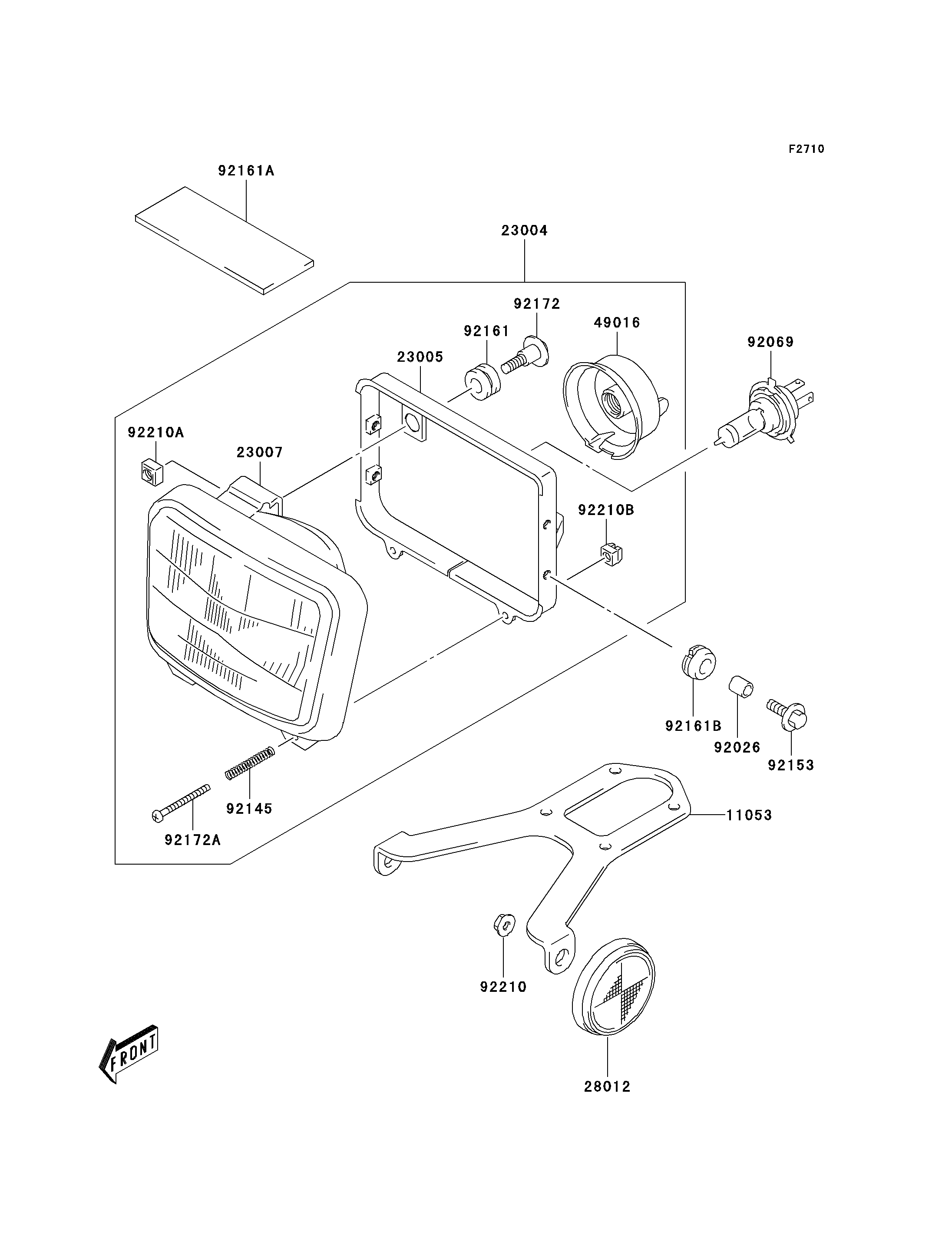

2003 KLX400SR - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
11053
23004
23005
23007
28012
49016
92026
92069
92145
92153
92161
92161A
92161B
92172
92172A
92210
92210A
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11053 11053-S038 1
LAMP-HEAD 23004 23004-S003 1
BODY-COMP-HEAD LAMP 23005 23005-S001 1
LENS-COMP 23007 23007-S005 1
REFLECTOR-REFLEX,FR 28012 28012-S001 2
COVER-SEAL,SOCKET 49016 49016-S006 1
SPACER,6.5X10X10 92026 92026-S005 4
BULB,12V60/55W 92069 92069-S007 1
SPRING 92145 92145-S124 2
BOLT,6X20 92153 92153-S049 4
DAMPER 92161 92161-S118 1
DAMPER,HEADLAMP 92161A 92161-S120 1
DAMPER,HEADLAMP 92161B 92161-S128 4
SCREW 92172 92172-S196 1
SCREW 92172A 92172-S197 2
NUT 92210 92210-S067 2
NUT 92210A 92210-S122 1
NUT,ADJUSTING 92210B 92210-S123 2
