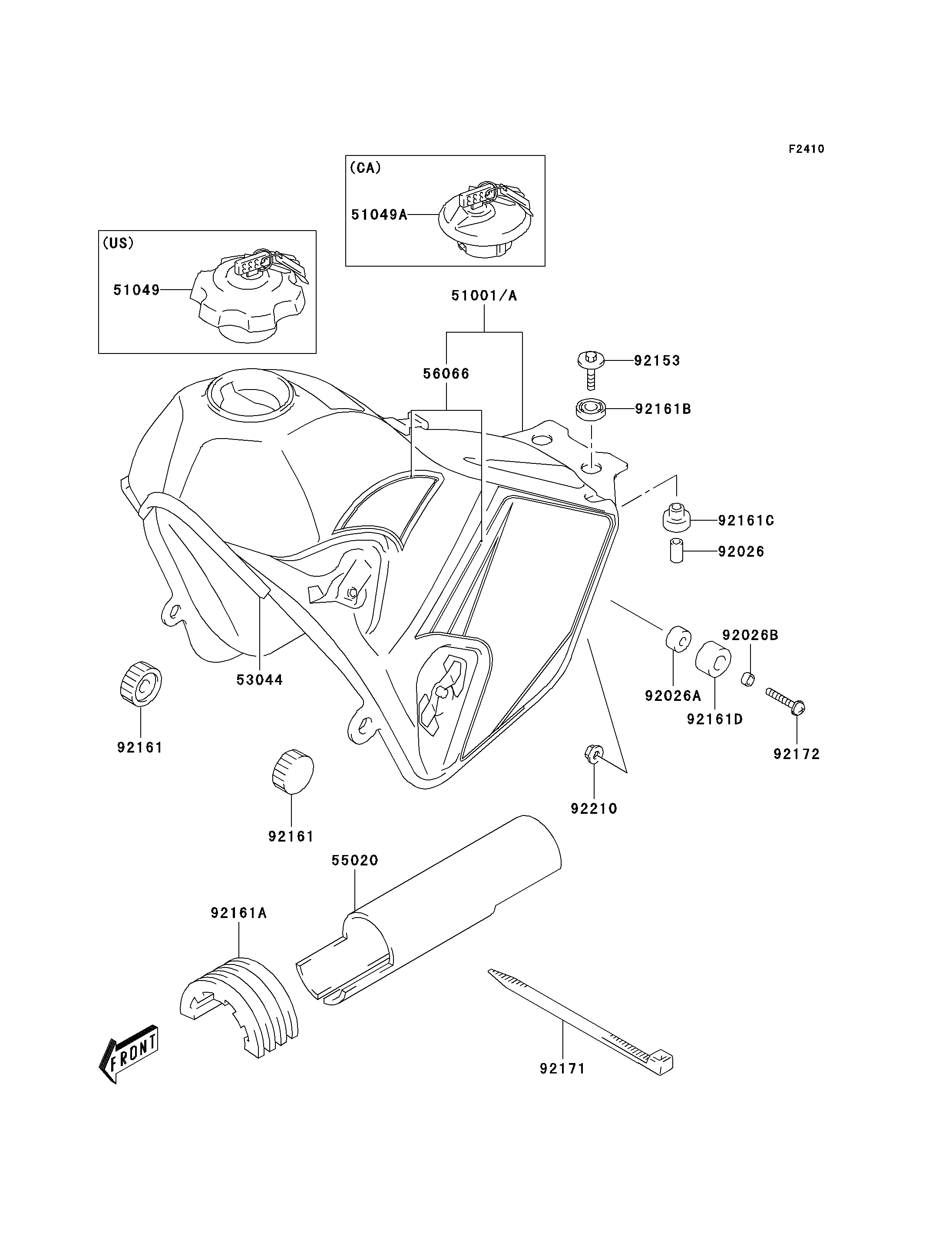

2003 KLX400SR - Fuel Tank(KLX400-A1)

DOWNLOAD PDF
SELECT A NEW PART
53044
55020
56066
92026
92026A
92026B
92153
92161
92161
92161A
92161B
92161C
92161D
92171
92172
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TRIM,M.R.ORANGE 53044 53044-S003-500 1
GUARD,FUEL TANK 55020 55020-S027 1
PATTERN SET,FUEL TANK,WHT/BLK/GRN 56066 56066-S016-568 1
SPACER,6.5X9X18 92026 92026-S002 2
SPACER,CHAIN BUFFER 92026A 92026-S004 1
SPACER 92026B 92026-S126 1
BOLT 92153 92153-S169 2
DAMPER,FUEL TANK,FR 92161 92161-S130 2
DAMPER,FUEL TANK,UPP 92161A 92161-S131 1
DAMPER,FUEL TANK,RR,UPP 92161B 92161-S132 2
DAMPER,FUEL TANK,RR,LOW 92161C 92161-S133 2
DAMPER,FUEL TANK,SIDE 92161D 92161-S134 1
CLAMP,FUEL TANK CUSHION 92171 92171-S056 2
SCREW 92172 92172-S204 1
NUT 92210 92210-S054 1
TANK-COMP-FUEL,BLACK 51001 51001-S011-503 1 US
TANK-COMP-FUEL,BLACK 51001A 51001-S013-503 1 CA
CAP-TANK 51049 51049-S010 1 US
CAP-TANK 51049A 51049-S011 1 CA
