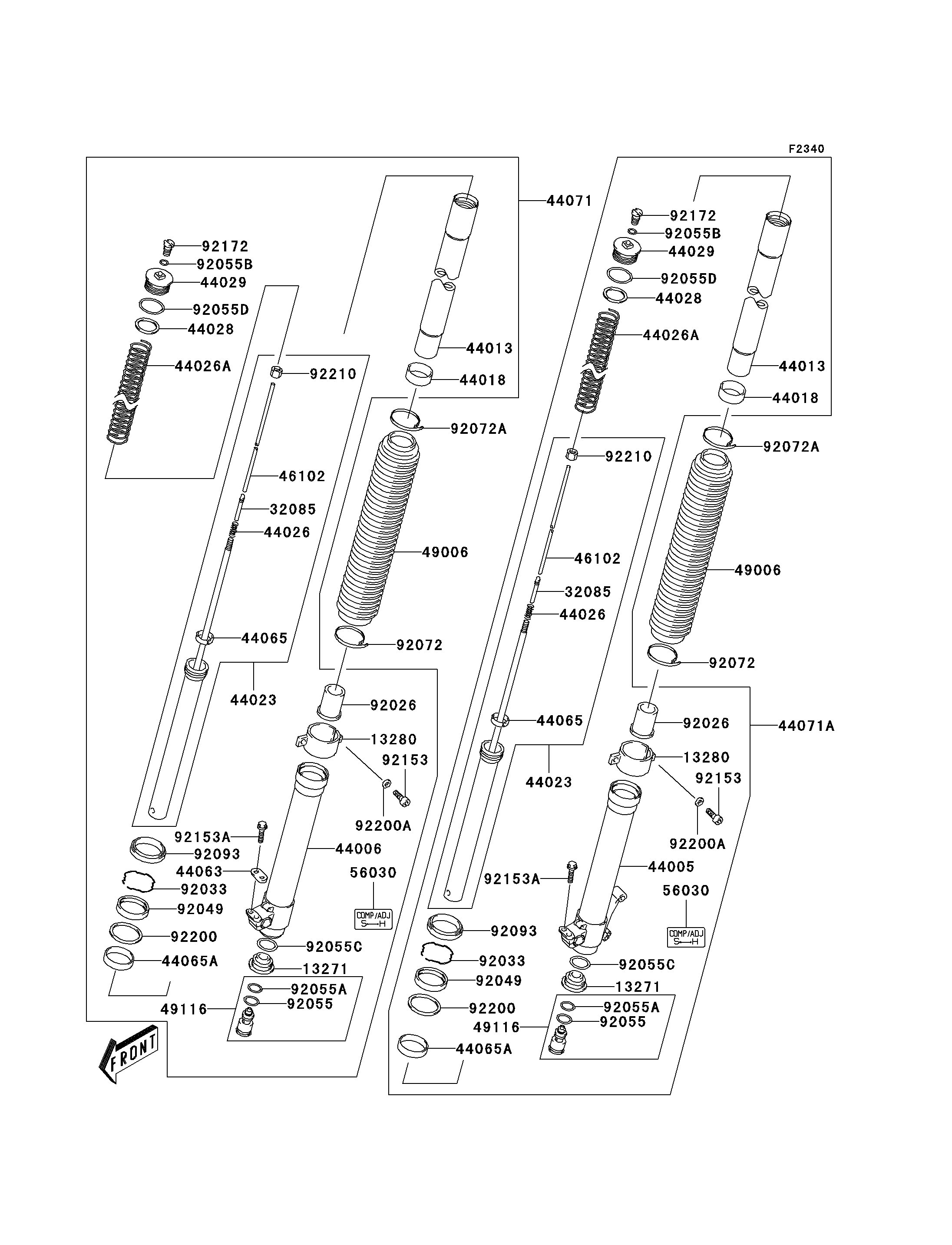

2003 KLX400SR - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
13271
13271
13280
13280
32085
32085
44005
44006
44013
44013
44018
44018
44023
44023
44026
44026
44026A
44026A
44028
44028
44029
44029
44063
44065
44065
44065A
44065A
44071
44071A
46102
46102
49006
49006
49116
49116
56030
56030
92026
92026
92033
92033
92049
92049
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92055D
92055D
92072
92072
92072A
92072A
92093
92093
92153
92153
92153A
92153A
92172
92172
92200
92200
92200A
92200A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13271 13271-S059 2
HOLDER,BOOT 13280 13280-S030 2
STOPPER,NEEDLE 32085 32085-S015 2
PIPE-LEFT FORK OUTER,LH 44005 44005-S008 1
PIPE-RIGHT FORK OUTER,RH 44006 44006-S008 1
PIPE-FORK INNER 44013 44013-S006 2
PISTON-FORK 44018 44018-S004 2
CYLINDER-SET-FORK 44023 44023-S003 2
SPRING-FRONT FORK 44026 44026-S009 2
SPRING-FRONT FORK 44026A 44026-S010 2
GUIDE-FORK SPRING 44028 44028-S003 2
SEAT-FORK SPRING 44029 44029-S002 2
HOLDER-FRONT AXLE 44063 44063-S001 1
BUSHING-FRONT FORK 44065 44065-S002 2
BUSHING-FRONT FORK 44065A 44065-S003 2
DAMPER-ASSY,RH 44071 44071-S007 1
DAMPER-ASSY,LH 44071A 44071-S008 1
ROD 46102 46102-S004 2
BOOT,BLACK 49006 49006-S032-503 2
VALVE-ASSY 49116 49116-S004 2
LABEL 56030 56030-S012 2
SPACER 92026 92026-S127 2
RING-SNAP 92033 92033-S051 2
SEAL-OIL 92049 92049-S058 2
RING-O 92055 92055-S075 2
RING-O 92055A 92055-S076 2
RING-O 92055B 92055-S077 2
RING-O 92055C 92055-S078 2
RING-O 92055D 92055-S079 2
BAND,BOOT 92072 92072-S008 2
BAND,BOOT 92072A 92072-S010 2
SEAL 92093 92093-S044 2
BOLT 92153 92153-S350 2
BOLT,8X35 92153A 92153-S351 4
SCREW,PLUG 92172 92172-S198 2
WASHER,SEAL 92200 92200-S196 2
WASHER 92200A 92200-S197 2
NUT 92210 92210-S124 2
