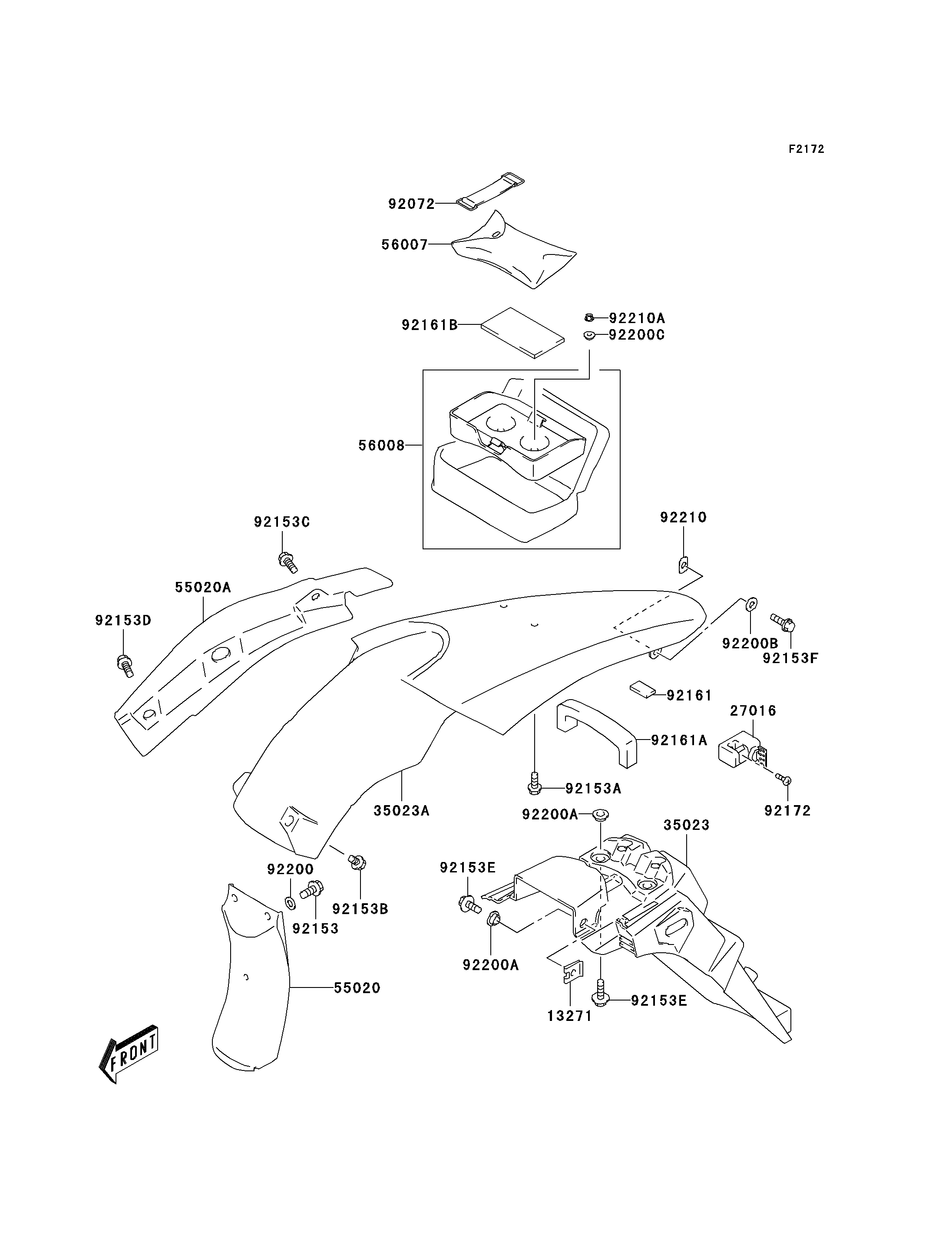

2003 KLX400SR - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
13271
27016
35023
35023A
55020
55020A
56007
56008
92072
92153
92153A
92153B
92153C
92153D
92153E
92153E
92153F
92161
92161A
92161B
92172
92200
92200A
92200A
92200B
92200C
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,FENDER FITTING 13271 13271-S058 2
LOCK-ASSY,HELMET 27016 27016-S010 1
FENDER-REAR,INNER 35023 35023-S011 1
FENDER-REAR,L.GREEN 35023A 35023-S013-535 1
GUARD,REAR FENDER,FR 55020 55020-S005 1
GUARD,FENDER 55020A 55020-S029 1
TOOL-KIT 56007 56007-S006 1
BAG,SEAT TAIL 56008 56008-S003 1
BAND,TOOL 92072 92072-S009 1
BOLT 92153 92153-S001 2
BOLT 92153A 92153-S013 2
BOLT,6X16 92153B 92153-S044 2
BOLT 92153C 92153-S161 1
BOLT 92153D 92153-S196 1
BOLT,REAR FENDER 92153E 92153-S347 4
BOLT,REAR FENDER 92153F 92153-S348 2
DAMPER,170X95X3.0 92161 92161-S014 1
DAMPER 92161A 92161-S024 1
DAMPER 92161B 92161-S123 1
SCREW,HELMET LOCK 92172 92172-S207 1
WASHER 92200 92200-S074 2
WASHER,FRONT FENDER 92200A 92200-S174 4
WASHER 92200B 92200-S194 2
WASHER 92200C 92200-S195 2
NUT,COWL 92210 92210-S023 2
NUT 92210A 92210-S129 2
