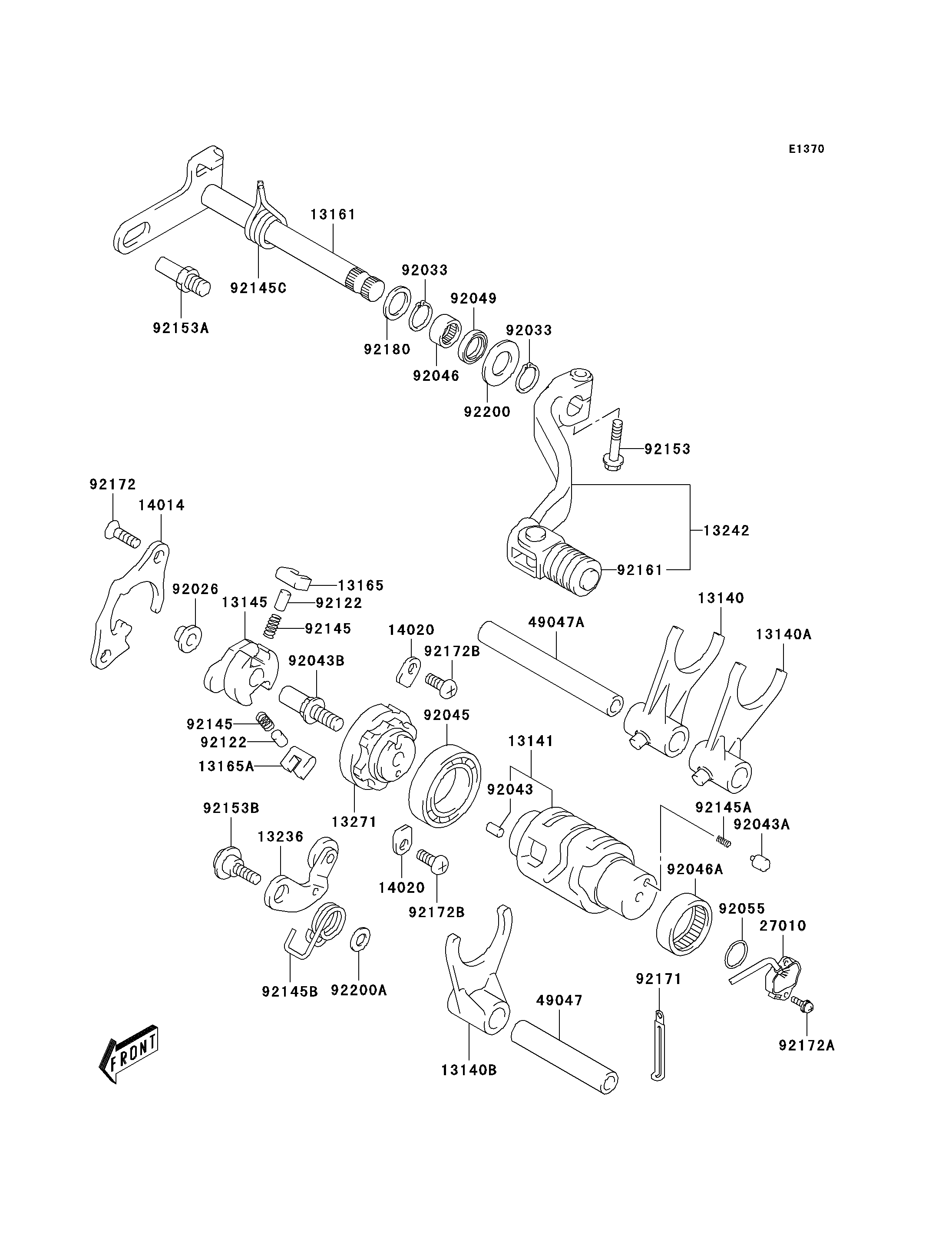

Parts Diagrams |
13140
13140
13140A
13140A
13140B
13140B
13141
13141
13145
13145
13161
13161
13165
13165
13165A
13165A
13236
13236
13242
13242
13271
13271
14014
14014
14020
14020
14020
14020
27010
27010
49047
49047
49047A
49047A
92026
92026
92033
92033
92033
92033
92043
92043
92043A
92043A
92043B
92043B
92045
92045
92046
92046
92046A
92046A
92049
92049
92055
92055
92122
92122
92122
92122
92145
92145
92145
92145
92145A
92145A
92145B
92145B
92145C
92145C
92153
92153
92153A
92153A
92153B
92153B
92161
92161
92171
92171
92172
92172
92172A
92172A
92172B
92172B
92172B
92172B
92180
92180
92200
92200
92200A
92200A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FORK-SHIFT | 13140 | 13140-S012 | 1 | ||
| FORK-SHIFT | 13140A | 13140-S013 | 1 | ||
| FORK-SHIFT | 13140B | 13140-S014 | 1 | ||
| DRUM-CHANGE | 13141 | 13141-S007 | 1 | ||
| CAM-CHANGE DRUM | 13145 | 13145-S004 | 1 | ||
| LEVER-COMP-CHANGE SHAFT | 13161 | 13161-S006 | 1 | ||
| PAWL | 13165 | 13165-S003 | 1 | ||
| PAWL | 13165A | 13165-S004 | 1 | ||
| LEVER-COMP | 13236 | 13236-S006 | 1 | ||
| LEVER-ASSY-CHANGE | 13242 | 13242-S005 | 1 | ||
| PLATE | 13271 | 13271-S046 | 1 | ||
| PLATE-POSITION | 14014 | 14014-S004 | 1 | ||
| RETAINER | 14020 | 14020-S008 | 2 | ||
| SWITCH | 27010 | 27010-S028 | 1 | ||
| ROD-SHIFT | 49047 | 49047-S007 | 1 | ||
| ROD-SHIFT | 49047A | 49047-S008 | 1 | ||
| SPACER,GEAR SHIFT CAM | 92026 | 92026-S087 | 1 | ||
| RING-SNAP | 92033 | 92033-S037 | 2 | ||
| PIN,CAM STOPPER PLATE | 92043 | 92043-S035 | 1 | ||
| PIN,GEAR SHIFT | 92043A | 92043-S038 | 2 | ||
| PIN,SHIFT CAM | 92043B | 92043-S041 | 1 | ||
| BEARING-BALL,GEAR SHIFT | 92045 | 92045-S047 | 1 | ||
| BEARING-NEEDLE,14X20X12 | 92046 | 92046-S008 | 1 | ||
| BEARING-NEEDLE,GEAR SHIFT CAM | 92046A | 92046-S020 | 1 | ||
| SEAL-OIL,GEAR SHIFT | 92049 | 92049-S050 | 1 | ||
| RING-O,26.2X2.4 | 92055 | 92055-S055 | 1 | ||
| ROLLER,5X8 | 92122 | 92122-S005 | 2 | ||
| SPRING | 92145 | 92145-S037 | 2 | ||
| SPRING | 92145A | 92145-S089 | 2 | ||
| SPRING | 92145B | 92145-S128 | 1 | ||
| SPRING | 92145C | 92145-S137 | 1 | ||
| BOLT | 92153 | 92153-S003 | 1 | ||
| BOLT | 92153A | 92153-S292 | 1 | ||
| BOLT,CAM STOPPER | 92153B | 92153-S328 | 1 | ||
| DAMPER,GEAR SHIFT PEDAL | 92161 | 92161-S057 | 1 | ||
| CLAMP,OIL HOSE NO.2 | 92171 | 92171-S132 | 1 | ||
| SCREW | 92172 | 92172-S112 | 2 | ||
| SCREW | 92172A | 92172-S132 | 2 | ||
| SCREW | 92172B | 92172-S170 | 2 | ||
| SHIM,GEAR SHIFT | 92180 | 92180-S045 | 1 | ||
| WASHER,14X29X1.50 | 92200 | 92200-S086 | 1 | ||
| WASHER | 92200A | 92200-S127 | 1 |
