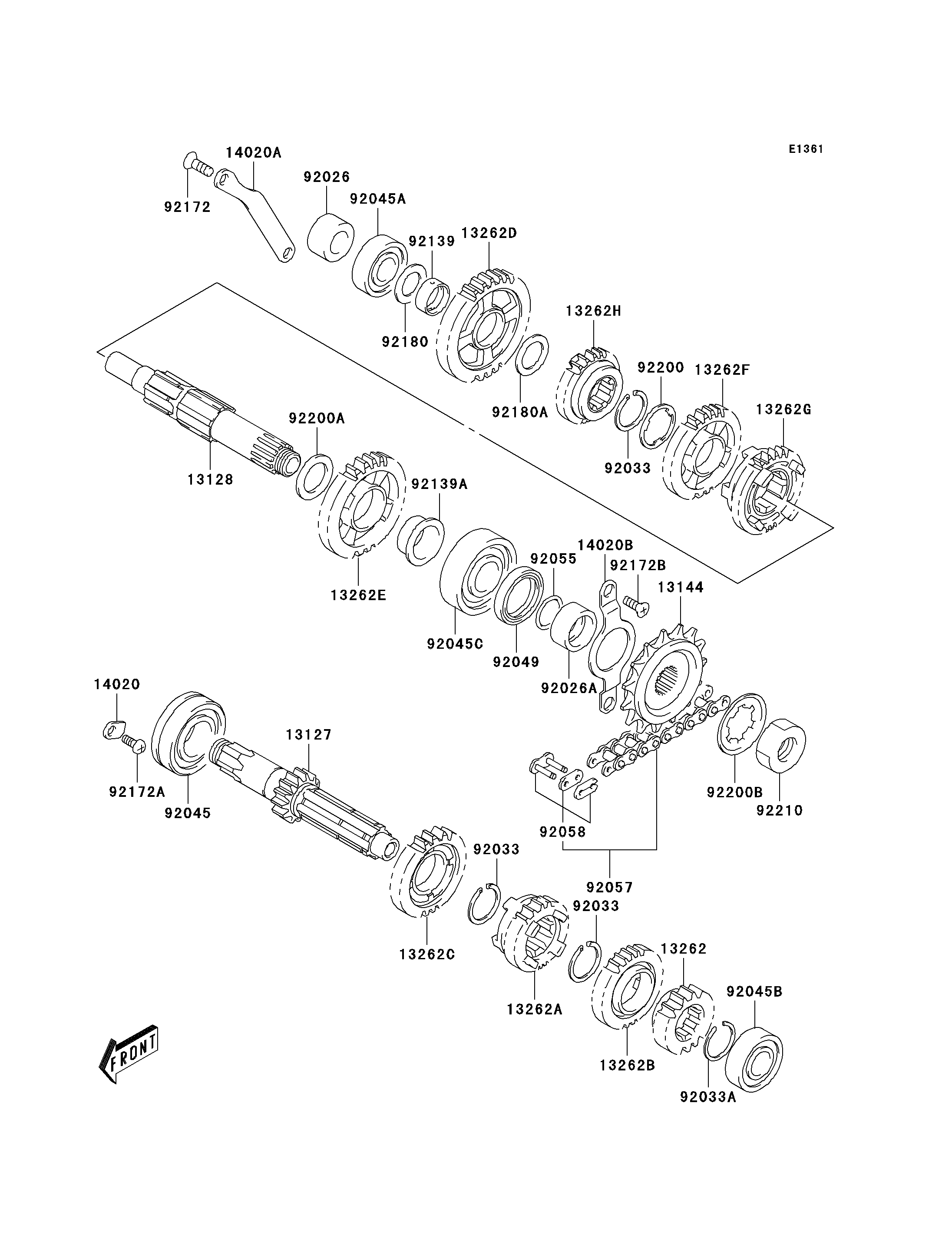

2003 KLX400SR - Transmission

DOWNLOAD PDF
SELECT A NEW PART
13127
13128
13144
13262
13262A
13262B
13262C
13262D
13262E
13262F
13262G
13262H
14020
14020A
14020B
92026
92026A
92033
92033
92033
92033A
92045
92045A
92045B
92045C
92049
92055
92057
92058
92139
92139A
92172
92172A
92172B
92180
92180A
92200
92200A
92200B
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION INPUT 13127 13127-S008 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-S010 1
SPROCKET-OUTPUT,15T 13144 13144-S008 1
GEAR,INPUT 2ND,15T 13262 13262-S024 1
GEAR,INPUT 3RD,16T 13262A 13262-S025 1
GEAR,INPUT 4TH,22T 13262B 13262-S026 1
GEAR,INPUT 5TH,22T 13262C 13262-S027 1
GEAR,OUTPUT LOW,32T 13262D 13262-S028 1
GEAR,OUTPUT 2ND,26T 13262E 13262-S029 1
GEAR,OUTPUT 3RD,22T 13262F 13262-S030 1
GEAR,OUTPUT 4TH,24T 13262G 13262-S031 1
GEAR,OUTPUT 5TH,19T 13262H 13262-S032 1
RETAINER 14020 14020-S008 2
RETAINER,KICK 14020A 14020-S011 1
RETAINER,DRIVE SHAFT 14020B 14020-S012 1
SPACER,17X30.5X16.3 92026 92026-S124 1
SPACER 92026A 92026-S125 1
RING-SNAP 92033 92033-S049 3
RING-SNAP 92033A 92033-S050 1
BEARING-BALL,25X52X15 92045 92045-S018 1
BEARING-BALL,17X40X12 92045A 92045-S035 1
BEARING-BALL 92045B 92045-S051 1
BEARING-BALL 92045C 92045-S057 1
SEAL-OIL,30X40X6 92049 92049-S019 1
RING-O,D=2.5 92055 92055-S034 1
CHAIN,DRIVE(RK520KZ0X112L) 92057 92057-S013 1
JOINT-CHAIN 92058 92058-S004 1
BUSHING 92139 92139-S032 1
BUSHING 92139A 92139-S033 1
SCREW 92172 92172-S012 2
SCREW 92172A 92172-S170 2
SCREW,RETAINER 92172B 92172-S171 2
SHIM,17X30X1.0 92180 92180-S014 1
SHIM,20X30X1.0 92180A 92180-S015 1
WASHER 92200 92200-S145 1
WASHER,20X34X1.0 92200A 92200-S187 1
WASHER 92200B 92200-S188 1
NUT 92210 92210-S126 1
