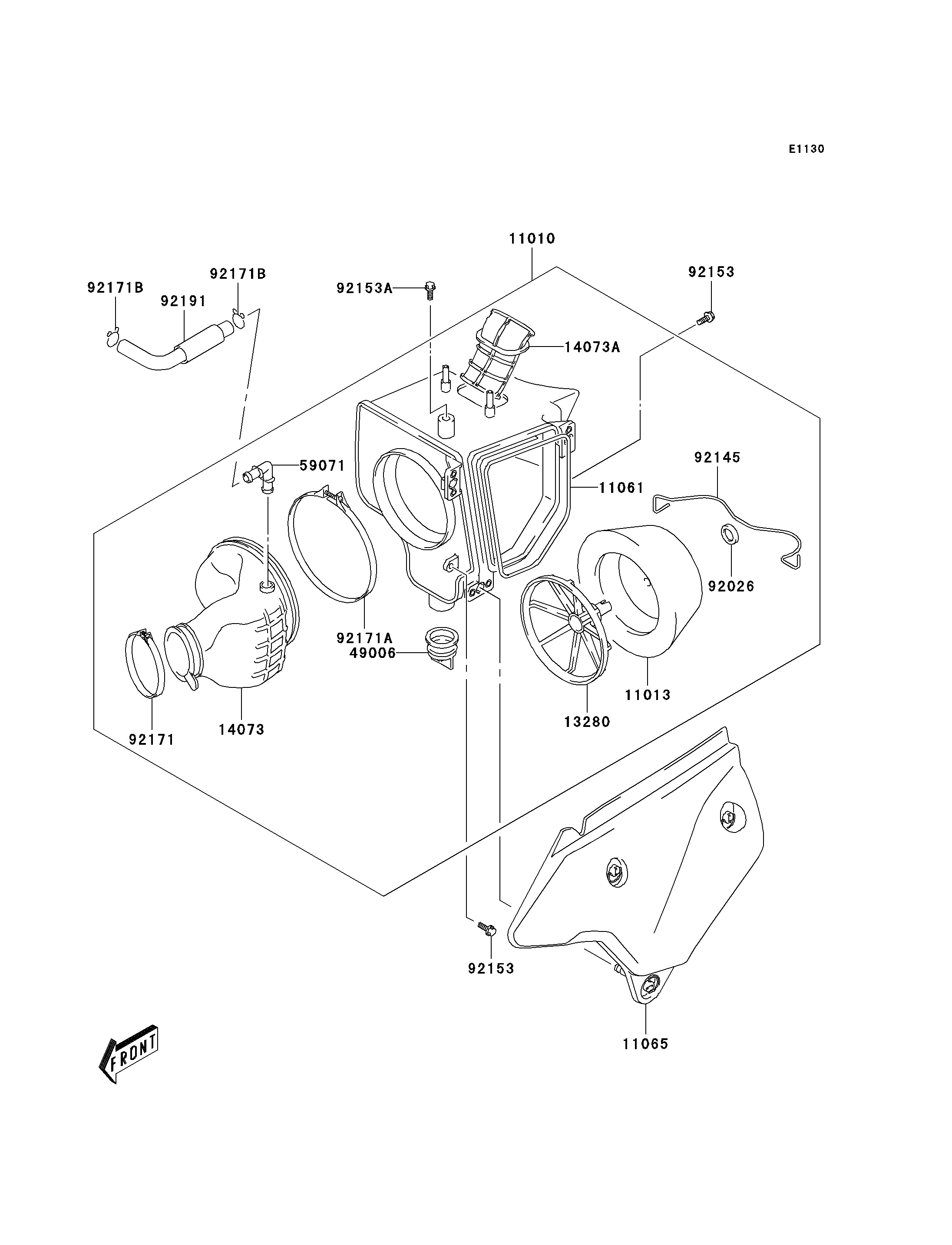

Parts Diagrams |
11010
11013
11061
11065
13280
14073
14073A
49006
59071
92026
92145
92153
92153
92153A
92171
92171A
92171B
92171B
92191
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER-ASSY-AIR | 11010 | 11010-S013 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-S010 | 1 | ||
| GASKET,AIR CLEANER | 11061 | 11061-S087 | 1 | ||
| CAP,S.WHITE | 11065 | 11065-S060-533 | 1 | ||
| HOLDER,FILTER | 13280 | 13280-S031 | 1 | ||
| DUCT,OUTLET | 14073 | 14073-S013 | 1 | ||
| DUCT,INLET | 14073A | 14073-S014 | 1 | ||
| BOOT,AIR FILTER | 49006 | 49006-S028 | 1 | ||
| JOINT | 59071 | 59071-S003 | 1 | ||
| SPACER | 92026 | 92026-S119 | 1 | ||
| SPRING | 92145 | 92145-S123 | 1 | ||
| BOLT | 92153 | 92153-S001 | 2 | ||
| BOLT,6X14.6 | 92153A | 92153-S136 | 1 | ||
| CLAMP | 92171 | 92171-S102 | 1 | ||
| CLAMP | 92171A | 92171-S112 | 1 | ||
| CLAMP,BREATHER TUBE | 92171B | 92171-S113 | 2 | ||
| TUBE,BREATHER | 92191 | 92191-S070 | 1 |
