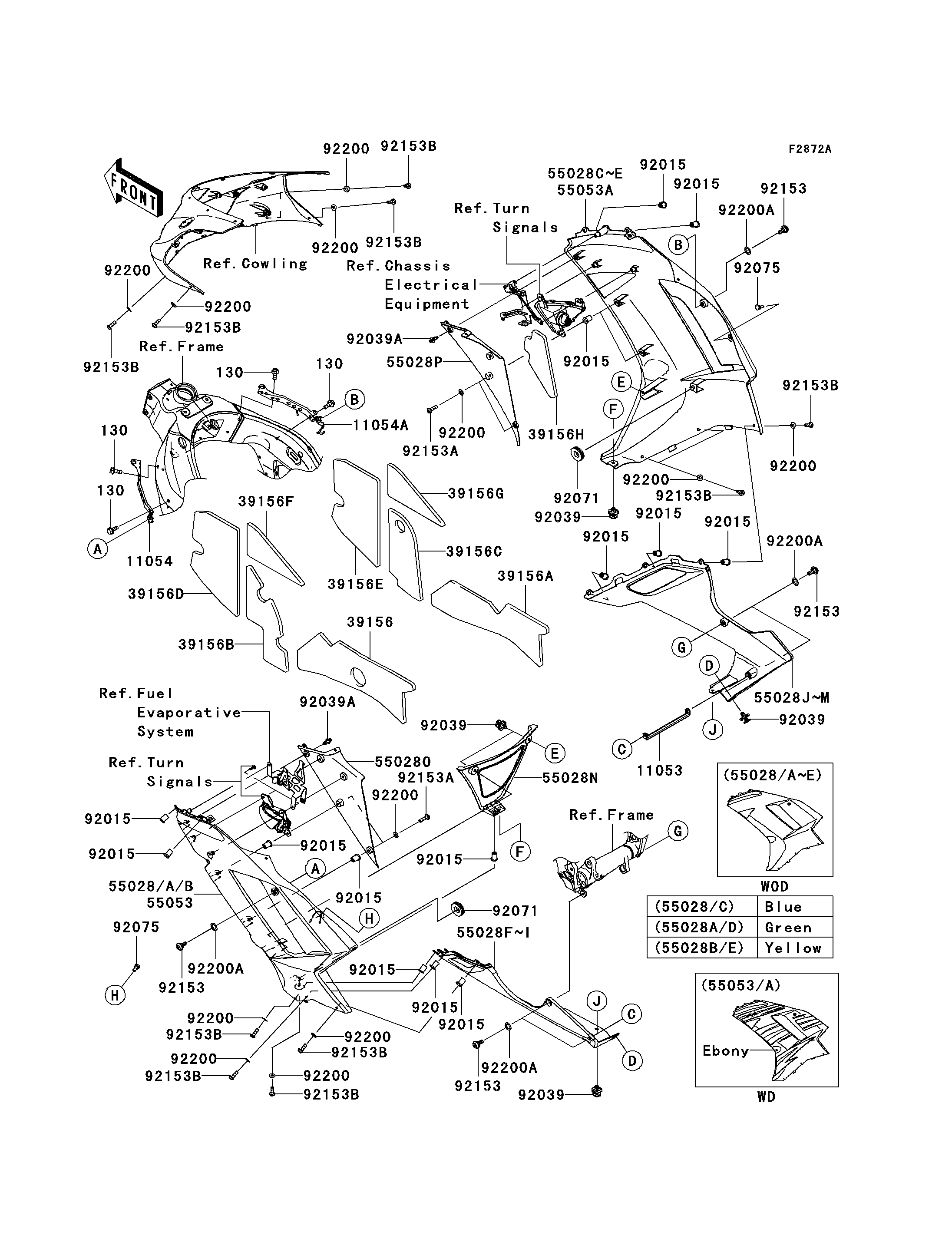

2008 Ninja® ZX™-6R - Cowling Lowers(P8F/P8FA)
11053
11053
11054
11054
11054A
11054A
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
39156E
39156E
39156F
39156F
39156G
39156G
39156H
39156H
55028
55028
55028A
55028A
55028B
55028B
55028C
55028C
55028D
55028D
55028E
55028E
55028G
55028G
55028H
55028H
55028I
55028I
55028K
55028K
55028L
55028L
55028M
55028M
55028N
55028N
55028O
55028O
55028P
55028P
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92039
92039
92039
92039
92039
92039
92039
92039
92039A
92039A
92039A
92039A
92071
92071
92071
92071
92075
92075
92075
92075
130
130
130
130
130
130
130
130
92153
92153
92153
92153
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LWR COWLING | 11053 | 11053-0402 | 1 | ||
| BRACKET,CNT COWLING,LH | 11054 | 11054-0656 | 1 | ||
| BRACKET,CNT COWLING,RH | 11054A | 11054-0657 | 1 | ||
| PAD,CNT COWLING,LWR,LH | 39156 | 39156-0226 | 1 | ||
| PAD,CNT COWLING,LWR,RH | 39156A | 39156-0227 | 1 | ||
| PAD,CNT COWLING,RR,LH | 39156B | 39156-0228 | 1 | ||
| PAD,CNT COWLING,RR,RH | 39156C | 39156-0229 | 1 | ||
| PAD,CNT COWLING,FR,LH | 39156D | 39156-0230 | 1 | ||
| PAD,CNT COWLING,FR,RH | 39156E | 39156-0231 | 1 | ||
| PAD,CNT COWLING,UPP,LH | 39156F | 39156-0232 | 1 | ||
| PAD,CNT COWLING,UPP,RH | 39156G | 39156-0233 | 1 | ||
| PAD,FR COWLING,RH | 39156H | 39156-0274 | 1 | ||
| COWLING,CNT,LH,C.P.BLUE | 55028 | 55028-0127-723 | 1 | ||
| COWLING,CNT,LH,L.GREEN | 55028A | 55028-0127-777 | 1 | ||
| COWLING,CNT,LH,V.YELLOW | 55028B | 55028-0127-789 | 1 | ||
| COWLING,CNT,RH,C.P.BLUE | 55028C | 55028-0128-723 | 1 | ||
| COWLING,CNT,RH,L.GREEN | 55028D | 55028-0128-777 | 1 | ||
| COWLING,CNT,RH,V.YELLOW | 55028E | 55028-0128-789 | 1 | ||
| COWLING,LWR,LH,BLACK | 55028G | 55028-0129-18T | 1 | ||
| COWLING,LWR,LH,C.P.BLUE | 55028H | 55028-0129-723 | 1 | ||
| COWLING,LWR,LH,V.YELLOW | 55028I | 55028-0129-789 | 1 | ||
| COWLING,LWR,RH,BLACK | 55028K | 55028-0130-18T | 1 | ||
| COWLING,LWR,RH,C.P.BLUE | 55028L | 55028-0130-723 | 1 | ||
| COWLING,LWR,RH,V.YELLOW | 55028M | 55028-0130-789 | 1 | ||
| COWLING,FR | 55028N | 55028-0131 | 1 | ||
| COWLING,FR,LH | 55028O | 55028-0133 | 1 | ||
| COWLING,FR,RH | 55028P | 55028-0134 | 1 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 15 | ||
| RIVET | 92039 | 92039-0014 | 5 | ||
| RIVET | 92039A | 92039-0023 | 2 | ||
| GROMMET | 92071 | 92071-1043 | 2 | ||
| DAMPER | 92075 | 92075-1808 | 2 | ||
| BOLT-FLANGED,6X16 | 130 | 130BB0616 | 4 | ||
| BOLT,SOCKET,6MM | 92153 | 92153-0489 | 6 | ||
| BOLT,SOCKET,5X20 | 92153A | 92153-0873 | 4 | ||
| BOLT,SOCKET,5X16 | 92153B | 92153-1244 | 11 | ||
| WASHER,NYLONE,5.3X11.5X0.5 | 92200 | 92200-0006 | 15 | ||
| WASHER,10.4X15.9X0.5 | 92200A | 92200-0157 | 6 |
