Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |

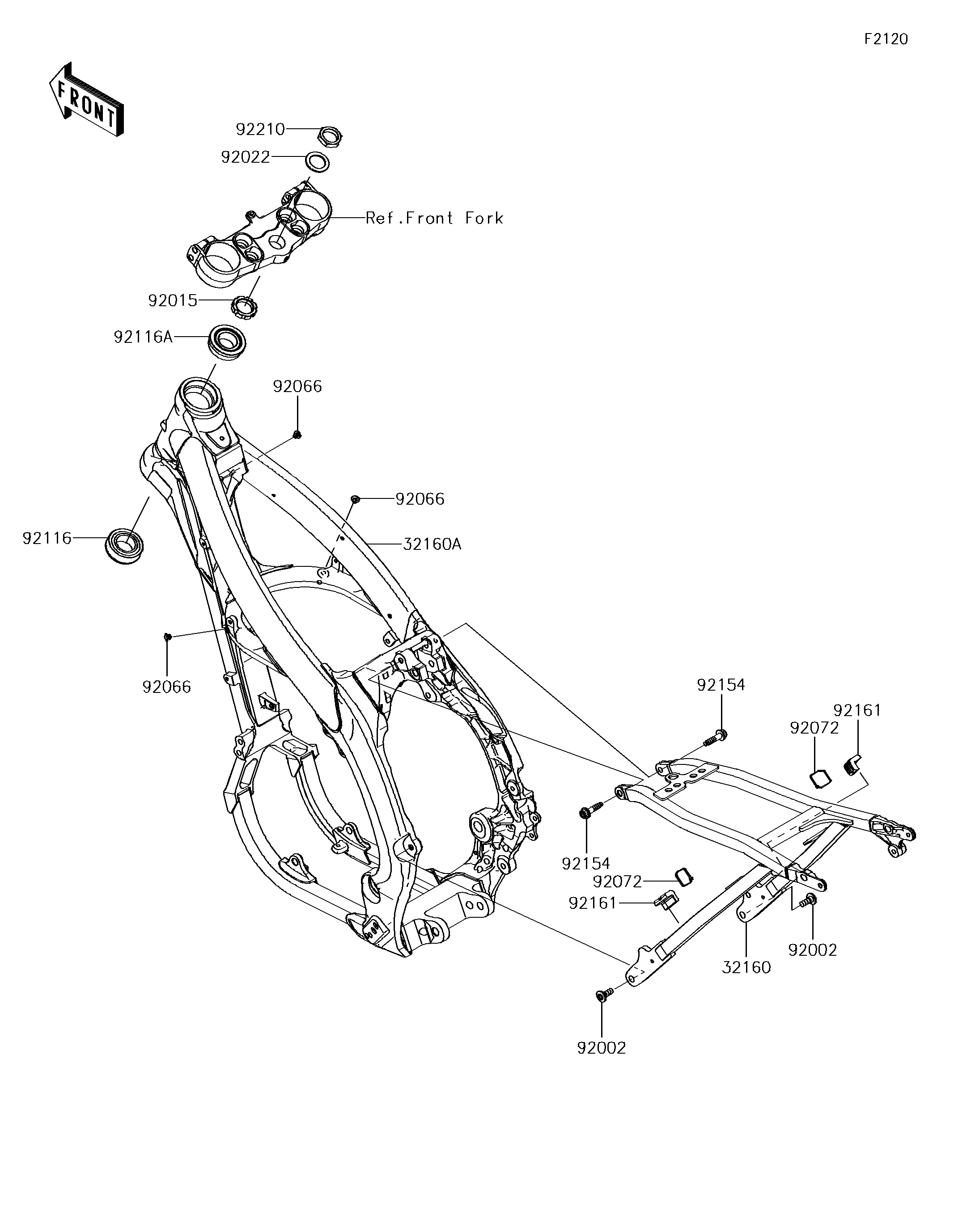

32160
32160A
92002
92002
92015
92022
92066
92066
92066
92072
92072
92116
92116A
92154
92154
92161
92161
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME-COMP,RR | 32160 | 32160-0779 | 1 | ||
| FRAME-COMP,MAIN | 32160A | 32160-0857 | 1 | ||
| BOLT,SOCKET,8X20 | 92002 | 92002-1736 | 2 | ||
| NUT,STEERING STEM,28MM | 92015 | 92015-1861 | 1 | ||
| WASHER,25X36X2.3 | 92022 | 92022-250 | 1 | ||
| PLUG | 92066 | 92066-1547 | 3 | ||
| BAND,L=148 | 92072 | 92072-3768 | 2 | ||
| BEARING-ROLLER,HI-CAP32006JRRS | 92116 | 92116-1069 | 1 | ||
| BEARING-ROLLER,HI-CAP320/28JRR | 92116A | 92116-1076 | 1 | ||
| BOLT,SOCKET,8X32 | 92154 | 92154-0024 | 2 | ||
| DAMPER | 92161 | 92161-1882 | 2 | ||
| NUT,24MM | 92210 | 92210-0066 | 1 |
