Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |

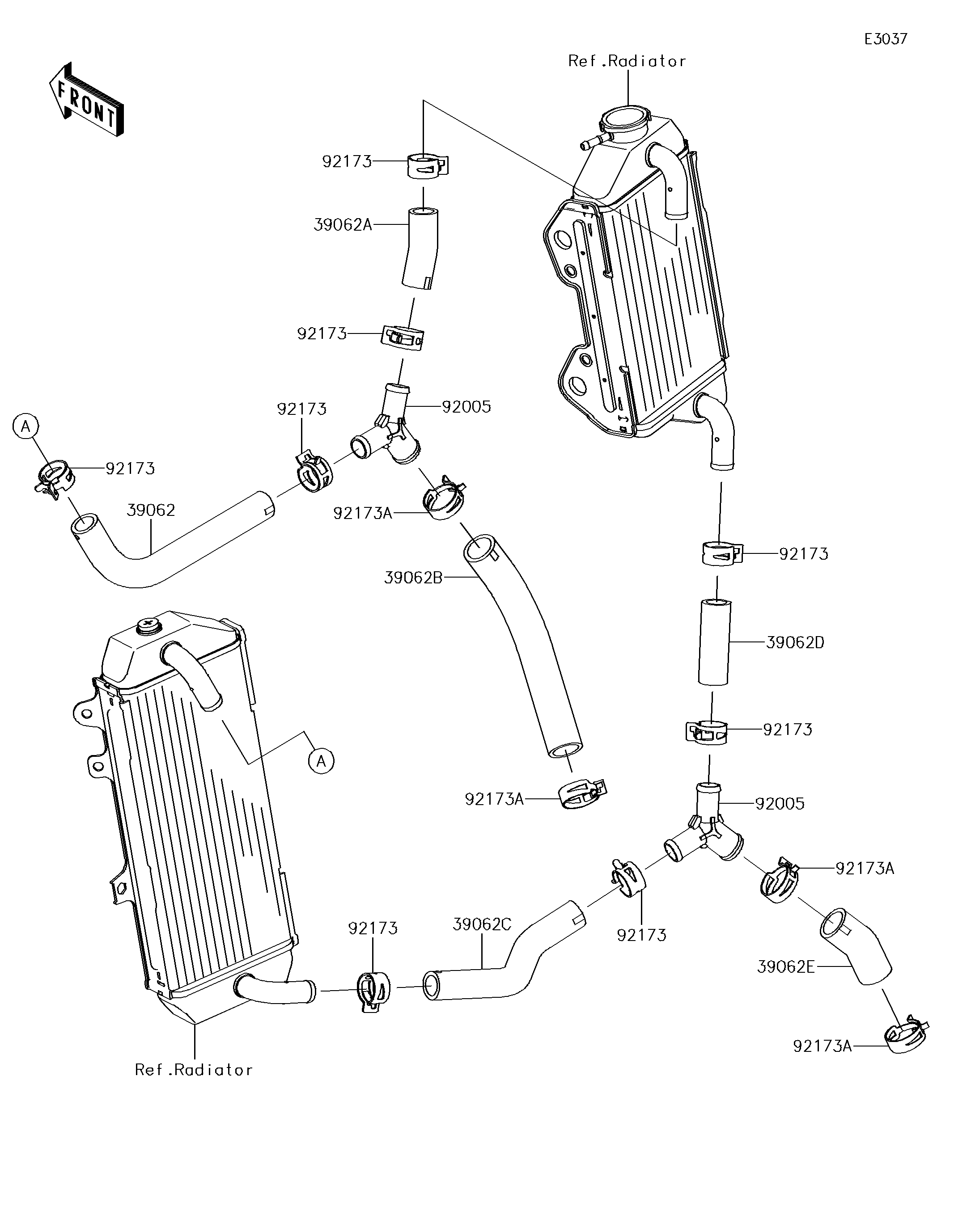

39062
39062A
39062B
39062C
39062D
39062E
92005
92005
92173
92173
92173
92173
92173
92173
92173
92173
92173A
92173A
92173A
92173A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOSE-COOLING,RAD.LH UPP-FIT. | 39062 | 39062-0707 | 1 | ||
| HOSE-COOLING,RAD.RH UPP-FIT. | 39062A | 39062-0708 | 1 | ||
| HOSE-COOLING,CYLINDER-FITTING | 39062B | 39062-0709 | 1 | ||
| HOSE-COOLING,RAD.LH LWR-FIT. | 39062C | 39062-0710 | 1 | ||
| HOSE-COOLING,RAD.RH LWR-FIT. | 39062D | 39062-0711 | 1 | ||
| HOSE-COOLING,FITTING-PUMP | 39062E | 39062-0712 | 1 | ||
| FITTING,3WAY | 92005 | 92005-0808 | 2 | ||
| CLAMP | 92173 | 92173-1417 | 8 | ||
| CLAMP | 92173A | 92173-1464 | 4 |
