Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
132
132
13271
13271
13271
13271
13271
13271
13271
13271
13271
13271
13271
13271
13271
13271
13271
13271
13272
13272
13272
13272
13272
13272
13272
13272
13272A
13272A
14001
14001
481
481
52014
52014
670
670
92005
92005
92043
92043
92043
92043
92045
92045
92045A
92045A
92045B
92045B
92045C
92045C
92045D
92045D
92045E
92045E
92045F
92045F
92045G
92045G
92045H
92045H
92046
92046
92046A
92046A
92046B
92046B
92049
92049
92049A
92049A
92051
92051
92062
92062
92062A
92062A
92065
92065
92066
92066
92066A
92066A
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92154B
92154B
92154B
92154B
92154C
92154C
92154C
92154C
92154C
92154C
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92154E
92154E
92154E
92154E
92154E
92154E
92154E
92154E
92171
92171
92173
92173
92192
92192
92200
92200
92200
92200
670A
670A
670B
670B

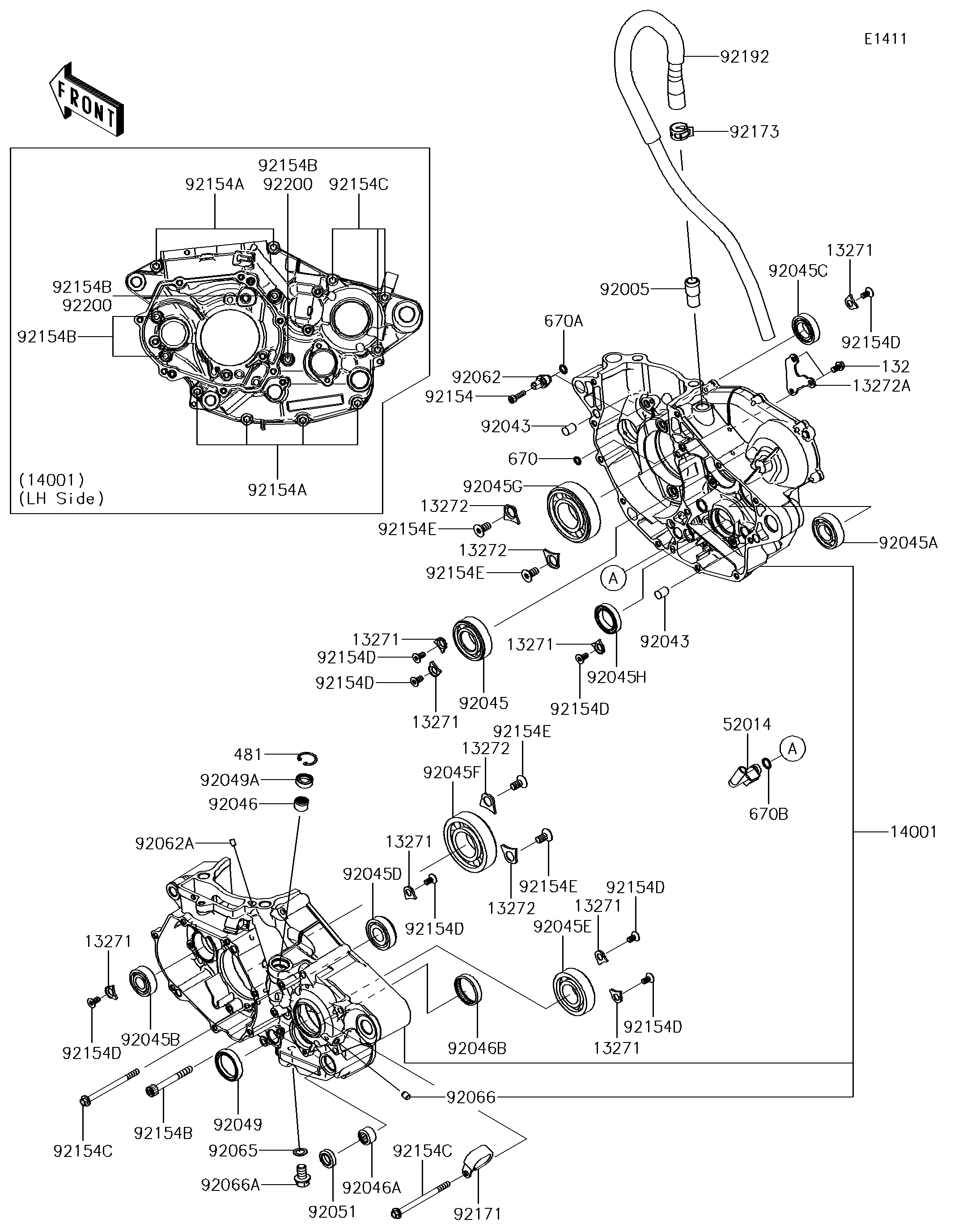

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X10 | 132 | 132BA0610 | 2 | ||
| PLATE | 13271 | 13271-0345 | 8 | ||
| PLATE | 13272 | 13272-1941 | 4 | ||
| PLATE | 13272A | 13272-1942 | 1 | ||
| SET-CRANKCASE | 14001 | 14001-0677 | 1 | ||
| CIRCLIP | 481 | 481J2100 | 1 | ||
| ELBOW | 52014 | 52014-0011 | 1 | ||
| O RING,7MM | 670 | 670D1507 | 1 | ||
| FITTING,BREATHER | 92005 | 92005-1238 | 1 | ||
| PIN,10X14 | 92043 | 92043-1506 | 2 | ||
| BEARING-BALL,25X52X15 | 92045 | 92045-0035 | 1 | ||
| BEARING-BALL,20X42X12 | 92045A | 92045-0036 | 1 | ||
| BEARING-BALL,6202SH2C3 | 92045B | 92045-0037 | 1 | ||
| BEARING-BALL,6904C3UR5 | 92045C | 92045-0038 | 1 | ||
| BEARING-BALL,3TM-5X0391LUC3 | 92045D | 92045-0057 | 1 | ||
| BEARING-BALL | 92045E | 92045-0062 | 1 | ||
| BEARING-BALL | 92045F | 92045-0132 | 1 | ||
| BEARING-BALL,32X72X19 | 92045G | 92045-0806 | 1 | ||
| BEARING-BALL,6805JRZ | 92045H | 92045-1432 | 1 | ||
| BEARING-NEEDLE,HK1210FM | 92046 | 92046-0034 | 1 | ||
| BEARING-NEEDLE,HK1312 | 92046A | 92046-1148 | 1 | ||
| BEARING-NEEDLE,7E-HKS33X38X8 | 92046B | 92046-1221 | 1 | ||
| SEAL-OIL,TC 30 40 7 | 92049 | 92049-0030 | 1 | ||
| SEAL-OIL,CLUTCH RELEASE | 92049A | 92049-1475 | 1 | ||
| SEAL-OIL,TB13225.5 | 92051 | 92051-005 | 1 | ||
| NOZZLE | 92062 | 92062-0035 | 1 | ||
| NOZZLE,6X8,SILVER | 92062A | 92062-1081 | 1 | ||
| GASKET,10.5X16X1 | 92065 | 92065-058 | 1 | ||
| PLUG,OIL LINE,7.2X8 | 92066 | 92066-1012 | 1 | ||
| PLUG,DRAIN | 92066A | 92066-1437 | 1 | ||
| BOLT,SOCKET,5X18 | 92154 | 92154-0038 | 1 | ||
| BOLT,FLANGED,6X50 | 92154A | 92154-0526 | 6 | ||
| BOLT,SOCKET,7X60 | 92154B | 92154-0527 | 4 | ||
| BOLT,FLANGED,6X85 | 92154C | 92154-0528 | 3 | ||
| BOLT,TORX | 92154D | 92154-1621 | 8 | ||
| BOLT,TORX,8X16 | 92154E | 92154-1733 | 4 | ||
| CLAMP | 92171 | 92171-0594 | 1 | ||
| CLAMP | 92173 | 92173-1463 | 1 | ||
| TUBE,BREATHER | 92192 | 92192-1472 | 1 | ||
| WASHER,7.3X13.5X1 | 92200 | 92200-1743 | 2 | ||
| O RING,8MM | 670A | 670D1508 | 1 | ||
| O RING,10MM | 670B | 670D1510 | 1 |
