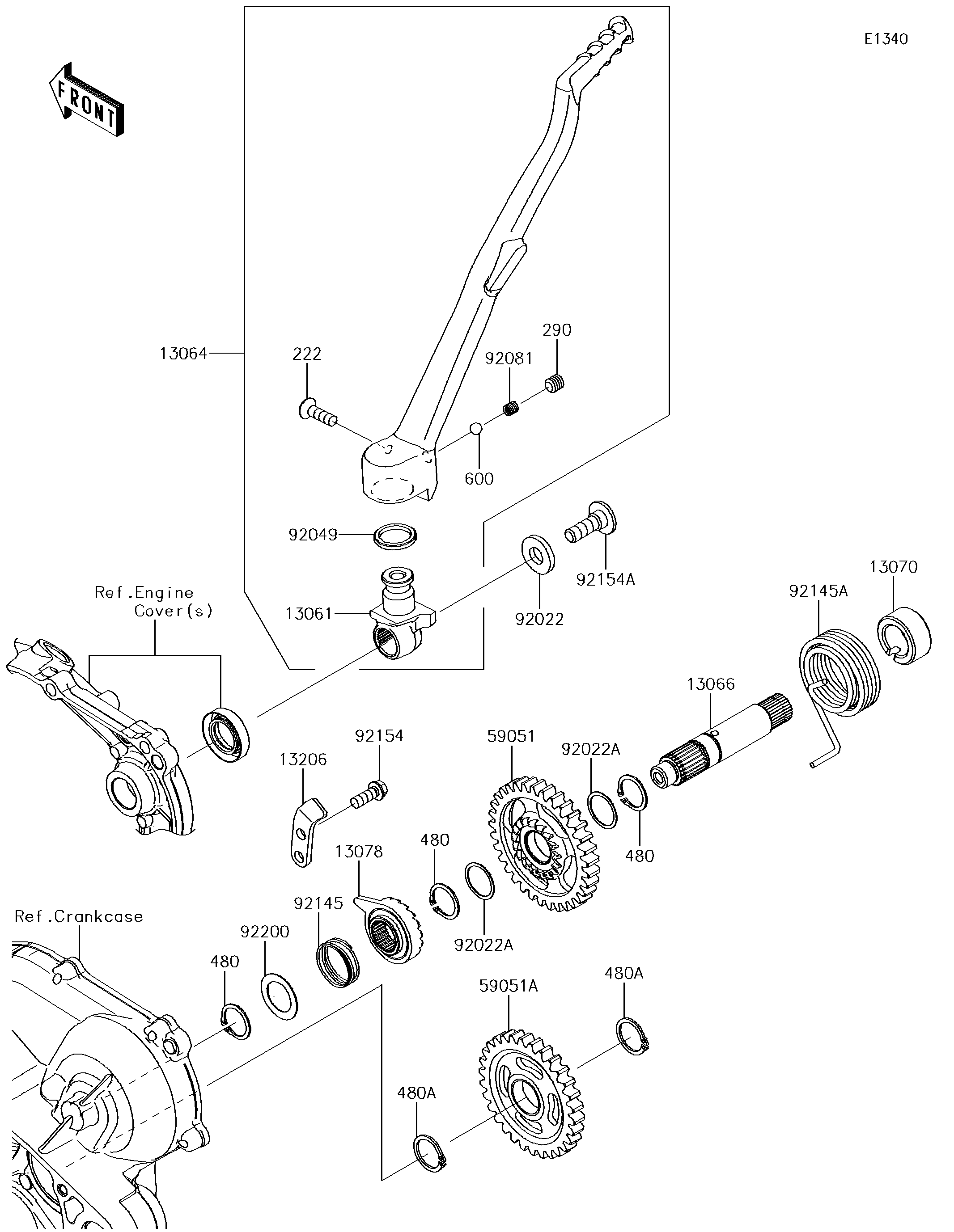

2017 KX™450F - Kickstarter Mechanism

DOWNLOAD PDF
SELECT A NEW PART
13061
13064
13066
13070
13078
13206
222
290
480
480
480
480A
480A
59051
59051A
600
92022
92022A
92022A
92049
92081
92145
92145A
92154
92154A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOSS 13061 13061-0817 1
LEVER-ASSY-KICK 13064 13064-0077 1
SHAFT-KICK 13066 13066-0017 1
GUIDE 13070 13070-0815 1
RATCHET 13078 13078-0031 1
GUIDE-KICK 13206 13206-0007 1
SCREW-CSK-RD-CROS,6X20 222 222AA0620 1
SCREW-SET-SOCKET,8X8 290 290CA0808 1
CIRCLIP-TYPE-C,18MM 480 480J1800 3
CIRCLIP-TYPE-C,19MM 480A 480J1900 2
GEAR-SPUR,33T 59051 59051-0046 1
GEAR-SPUR,KICK IDLER,30T 59051A 59051-0776 1
BALL-STEEL,1/4 600 600A0800 1
WASHER,10X22X3.2 92022 92022-1944 1
WASHER,18.3X22X0.5 92022A 92022-271 2
SEAL-OIL,KICK PEDAL 92049 92049-1387 1
SPRING,KICK PEDAL 92081 92081-020 1
SPRING 92145 92145-0499 1
SPRING,RETURN 92145A 92145-1668 1
BOLT,FLANGED,6X16 92154 92154-1926 1
BOLT,SOCKET,8X25 92154A 92154-1943 1
WASHER,18.3X27.5X0.5 92200 92200-0378 1
