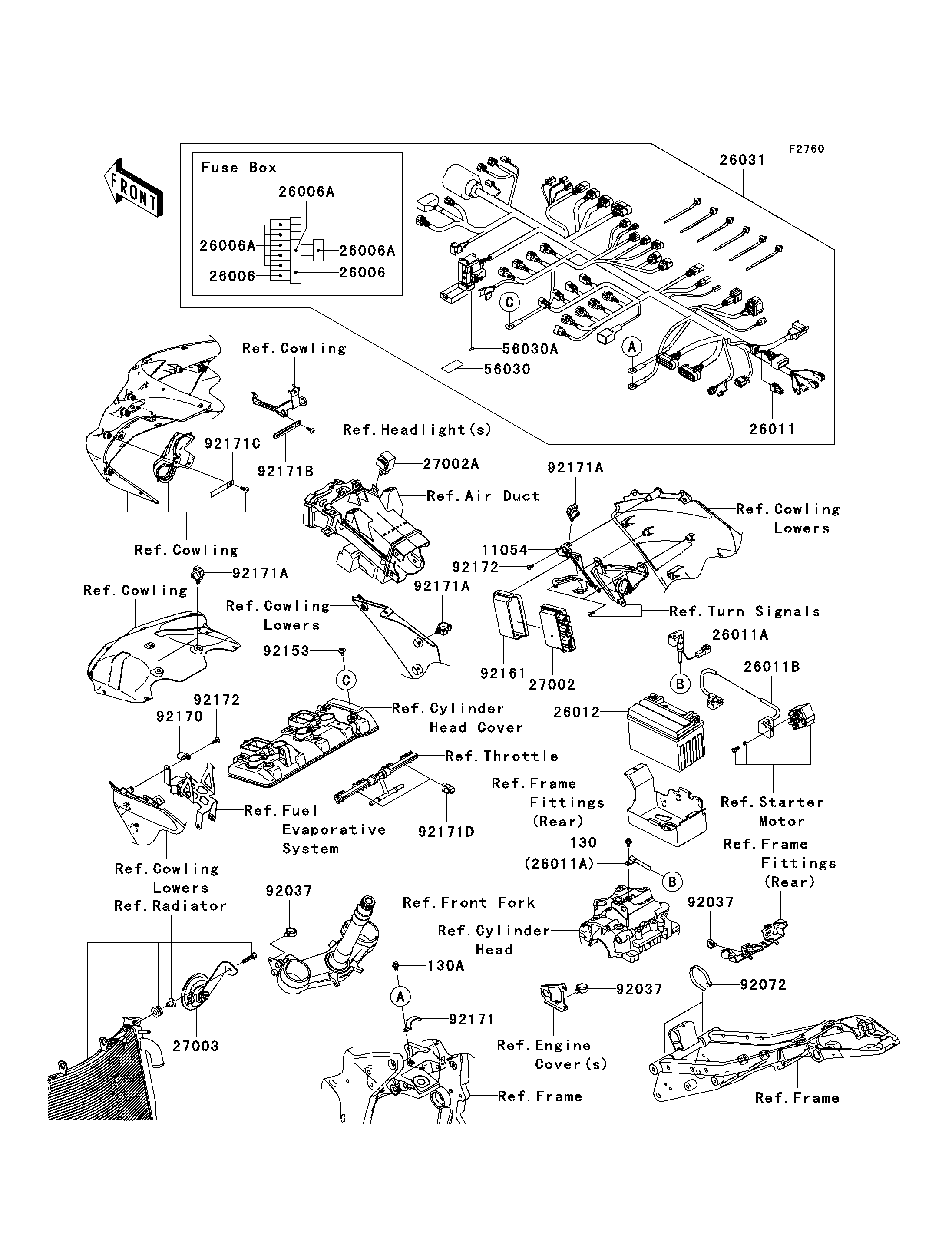

2008 Ninja® ZX™-6R - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130A
11054
26006
26006
26006A
26006A
26006A
26011
26011A
26011B
26012
26031
27002
27002A
27003
56030
56030A
92037
92037
92037
92072
92153
92161
92170
92171
92171A
92171A
92171A
92171B
92171C
92171D
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,6X12 130A 130BA0612 1
BRACKET,RELAY BOX 11054 11054-0865 1
FUSE,15A 26006 26006-0001 2
FUSE,10A 26006A 26006-1078 7
WIRE-LEAD 26011 26011-0037 1
WIRE-LEAD,BATTERY(-) 26011A 26011-0128 1
WIRE-LEAD,BATTERY(+) 26011B 26011-1764 1
BATTERY,YTX9-BS,12V 8AH 26012 26012-0088 1
HARNESS,MAIN 26031 26031-0561 1
RELAY-ASSY 27002 27002-0007 1
RELAY-ASSY,TURN SIGNAL 27002A 27002-1101 1
HORN 27003 27003-0030 1
LABEL,FUSE BOX 56030 56030-0091 1
LABEL,FUSE BOX 56030A 56030-0139 1
CLAMP,HOSE 92037 92037-1827 3
BAND,L=140 92072 92072-1293 2
BOLT,SOCKET,6X10 92153 92153-0410 1
DAMPER,RELAY BOX 92161 92161-0203 1
CLAMP 92170 92170-1577 1
CLAMP 92171 92171-0011 1
CLAMP,BRAKE HOSE 92171A 92171-0316 4
CLAMP 92171B 92171-0462 1
CLAMP 92171C 92171-0652 1
CLAMP 92171D 92171-0974 2
SCREW,TAPPING,5X16 92172 92172-0175 2
