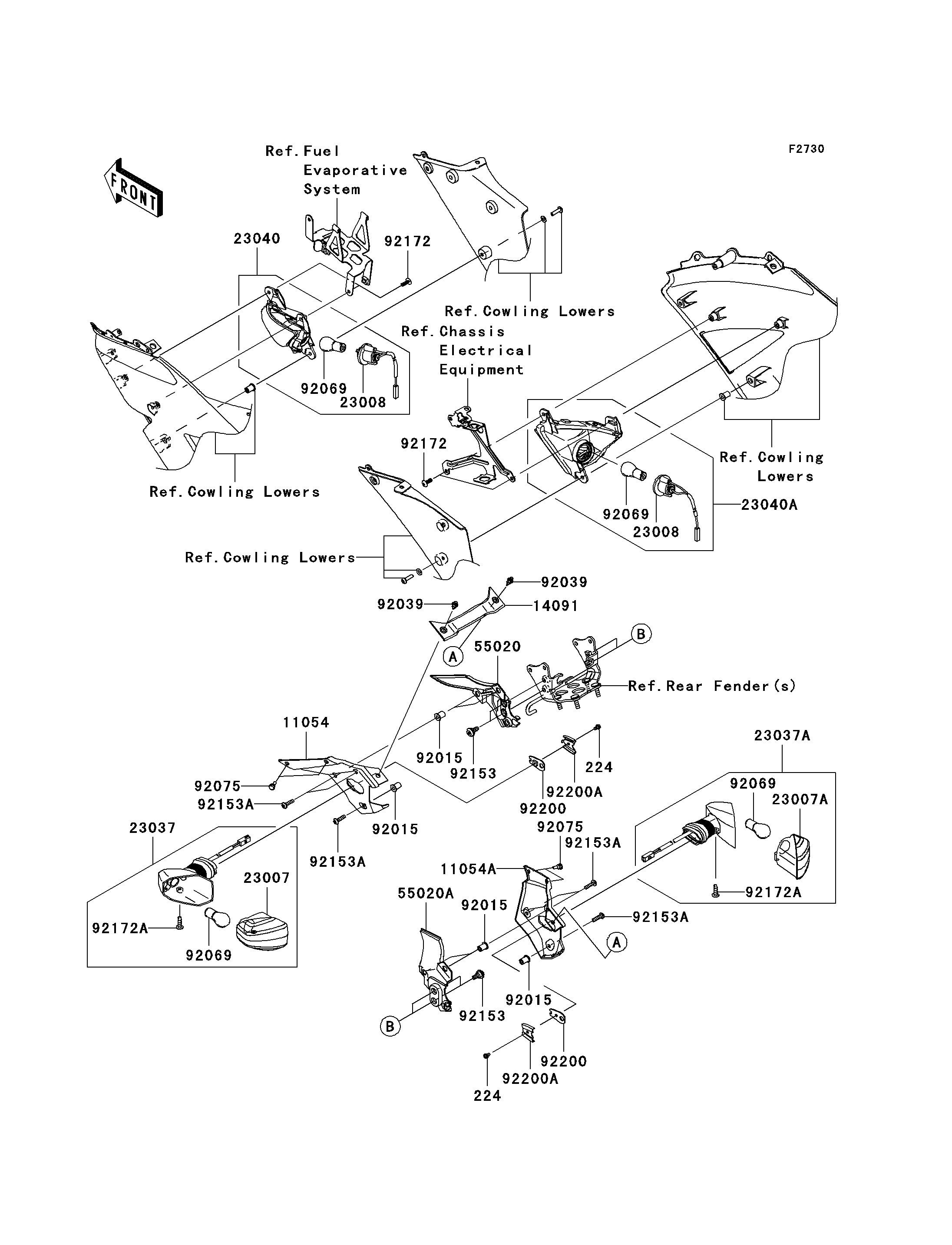

2008 Ninja® ZX™-6R - Turn Signals

DOWNLOAD PDF
SELECT A NEW PART
224
224
11054
11054A
14091
23007
23007A
23008
23008
23037
23037A
23040
23040A
55020
55020A
92015
92015
92015
92015
92039
92039
92069
92069
92069
92069
92075
92075
92153
92153
92153A
92153A
92153A
92153A
92172
92172
92172A
92172A
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-WP-CROS,4X8 224 224AB0408 2
BRACKET,REAR SIGNAL LAMP,LH 11054 11054-0888 1
BRACKET,REAR SIGNAL LAMP,RH 11054A 11054-0889 1
COVER,REAR SIGNAL LAMP 14091 14091-0685 1
LENS-COMP,SIGNAL LAMP,RR,LH 23007 23007-0063 1
LENS-COMP,SIGNAL LAMP,RR,RH 23007A 23007-0064 1
SOCKET-ASSY,SIGNAL LAMP,FR 23008 23008-0044 2
LAMP-ASSY-SIGNAL,RR,LH 23037 23037-0123 1
LAMP-ASSY-SIGNAL,RR,RH 23037A 23037-0124 1
LAMP-SIGNAL,FR,LH 23040 23040-0057 1
LAMP-SIGNAL,FR,RH 23040A 23040-0058 1
GUARD,HARNESS,LH 55020 55020-0293 1
GUARD,HARNESS,RH 55020A 55020-0294 1
NUT,WELL,5MM 92015 92015-1757 6
RIVET 92039 92039-0023 2
BULB,12V 21W 92069 92069-1125 4
DAMPER 92075 92075-1808 4
BOLT,SOCKET,6MM 92153 92153-0489 4
BOLT,SOCKET,5X16 92153A 92153-1244 6
SCREW,TAPPING,5X16 92172 92172-0175 4
SCREW,TAPPING 4X12 92172A 92172-0242 2
WASHER,SIGNAL LAMP 92200 92200-0164 2
WASHER,SIGNAL LAMP 92200A 92200-0165 2
