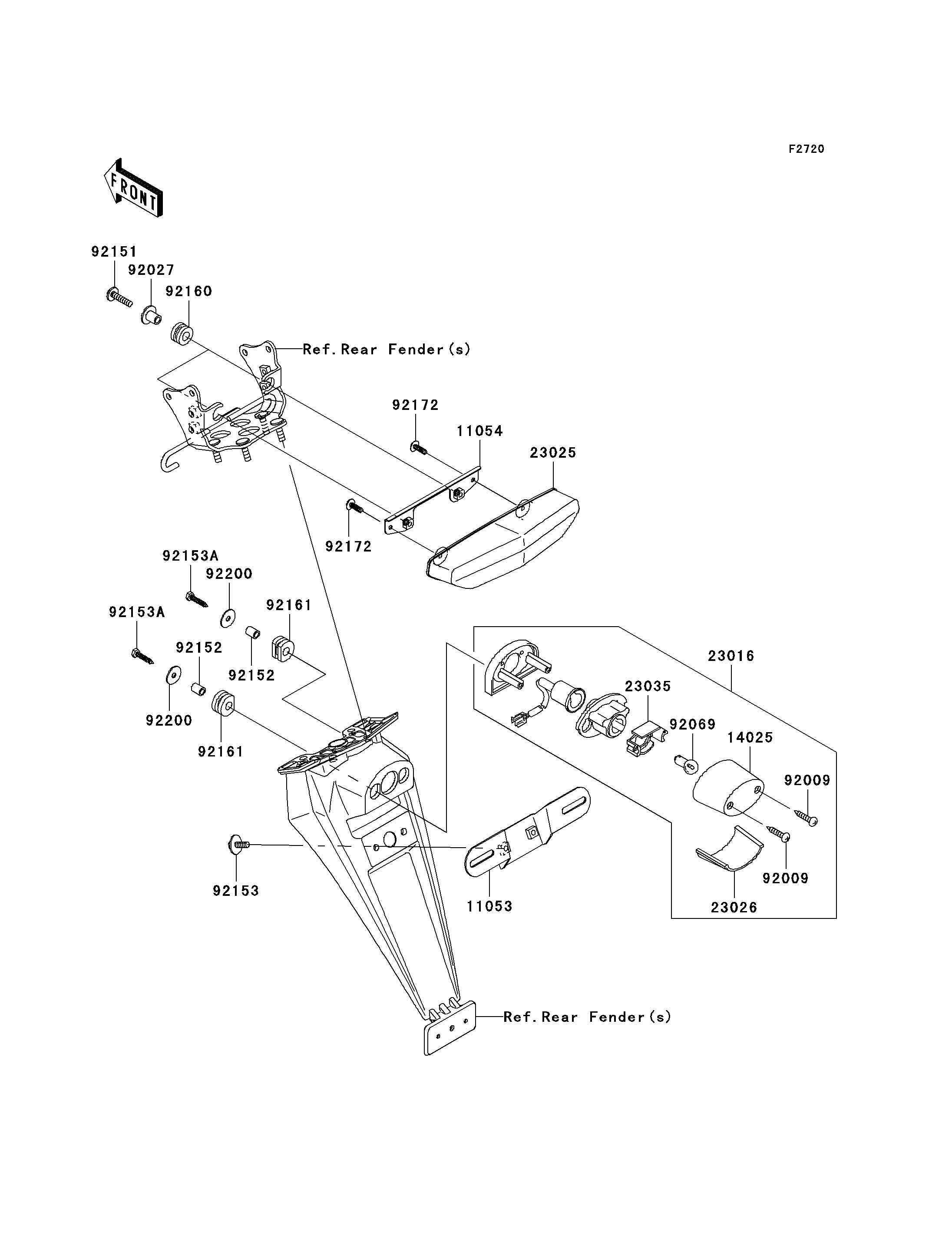

2008 Ninja® ZX™-6R - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
11053
11054
14025
23016
23025
23026
23035
92009
92009
92027
92069
92151
92152
92152
92153
92153A
92153A
92160
92161
92161
92172
92172
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LICENSE 11053 11053-0400 1
BRACKET,TAIL LAMP 11054 11054-0883 1
COVER,LICENSE LAMP 14025 14025-1725 1
LAMP-ASSY,LICENSE 23016 23016-0014 1
LAMP-TAIL 23025 23025-0035 1
LENS,LICENSE LAMP 23026 23026-1064 1
REFLECTOR-LAMP,LICENSE 23035 23035-1066 1
SCREW,TAPPING,4X20 92009 92009-1378 2
COLLAR 92027 92027-1183 2
BULB,12V 5W 92069 92069-1055 1
BOLT,SOCKET,6X25 92151 92151-1611 2
COLLAR,6X9X11.5 92152 92152-0372 2
BOLT,6X16 92153 92153-0684 2
BOLT,TAPPING,5X25 92153A 92153-1424 2
DAMPER 92160 92160-1167 2
DAMPER 92161 92161-1313 2
SCREW,TAPPING,5X16 92172 92172-0175 2
WASHER,5.5X20X1.2 92200 92200-0284 2
