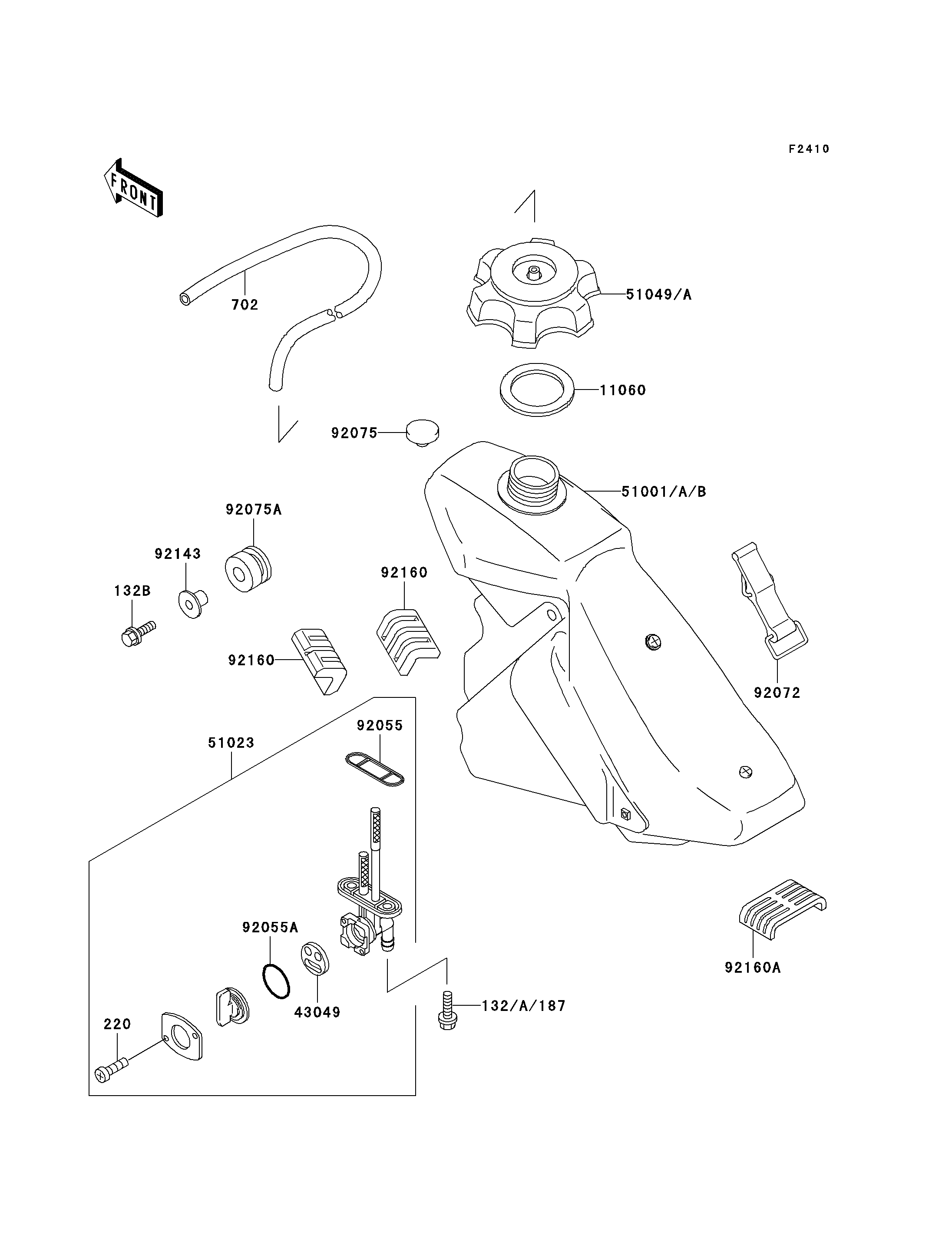

1996 KLX250R - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
132
132B
220
702
11060
43049
51001A
51023
51049A
92055
92055A
92072
92075
92075A
92143
92160
92160
92160A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0612 2
BOLT-FLANGED-SMALL 132B 132G0620 2
SCREW-PAN-CROS 220 220B0308 2
TUBE-RUBBER,5X350 702 702A05350 1
GASKET,FUEL TANK CAP 11060 11060-1340 1
PACKING,TAP VALVE 43049 43049-1066 1
TANK-COMP-FUEL,L.GREEN 51001A 51001-1470-6W 1
TAP-ASSY,FUEL 51023 51023-1198 1
CAP-TANK,FUEL 51049A 51049-1104 1
RING-O,FUEL TAP PACKING 92055 92055-1112 1
RING-O,TAP LEVER 92055A 92055-1419 1
BAND,FUEL TANK 92072 92072-1229 1
DAMPER 92075 92075-005 1
DAMPER,RUBBER 92075A 92075-1123 2
COLLAR 92143 92143-1353 2
DAMPER,FUEL TANK 92160 92160-1328 2
DAMPER,FUEL TANK,RR 92160A 92160-1397 1
