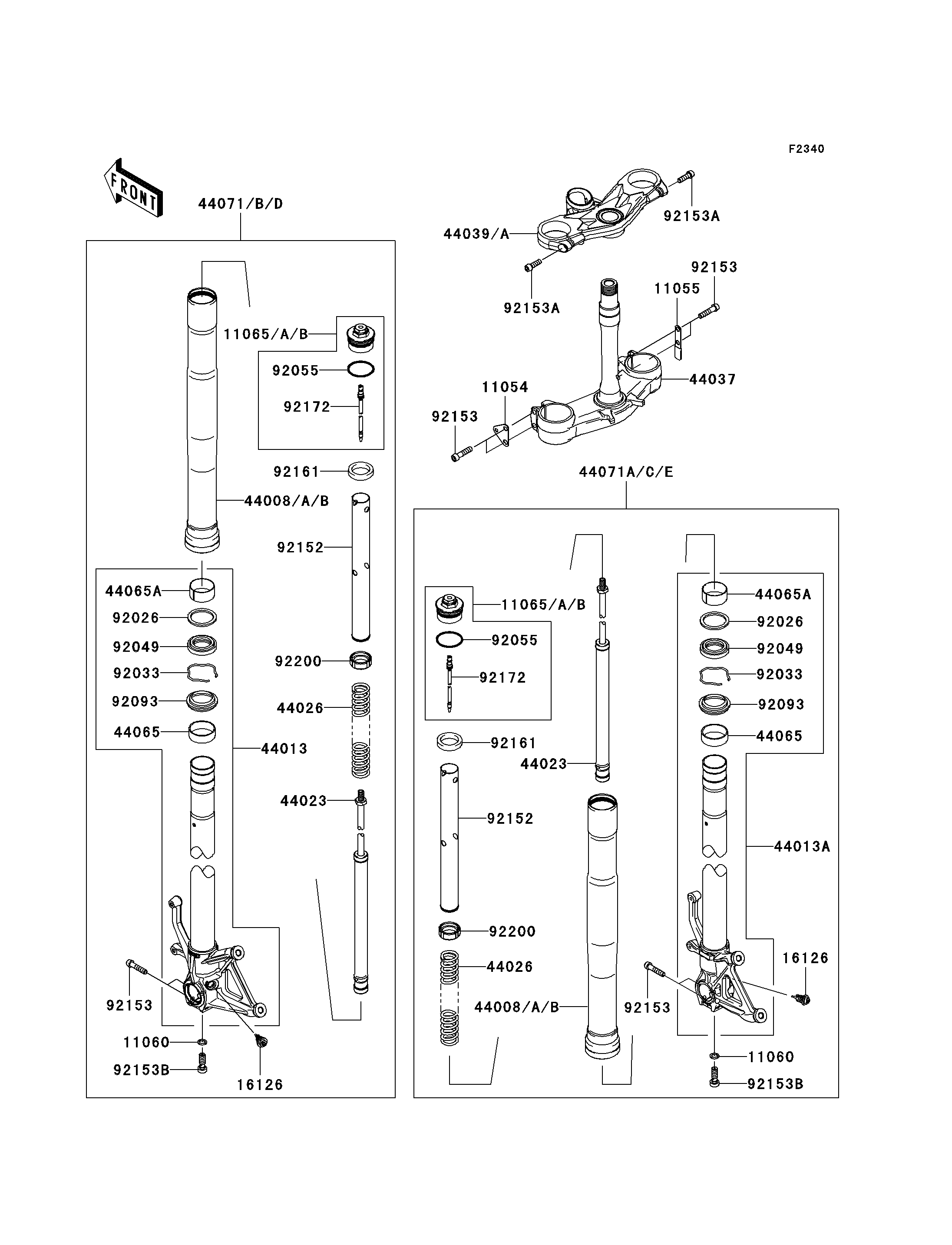

2008 Ninja® ZX™-6R - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11054
11055
11060
11060
11065
11065
11065B
11065B
16126
16126
44008
44008
44008B
44008B
44013
44013A
44023
44023
44026
44026
44037
44039A
44065
44065
44065A
44065A
44071
44071A
44071B
44071C
92026
92026
92033
92033
92049
92049
92055
92055
92093
92093
92152
92152
92153
92153
92153
92153
92153A
92153A
92153B
92153B
92161
92161
92172
92172
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11054 11054-0880 1
BRACKET 11055 11055-0002 1
GASKET,FORK CYLINDER BOLT 11060 11060-1180 2
CAP,FORK,SILVER 11065 11065-0184-KX 2
CAP,FORK,A.BLACK 11065B 11065-0184-499 2
VALVE,FORK 16126 16126-0031 2
PIPE-FORK OUTER,SILVER 44008 44008-0028-KX 2
PIPE-FORK OUTER,A.BLACK 44008B 44008-0028-499 2
PIPE-FORK INNER,LH,BLACK 44013 44013-0071-18R 1
PIPE-FORK INNER,RH,BLACK 44013A 44013-0072-18R 1
CYLINDER-SET-FORK 44023 44023-0051 2
SPRING-FRONT FORK 44026 44026-0100 2
HOLDER-FORK UNDER 44037 44037-0074 1
HOLDER-FORK UPPER,GOLD 44039A 44039-0072-829 1
BUSHING-FRONT FORK,GUIDE 44065 44065-0001 2
BUSHING-FRONT FORK,SLIDE 44065A 44065-0002 2
DAMPER-ASSY,FORK,LH,SILVER 44071 44071-5038 1
DAMPER-ASSY,FORK,RH,SILVER 44071A 44071-5039 1
DAMPER-ASSY,FORK,LH,RED 44071B 44071-5040 1
DAMPER-ASSY,FORK,RH,RED 44071C 44071-5041 1
SPACER,FORK OUTER 92026 92026-1276 2
RING-SNAP 92033 92033-1222 2
SEAL-OIL 92049 92049-0058 2
RING-O 92055 92055-0142 2
SEAL,DUST 92093 92093-0035 2
COLLAR,FORK,L=432 92152 92152-0522 2
BOLT 92153 92153-0854 8
BOLT 92153A 92153-0855 2
BOLT 92153B 92153-1771 2
DAMPER 92161 92161-0440 2
SCREW 92172 92172-0290 2
WASHER 92200 92200-0343 2
