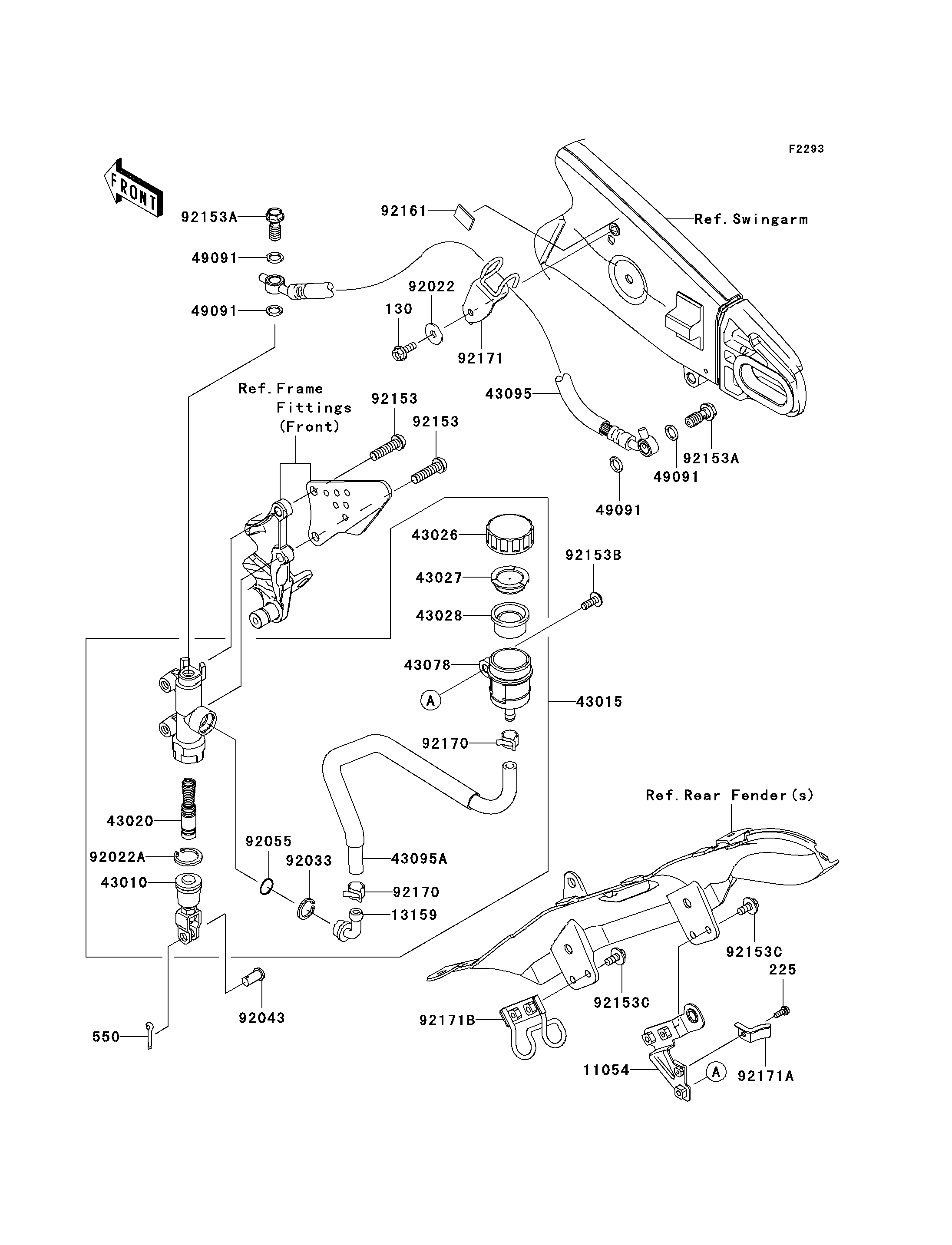

2008 Ninja® ZX™-6R - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
225
550
11054
13159
43010
43015
43020
43026
43027
43028
43078
43095
43095A
49091
49091
49091
49091
92022
92022A
92033
92043
92055
92153
92153
92153A
92153A
92153B
92153C
92153C
92161
92170
92170
92171
92171A
92171B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130BB0616 1
SCREW-PAN-WSP-CROS,4X12 225 225AB0412 1
PIN-COTTER,2.0X15 550 550AA2015 1
BRACKET,RESERVOIR TANK 11054 11054-0755 1
CONNECTOR 13159 13159-1056 1
ROD-ASSY-BRAKE 43010 43010-1062 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0096 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-0009 1
PLATE-DIAPHRAGM 43027 43027-1053 1
DIAPHRAGM 43028 43028-1065 1
RESERVOIR 43078 43078-0040 1
HOSE-BRAKE,RR 43095 43095-0289 1
HOSE-BRAKE,RR M/CYLINDER 43095A 43095-0315 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 1
WASHER,CIRCRIP 92022A 92022-1601 1
RING-SNAP,20.5MM 92033 92033-1186 1
PIN,8X17 92043 92043-0104 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
BOLT,SOCKET,8X30 92153 92153-0393 2
BOLT,OIL,L=23 92153A 92153-0627 2
BOLT,SOCKET,6X16 92153B 92153-0817 1
BOLT,FLANGED,6X14 92153C 92153-1857 4
DAMPER 92161 92161-0273 1
CLAMP,HOSE 92170 92170-1091 2
CLAMP,BRAKE HOSE 92171 92171-0480 1
CLAMP,RESERVOIR TANK 92171A 92171-0776 1
CLAMP,HOSE 92171B 92171-0778 1
