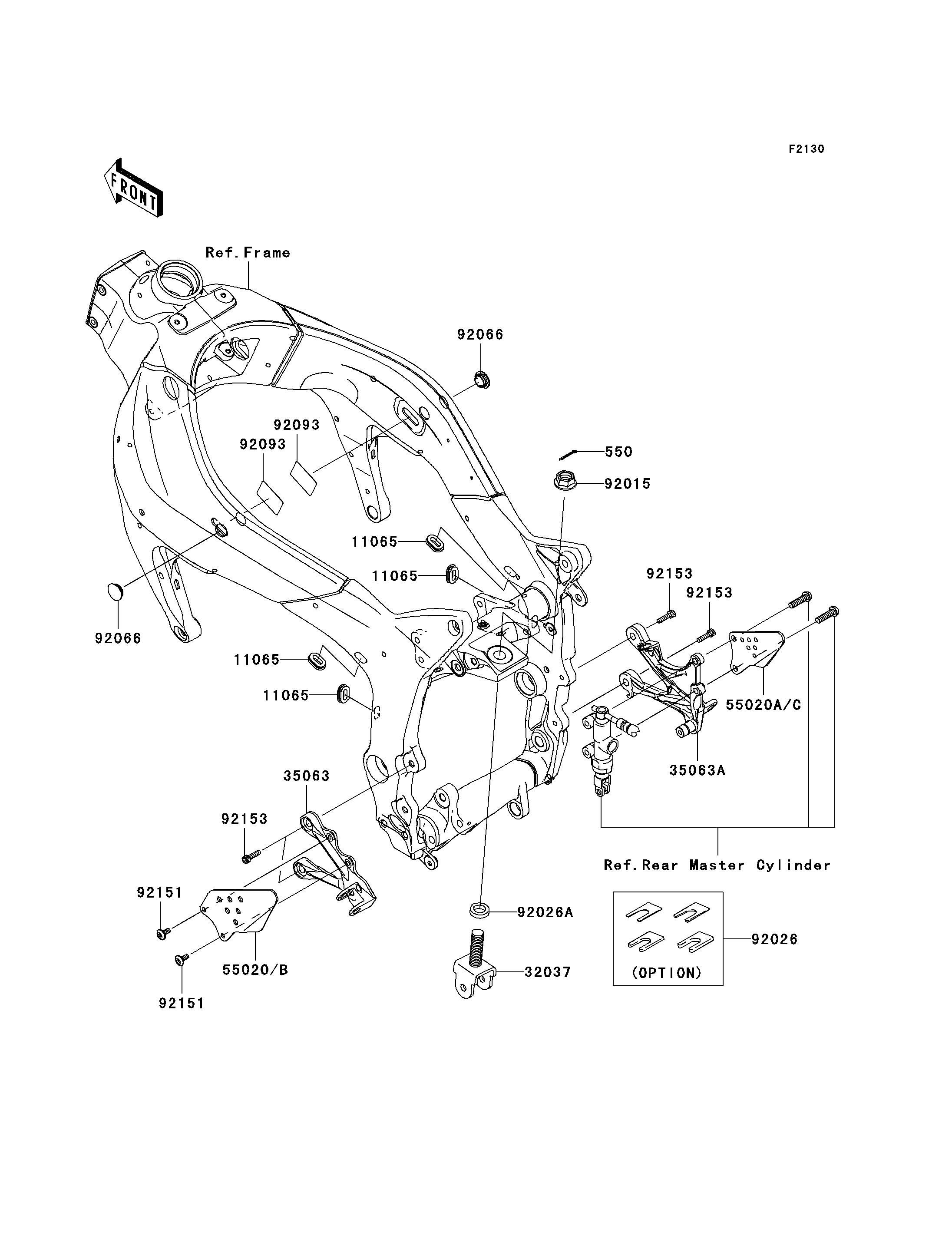

2008 Ninja® ZX™-6R - Frame Fittings(Front)
550
11065
11065
11065
11065
32037
35063
35063A
55020B
55020C
92015
92026
92026A
92066
92066
92093
92093
92151
92151
92153
92153
92153
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PIN-COTTER,3X25 | 550 | 550S3025 | 1 | ||
| CAP | 11065 | 11065-0095 | 4 | ||
| BRACKET-SHOCKABSORBER | 32037 | 32037-1887 | 1 | ||
| STAY,FR,LH,F.BLACK | 35063 | 35063-0160-W9 | 1 | ||
| STAY,FR,RH,F.BLACK | 35063A | 35063-0419-W9 | 1 | ||
| GUARD,FRONT STEP,LH | 55020B | 55020-0412 | 1 | ||
| GUARD,FRONT STEP,RH | 55020C | 55020-0413 | 1 | ||
| NUT,FLANGED,16MM | 92015 | 92015-1881 | 1 | ||
| SPACER,SET | 92026 | 92026-1586 | 1 | (OPTION) | |
| SPACER,16.5X26X6 | 92026A | 92026-1594 | 1 | ||
| PLUG | 92066 | 92066-0096 | 2 | ||
| SEAL | 92093 | 92093-0034 | 2 | ||
| BOLT,SOCKET,6X14 | 92151 | 92151-1654 | 2 | ||
| BOLT,SOCKET,8X20 | 92153 | 92153-1621 | 4 |
