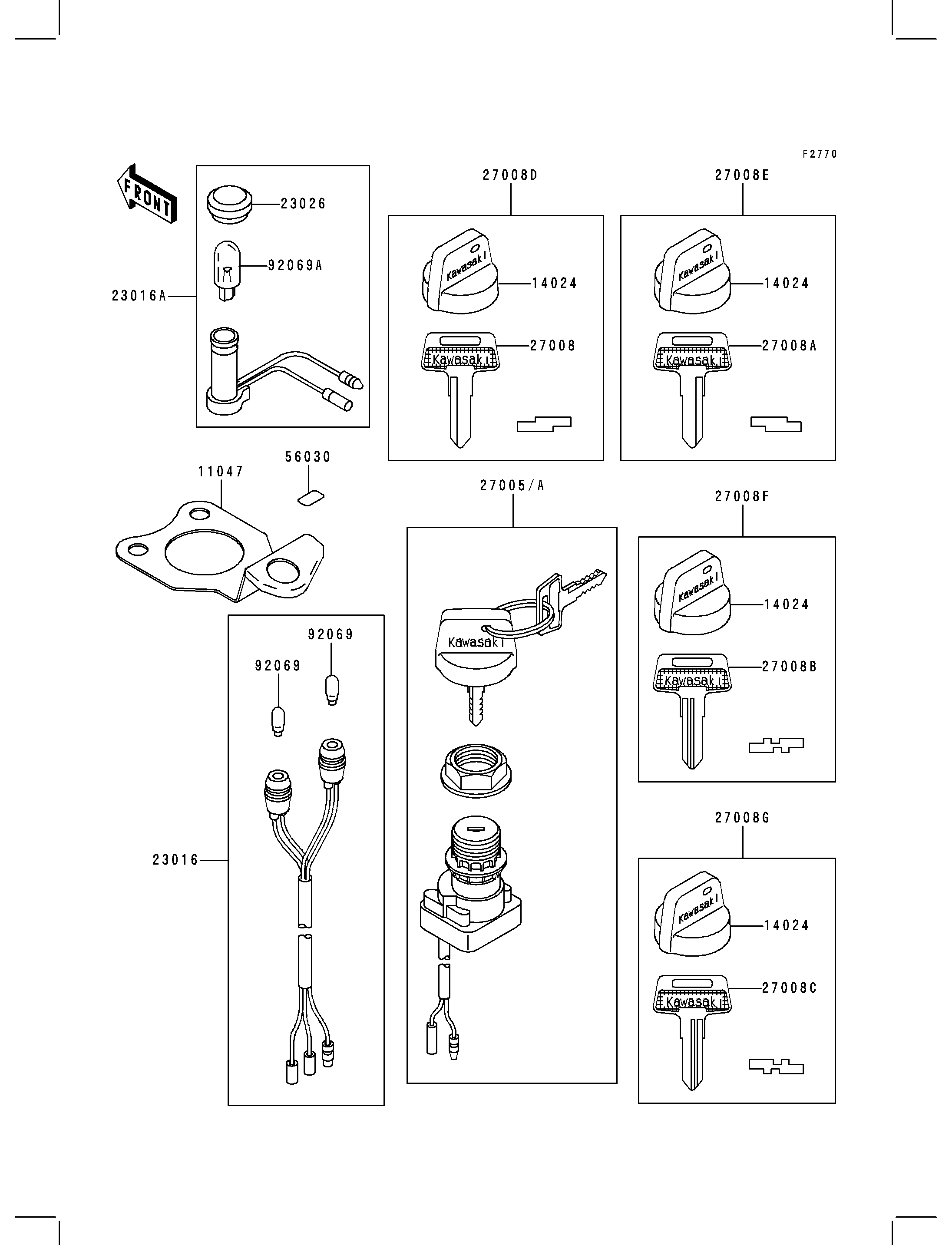

1997 Bayou 400 4X4 (Canada Only) - Ignition Switch
14024
14024
14024
14024
23016
27005A
27008
27008A
27008B
27008C
27008D
27008E
27008F
27008G
92069
92069
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,KEY | 14024 | 14024-1551 | 4 | (OPTION) | |
| LAMP-ASSY,NEUTRAL&REVERSE | 23016 | 23016-1083 | 1 | ||
| SWITCH-ASSY-IGNITION | 27005A | 27005-1201 | 1 | ||
| KEY-LOCK,BLANK | 27008 | 27008-1041 | 1 | (OPTION) | |
| KEY-LOCK,BLANK | 27008A | 27008-1042 | 1 | (OPTION) | |
| KEY-LOCK,BLANK | 27008B | 27008-1043 | 1 | (OPTION) | |
| KEY-LOCK,BLANK | 27008C | 27008-1044 | 1 | (OPTION) | |
| KEY-LOCK,BLANK | 27008D | 27008-1132 | 1 | (OPTION) | |
| KEY-LOCK,BLANK | 27008E | 27008-1133 | 1 | (OPTION) | |
| KEY-LOCK,BLANK | 27008F | 27008-1134 | 1 | (OPTION) | |
| KEY-LOCK,BLANK | 27008G | 27008-1135 | 1 | (OPTION) | |
| BULB,12V3W T-7 | 92069 | 92069-1020 | 2 | ||
| BRACKET,TEMP LAMP | 11047 | 11047-1661 | 1 | ||
| LAMP-ASSY,TEMP | 23016A | 23016-1133 | 1 | ||
| LENS,PILOT,RED | 23026 | 23026-1105 | 1 | ||
| LABEL,TEMP | 56030 | 56030-1146 | 1 | ||
| BULB,12V 1.7W | 92069A | 92069-1059 | 1 |
