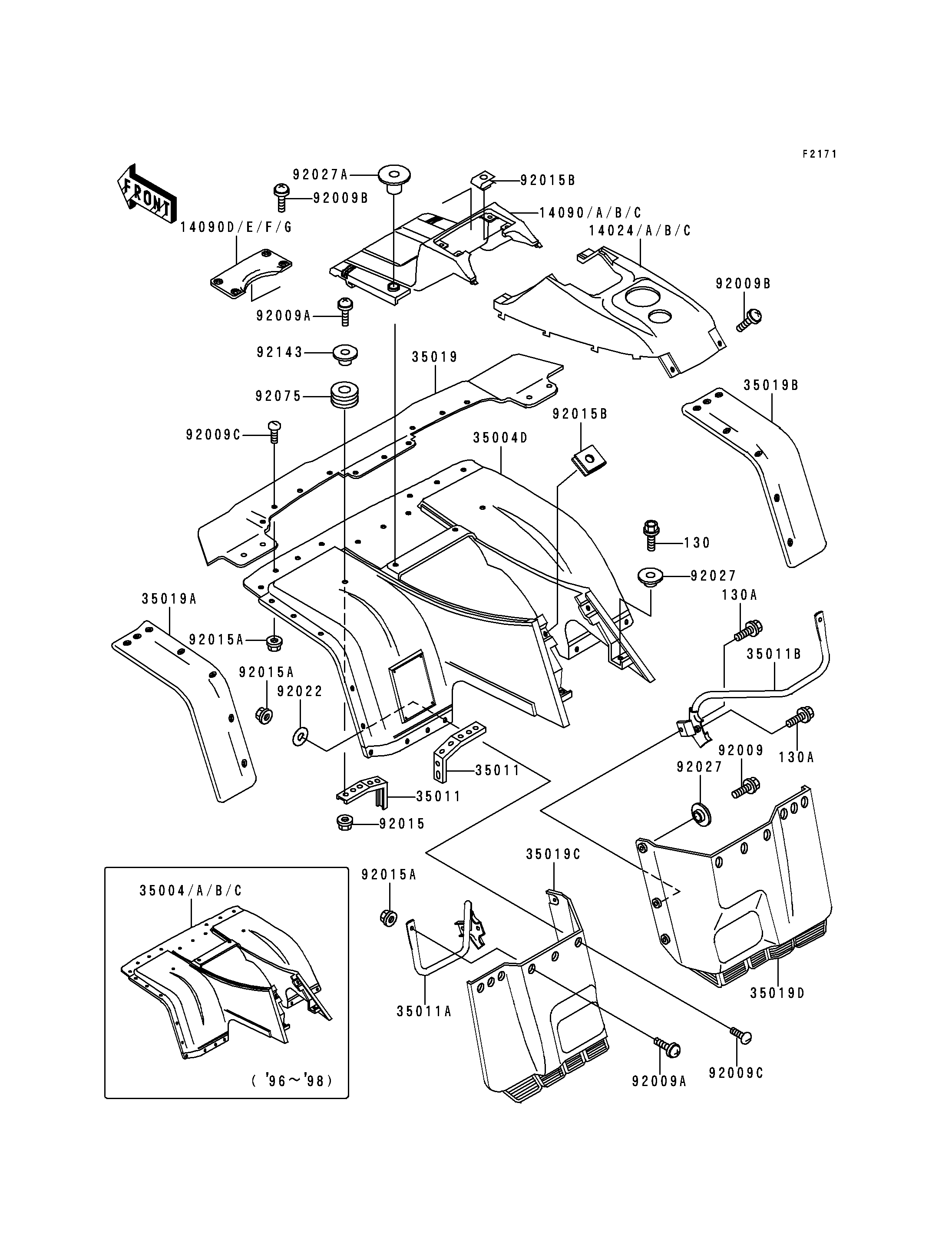

1997 Bayou 400 4X4 (Canada Only) - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
14024A
14024C
14090A
14090C
14090E
14090G
35004
35004C
35011
35011
35011A
35011B
35019
35019A
35019B
35019C
35019D
92009
92009A
92009A
92009B
92009B
92009C
92009C
92015
92015A
92015A
92015A
92015B
92015B
92022
92027
92027
92027A
92075
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130C0616 2
BOLT-FLANGED,6X18 130A 130J0618 8
COVER,FRONT FENDER,RR,GREEN 14024A 14024-1657-59 1
COVER,FRONT FENDER,RR,F.RED 14024C 14024-1657-6L 1
COVER,FRONT FENDER,FR,GREEN 14090A 14090-1143-59 1
COVER,FRONT FENDER,FR,F.RED 14090C 14090-1143-6L 1
COVER,FRONT CAP,GREEN 14090E 14090-1156-59 1
COVER,FRONT CAP,F.RED 14090G 14090-1156-6L 1
FENDER-FRONT,F.GREEN 35004 35004-1293-59 1
FENDER-FRONT,F.C.RED 35004C 35004-1293-6L 1
STAY,FRONT FENDER,UPP 35011 35011-1420 2
STAY,FR FENDER,LH,LWR FLAP 35011A 35011-1600 1
STAY,FR FENDER,RH,LWR FLAP 35011B 35011-1601 1
FLAP,FR,BLACK 35019 35019-1291-6Z 1
FLAP,FR,SIDE,LH,BLACK 35019A 35019-1292-6Z 1
FLAP,FR,SIDE,RH,BLACK 35019B 35019-1293-6Z 1
FLAP,FR,LWR,LH,BLACK 35019C 35019-1294-6Z 1
FLAP,FR,LWR,RH,BLACK 35019D 35019-1295-6Z 1
SCREW 92009 92009-1166 2
SCREW,6X22,BLACK 92009A 92009-1256 10
SCREW,6X14 92009B 92009-1288 6
SCREW,6X16 92009C 92009-1621 29
NUT,FLANGED,6MM,BLACK 92015 92015-1233 2
NUT,LOCK,FLANGED,6MM 92015A 92015-1675 37
NUT,CLAMP,6MM 92015B 92015-1678 6
WASHER,6.5X16X1.0 92022 92022-1093 37
COLLAR,L=4.7 92027 92027-122 8
COLLAR 92027A 92027-1929 2
DAMPER,CASE 92075 92075-222 2
COLLAR,L=9.6 92143 92143-1016 2
