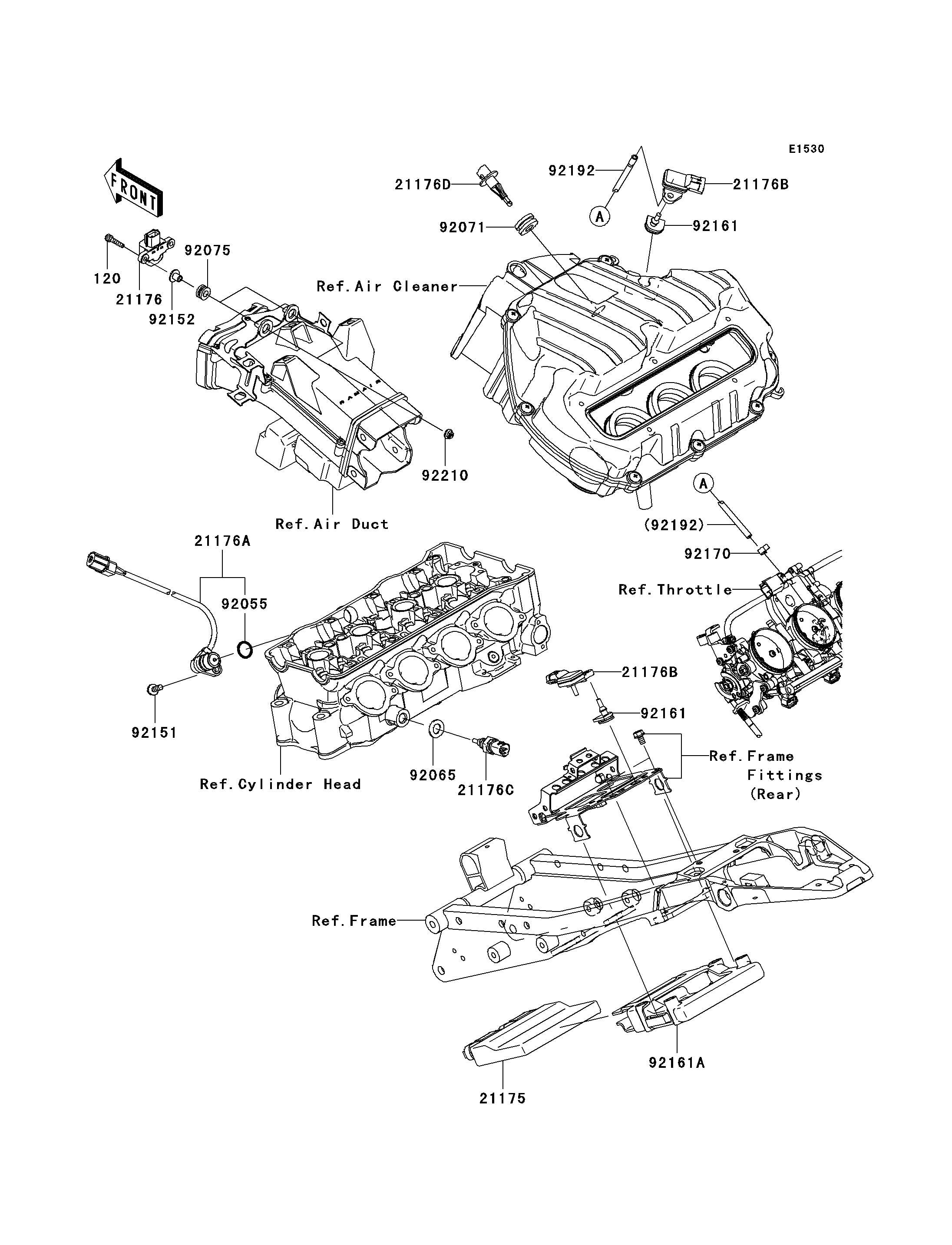

2008 Ninja® ZX™-6R - Fuel Injection

DOWNLOAD PDF
SELECT A NEW PART
120
21175
21176
21176A
21176B
21176B
21176C
21176D
92055
92065
92071
92075
92151
92152
92161
92161
92161A
92170
92192
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X22 120 120CB0522 2
CONTROL UNIT-ELECTRONIC 21175 21175-0111 1
SENSOR,VEHICLE-DOWN 21176 21176-0026 1
SENSOR,CAM 21176A 21176-0034 1
SENSOR,PRESSURE 21176B 21176-0058 2
SENSOR,WATER TEMP 21176C 21176-1120 1
SENSOR,AIR TEMP 21176D 21176-2106 1
RING-O 92055 92055-1639 1
GASKET,12X22X2 92065 92065-097 1
GROMMET,10.9X25X11.6 92071 92071-0033 1
DAMPER 92075 92075-1912 2
BOLT,FLANGED,6X16 92151 92151-1774 1
COLLAR 92152 92152-0134 2
DAMPER 92161 92161-0041 2
DAMPER,ECU 92161A 92161-0381 1
CLAMP,HOSE 92170 92170-1128 1
TUBE,L=300MM 92192 92192-0352 1
NUT,FLANGED,5MM 92210 92210-0007 2
