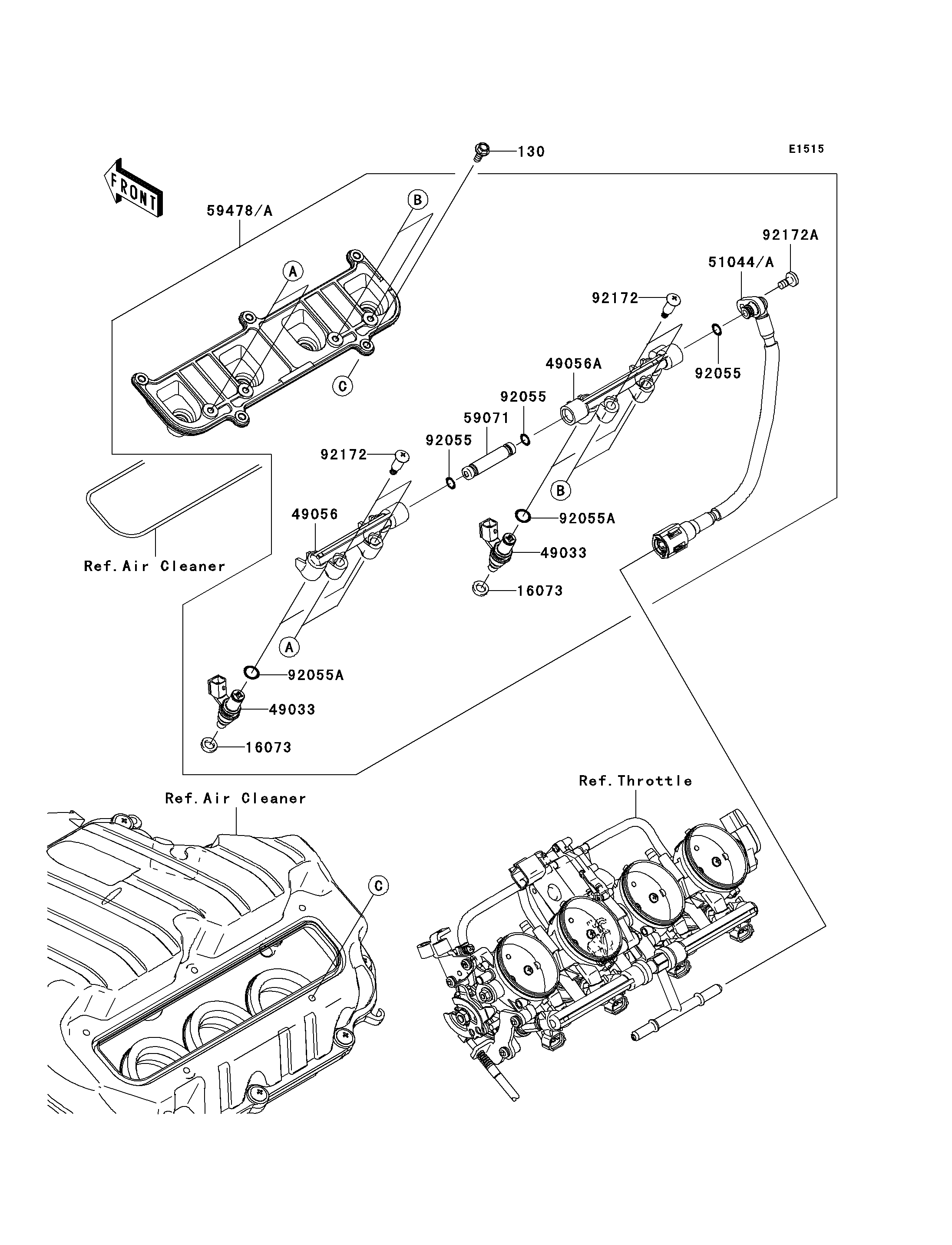

2008 Ninja® ZX™-6R - Top Feed Injecter
130
16073
16073
49033
49033
49056
49056A
51044A
59071
59478A
92055
92055
92055
92055A
92055A
92172
92172
92172A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,5X14 | 130 | 130BB0514 | 5 | ||
| INSULATOR | 16073 | 16073-0077 | 4 | ||
| NOZZLE-INJECTION | 49033 | 49033-0015 | 4 | ||
| PIPE-INJECTION,LH | 49056 | 49056-0015 | 1 | ||
| PIPE-INJECTION,RH | 49056A | 49056-0016 | 1 | ||
| TUBE-ASSY,FUEL | 51044A | 51044-0043 | 1 | ||
| JOINT | 59071 | 59071-0034 | 1 | ||
| NOZZLE-ASSY,TOP INJECTOR | 59478A | 59478-0005 | 1 | ||
| RING-O | 92055 | 92055-0064 | 3 | ||
| RING-O | 92055A | 92055-0170 | 4 | ||
| SCREW,PIPE INJECTION | 92172 | 92172-0064 | 4 | ||
| SCREW,TORX | 92172A | 92172-0272 | 1 |
