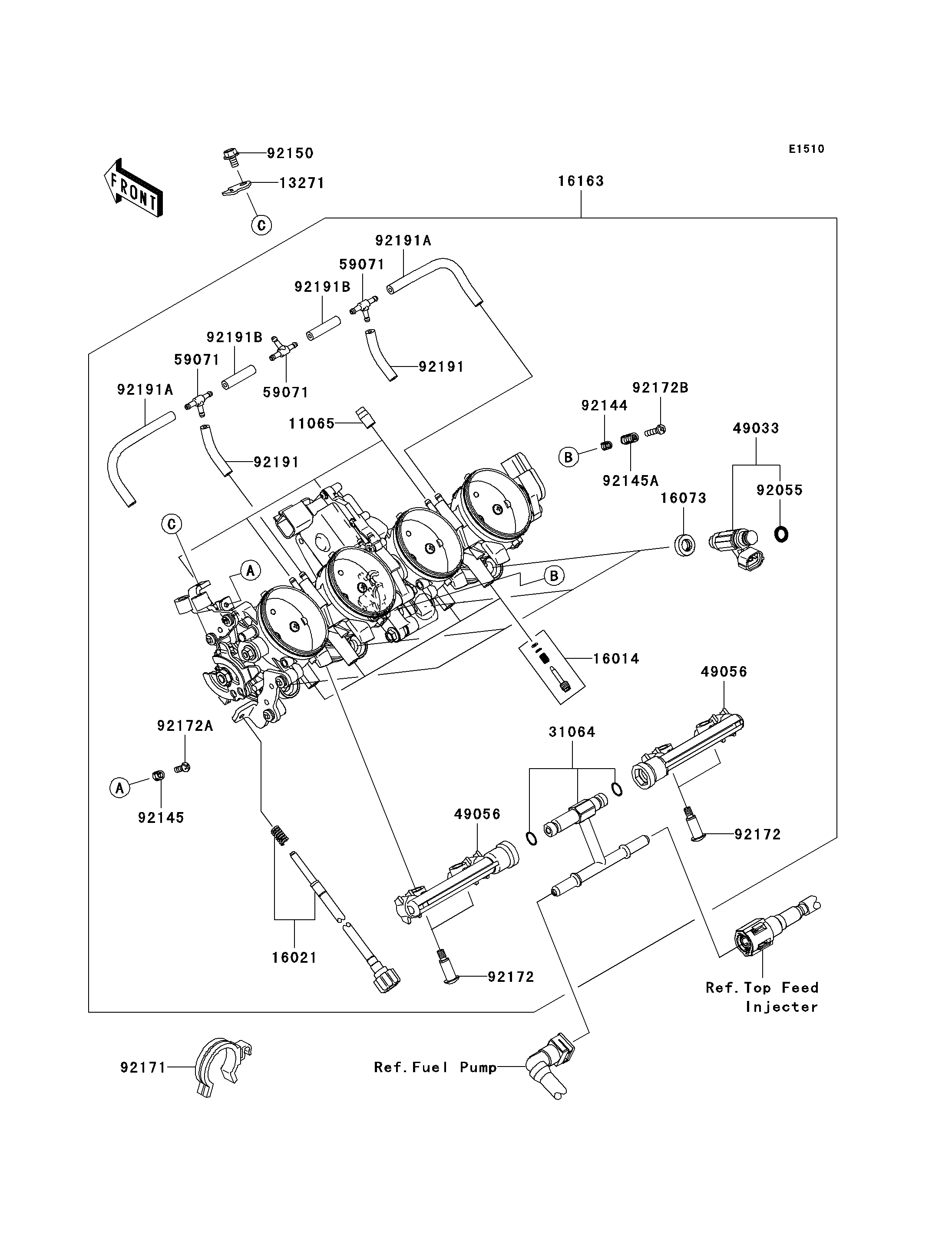

2008 Ninja® ZX™-6R - Throttle

DOWNLOAD PDF
SELECT A NEW PART
11065
13271
16014
16021
16073
16163
31064
49033
49056
49056
59071
59071
59071
92055
92144
92145
92145A
92150
92171
92172
92172
92172A
92172B
92191
92191
92191A
92191A
92191B
92191B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0018 4
PLATE 13271 13271-0559 1
SCREW-PILOT AIR 16014 16014-0002 4
SCREW-THROTTLE STOP 16021 16021-0014 1
INSULATOR 16073 16073-3707 4
THROTTLE-ASSY,TTK38 16163 16163-0085 1
PIPE-COMP,FUEL 31064 31064-0023 1
NOZZLE-INJECTION 49033 49033-0013 4
PIPE-INJECTION 49056 49056-0014 2
JOINT,3WAY,T 59071 59071-3752 3
RING-O,INJECTION NOZZLE 92055 92055-1622 4
SPRING 92144 92144-1451 1
SPRING 92145 92145-0294 1
SPRING,THROTTLE SYNCRO 92145A 92145-0510 1
BOLT,5X8 92150 92150-1406 1
CLAMP 92171 92171-0359 1
SCREW,PIPE INJECTION 92172 92172-0064 4
SCREW 92172A 92172-0129 1
SCREW,THROTTLE SYNCRO 92172B 92172-0309 1
TUBE,3X7X40 92191 92191-0022 2
TUBE,3X7X100 92191A 92191-0023 2
TUBE,3X7X30 92191B 92191-0025 2
