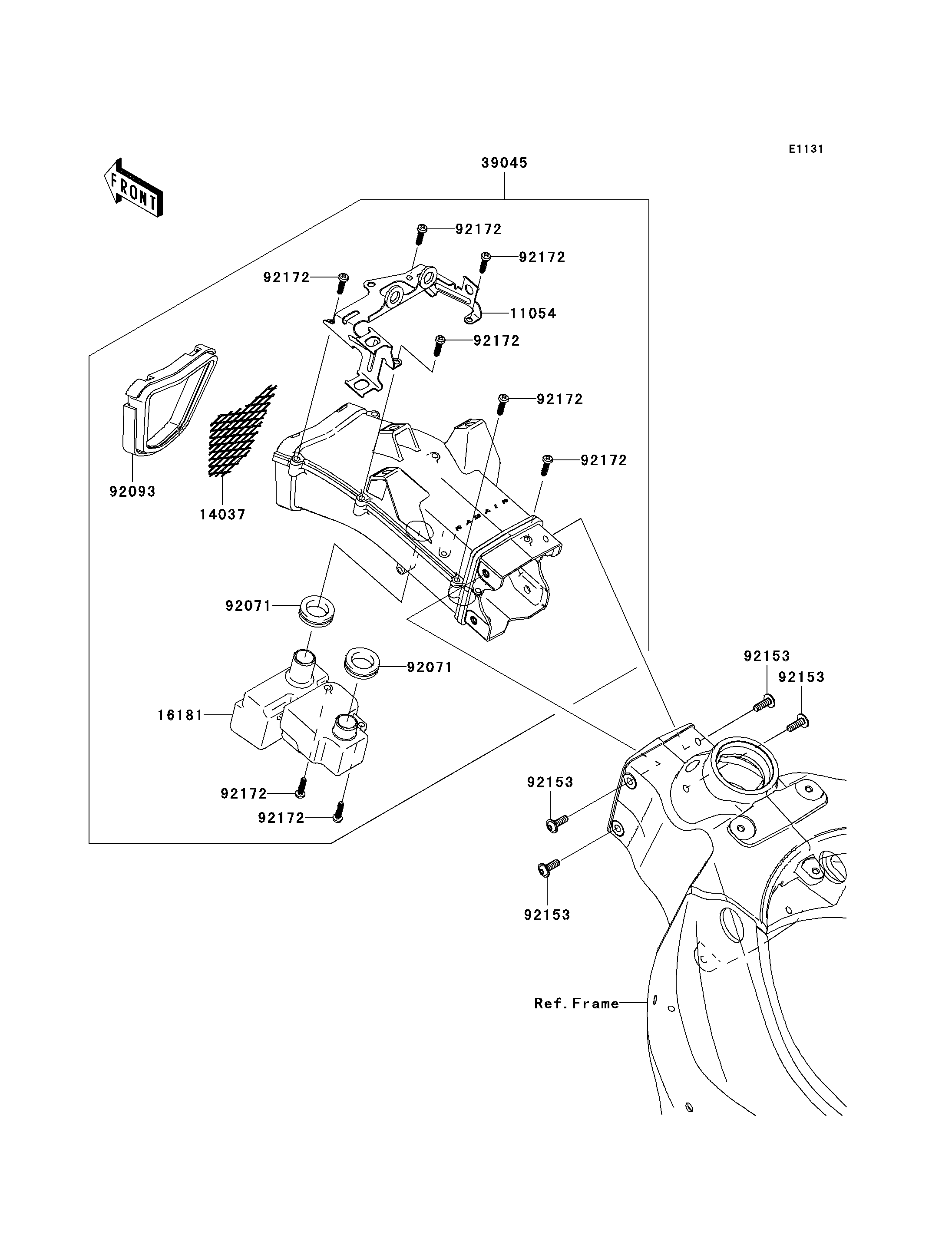

Parts Diagrams |
11054
14037
16181
39045
92071
92071
92093
92153
92153
92153
92153
92172
92172
92172
92172
92172
92172
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11054 | 11054-0753 | 1 | ||
| SCREEN | 14037 | 14037-0081 | 1 | ||
| TANK-RESONATOR | 16181 | 16181-0011 | 1 | ||
| DUCT-ASSY,RAM | 39045 | 39045-0030 | 1 | ||
| GROMMET | 92071 | 92071-3704 | 2 | ||
| SEAL | 92093 | 92093-0068 | 1 | ||
| BOLT,6X18 | 92153 | 92153-0875 | 4 | ||
| SCREW,TAPPING,5X20 | 92172 | 92172-0009 | 8 |
| BRACKET | |
| REF # | 11054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREEN | |
| REF # | 14037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-RESONATOR | |
| REF # | 16181 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT-ASSY,RAM | |
| REF # | 39045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X18 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X20 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
